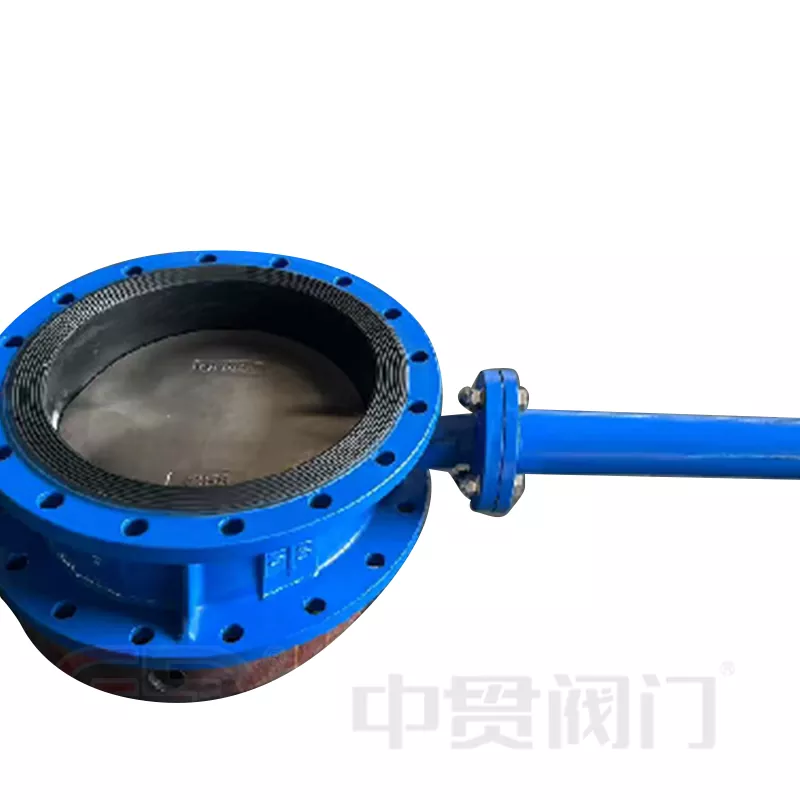

How Does an Extended Stem Butterfly Valve Compare to a Rising Stem Gate Valve

When selecting flow control devices for buried or high-reach pipeline systems, engineers often debate between an Extended Stem Butterfly Valve and a rising stem gate valve. Zhongguan, a trusted name in industrial valve manufacturing, provides clarity on this comparison. Both valves serve isolation purposes, but their design, operation, and application suitability differ significantly.

Design and Construction Differences

Operational Efficiency

The Extended Stem Butterfly Valve requires only a quarter turn from fully closed to fully open. This allows rapid shutoff. A rising stem gate valve needs many handwheel rotations. For emergency isolation, the butterfly valve is superior. Additionally, the extended stem eliminates the need for expensive valve box extensions or deep vaults, reducing civil construction costs by up to 30% according to field data from Zhongguan installations.

Durability in buried service is another factor. The Extended Stem Butterfly Valve seals the stem packing at the top of the extension, well above potential debris or standing water. Gate valves often have packing at the bonnet, which can be submerged and fail earlier.

Extended Stem Butterfly Valve FAQ

Q1: Can an Extended Stem Butterfly Valve handle the same pressure as a rising stem gate valve?

A1: Not always at the highest classes. Standard Zhongguan Extended Stem Butterfly Valve models perform excellently up to Class 300 (740 psi). Rising stem gate valves can reach Class 2500. For most municipal water and wastewater lines (up to 300 psi), the Extended Stem Butterfly Valve is more than adequate. For high-pressure steam or oil transmission, a gate valve may be required. Zhongguan offers pressure ratings clearly marked on every unit for safety.

Q2: Does an Extended Stem Butterfly Valve provide a bidirectional seal like a gate valve?

A2: Yes, a quality Extended Stem Butterfly Valve from Zhongguan provides a bidirectional bubble-tight shutoff. However, the sealing mechanism differs. The butterfly valve uses an elastomer liner compressed by the disc. The gate valve uses two metal seats. The butterfly valve is more tolerant of minor debris but less tolerant of high-temperature cycling above 200°C (392°F). For ambient water and mild chemicals, the Extended Stem Butterfly Valve seals as well or better than a gate valve.

Q3: How does the maintenance cost of an Extended Stem Butterfly Valve compare to a rising stem gate valve over 10 years?

A3: Much lower. An Extended Stem Butterfly Valve has fewer internal parts – no wedge, bonnet gasket, or rising stem threads exposed to corrosion. Zhongguan field studies show that the Extended Stem Butterfly Valve requires inspection every two years, while gate valves often need repacking or seat grinding annually in dirty media. Replacement parts for the butterfly valve (liner or disc) are also 40-60% less expensive. For buried lines, the extended stem eliminates costly excavation to access the valve body.

Which One Should You Specify?

Choose an Extended Stem Butterfly Valve when:

• The valve is buried more than 500 mm (20 inches) below ground.

• Quick operation (quarter turn) is needed.

• Low pressure drop and energy efficiency matter.

• Budget and lifecycle cost are critical.

Choose a rising stem gate valve only when:

• Pressure exceeds Class 300.

• Fluid temperature is above 200°C continuously.

• Linear flow characteristic is mandated by internal standards.
