How Does a Thermal Expansion Valve For Cold Storage Improve Refrigeration Performance?
2026-07-16
Cold storage systems play a vital role in preserving food, pharmaceuticals, chemicals, and other temperature-sensitive products. Maintaining a stable and accurate temperature inside a cold storage room requires not only a reliable refrigeration compressor and evaporator but also a high-performance control component that regulates refrigerant flow. A Thermal Expansion Valve For Cold Storage is one of the most important parts of modern refrigeration systems because it controls the amount of refrigerant entering the evaporator, ensuring efficient heat absorption and stable cooling performance.
As cold storage applications become more demanding, refrigeration equipment needs to operate with higher precision, lower energy consumption, and improved reliability. Choosing the right thermal expansion valve can directly influence system efficiency, product safety, and long-term operating costs. Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. specializes in manufacturing high-quality refrigeration control components, providing reliable solutions for different cold storage refrigeration requirements.
What Is a Thermal Expansion Valve For Cold Storage?
A Thermal Expansion Valve For Cold Storage is an automatic refrigeration control device installed between the condenser and evaporator. Its main function is to regulate refrigerant flow according to the cooling load and evaporator conditions.
In a cold storage refrigeration cycle, liquid refrigerant from the condenser enters the expansion valve. The valve reduces refrigerant pressure and controls the quantity of refrigerant supplied to the evaporator. This process allows the refrigerant to absorb heat efficiently and maintain the required cold storage temperature.
Unlike simple throttling devices, a thermal expansion valve can automatically adjust refrigerant flow based on temperature changes. This makes it especially suitable for cold rooms, refrigerated warehouses, food processing facilities, and industrial refrigeration systems.

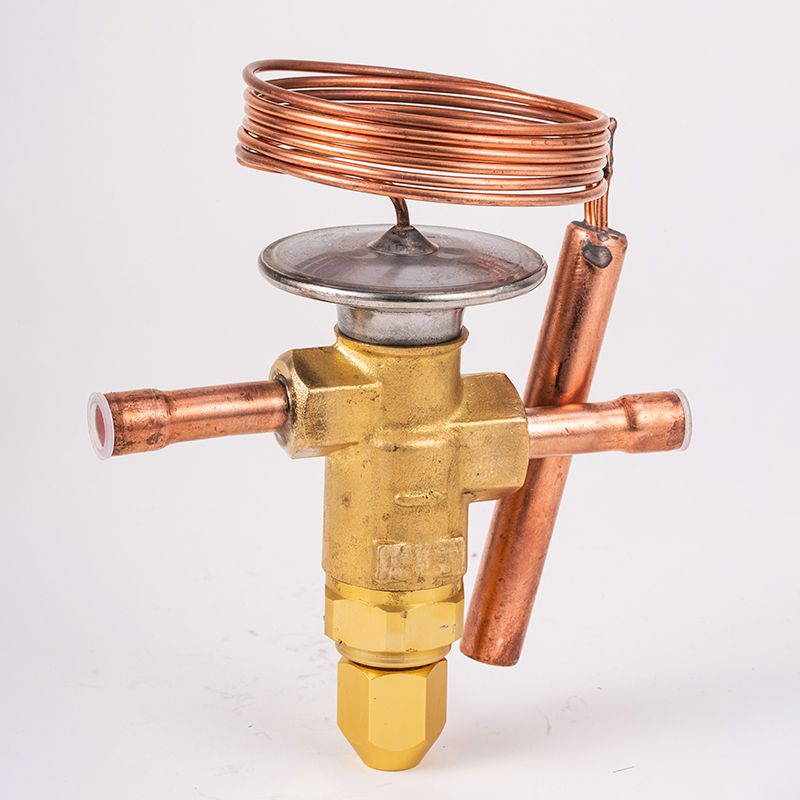

Main Components of a Thermal Expansion Valve
| Component | Function |
|---|---|
| Temperature sensing bulb | Detects evaporator outlet temperature |
| Diaphragm | Controls valve opening movement |
| Spring mechanism | Adjusts pressure balance |
| Valve needle and seat | Regulates refrigerant flow |
| Adjustment screw | Controls superheat settings |
A properly designed expansion valve ensures that the evaporator receives the correct amount of refrigerant without causing liquid refrigerant return to the compressor.
Why Is a Thermal Expansion Valve Important in Cold Storage Systems?
Cold storage environments require extremely stable temperature control. Small temperature fluctuations can affect product quality, increase energy consumption, or even cause significant economic losses.
A high-quality Thermal Expansion Valve For Cold Storage provides several important advantages:
1. Maintaining Accurate Temperature Control
The expansion valve continuously adjusts refrigerant supply according to actual cooling demand. When the cold storage temperature changes, the valve responds automatically to maintain stable operation.
For example:
- During high cooling loads, the valve increases refrigerant flow.
- During low cooling loads, the valve reduces refrigerant supply.
- During temperature recovery after door opening, the valve quickly adapts to increased demand.
This precise adjustment helps cold storage systems maintain consistent temperatures.
2. Improving Energy Efficiency
An improperly controlled refrigerant flow can cause refrigeration systems to consume excessive power. Too little refrigerant reduces cooling capacity, while too much refrigerant may decrease compressor efficiency.
A thermal expansion valve helps optimize evaporator performance, allowing the compressor and other components to operate more efficiently.
3. Protecting the Compressor
Liquid refrigerant entering the compressor can cause serious damage. The expansion valve controls refrigerant evaporation and ensures sufficient superheated vapor reaches the compressor.
This protection extends equipment service life and reduces maintenance costs.
How Does a Thermal Expansion Valve Work?
The working principle of a thermal expansion valve is based on pressure balance and temperature sensing.
The sensing bulb attached to the evaporator outlet detects refrigerant temperature. When the temperature rises, the pressure inside the sensing bulb increases, pushing the diaphragm downward and opening the valve to allow more refrigerant flow.
When the evaporator temperature decreases, the sensing pressure reduces, and the valve closes slightly to decrease refrigerant supply.
The basic operation process includes:
- Refrigerant enters the expansion valve
- Valve reduces refrigerant pressure
- Controlled refrigerant enters the evaporator
- Refrigerant absorbs heat from the cold storage area
- Superheated vapor returns safely to the compressor
This automatic regulation allows refrigeration systems to achieve better cooling stability and efficiency.
Main Benefits and Using Effects of Thermal Expansion Valves
A reliable Thermal Expansion Valve For Cold Storage can significantly improve refrigeration system performance.
Key Benefits
| Benefit | Description |
|---|---|
| Stable cooling | Maintains accurate temperature levels |
| Energy saving | Reduces unnecessary compressor operation |
| Compressor protection | Prevents liquid refrigerant damage |
| High adaptability | Works under different cooling loads |
| Longer system lifespan | Reduces component stress |
Practical Application Effects
In commercial and industrial cold storage facilities, thermal expansion valves help achieve:
- Faster temperature recovery after frequent door opening
- Better humidity control for stored products
- Reduced refrigeration operating costs
- Improved overall system reliability
- More consistent product preservation conditions
For industries such as food storage, medicine transportation, and chemical refrigeration, these advantages are essential.
How to Choose the Right Expansion Valve for Cold Storage?
Selecting a suitable expansion valve requires considering several factors, including refrigeration capacity, refrigerant type, operating temperature, and system design.
Important selection criteria include:
1. Refrigerant Compatibility
Different refrigeration systems use different refrigerants. The valve material and design must match the refrigerant characteristics to ensure reliable operation.
2. Cooling Capacity Requirements
The expansion valve capacity should match the evaporator load. An oversized or undersized valve may reduce system efficiency.
3. Operating Temperature Range
Cold storage applications may require different temperature levels:
- Chilled storage: approximately 0°C to 10°C
- Frozen storage: approximately -18°C to -25°C
- Ultra-low temperature storage: below -40°C
The valve should be selected according to the required temperature environment.
4. Product Quality and Manufacturing Precision
High-quality manufacturing directly affects valve sealing performance, adjustment accuracy, and service life. Professional suppliers with advanced production technology can provide more dependable refrigeration solutions.
Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. focuses on refrigeration automatic control components with strict quality standards. The company provides reliable thermal expansion valves and related refrigeration solutions for various applications.
Thermal Expansion Valve vs Other Refrigerant Control Methods
Different refrigerant control devices have different advantages. Comparing them helps users select the most suitable solution.
| Control Device | Advantages | Limitations |
|---|---|---|
| Thermal Expansion Valve | Accurate control, high efficiency, suitable for variable loads | Requires proper adjustment |
| Capillary Tube | Simple structure, low cost | Limited control accuracy |
| Electronic Expansion Valve | Very precise, intelligent control | Higher system cost |
| Fixed Orifice | Easy installation | Poor adaptability |
For professional cold storage systems requiring stable temperature management, thermal expansion valves are often preferred because they provide automatic adjustment and reliable performance.
Applications of Thermal Expansion Valve For Cold Storage
Thermal expansion valves are widely used in many refrigeration fields, including:
- Cold storage warehouses
- Food processing facilities
- Seafood refrigeration systems
- Pharmaceutical storage rooms
- Supermarket refrigeration equipment
- Industrial cooling systems
- Agricultural product preservation facilities
Their ability to maintain accurate refrigerant control makes them an essential component for modern refrigeration technology.
FAQ About Thermal Expansion Valve For Cold Storage
Q1: What is the main function of a thermal expansion valve in cold storage?
The main function is to regulate refrigerant flow into the evaporator according to cooling demand, ensuring efficient heat exchange and stable temperature control.
Q2: How often should a thermal expansion valve be replaced?
The service life depends on operating conditions, maintenance quality, and system design. Regular inspection is recommended to identify problems such as refrigerant leakage or unstable cooling performance.
Q3: Can one thermal expansion valve fit all cold storage systems?
No. Different systems require different valve sizes, refrigerant compatibility, and capacity ratings. Proper selection is necessary for optimal performance.
Q4: Why choose a high-quality thermal expansion valve?
A high-quality valve provides better flow control, improved energy efficiency, reduced compressor risk, and longer refrigeration system life.
Conclusion
A Thermal Expansion Valve For Cold Storage is a critical component that directly affects refrigeration efficiency, temperature stability, and equipment reliability. By accurately controlling refrigerant flow, it helps cold storage systems achieve better cooling performance while reducing energy consumption and maintenance requirements.
With professional manufacturing experience and advanced refrigeration control technology, Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. provides dependable thermal expansion valve solutions designed for various cold storage applications. Whether you need refrigeration components for commercial, industrial, or customized systems, choosing the right supplier can make a significant difference in long-term performance.
For high-quality refrigeration automatic control components and professional support, contact us today. Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. is ready to provide reliable solutions to help your cold storage refrigeration systems operate more efficiently and safely.
