How Does a Telescopic Design Enhance the Performance of Butterfly Valves
2026-03-10

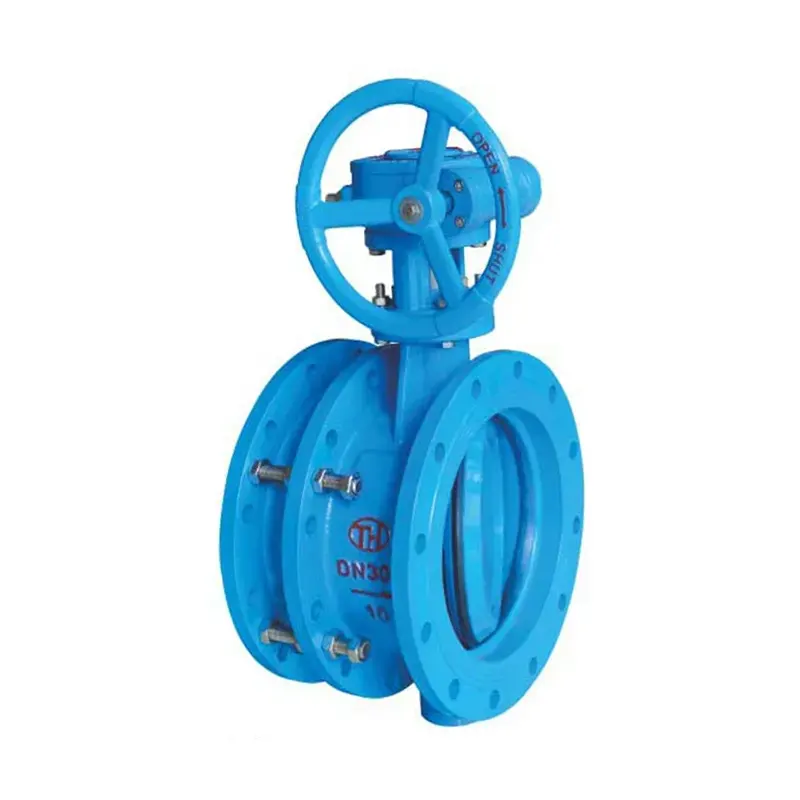

In the demanding field of fluid control, the efficiency of water distribution networks often hinges on the adaptability of their components. The Tianhong telescopic butterfly valve for water supply represents a significant engineering evolution, combining the shut-off capability of a standard butterfly valve with the flexibility of a expansion joint. This integration solves critical alignment issues while maintaining robust flow control, making it an indispensable asset for modern infrastructure projects.
The Mechanical Advantage of Telescoping Functionality
Standard butterfly valves are rigid components. If the pipeline shifts due to thermal expansion or ground settlement, immense stress transfers directly to the valve body and flanges, leading to cracks or leaks. The telescopic design eliminates this risk through a sliding mechanism.
Here is how the telescopic feature specifically enhances operational performance:
-
Stress Mitigation: The telescopic sleeve absorbs tensile and compressive forces, protecting the valve body from pipeline strain.
-
Simplified Installation: Engineers can adjust the valve’s length to fit precisely between existing pipe flanges, eliminating the need for precise cutting.
-
Ease of Maintenance: By retracting the telescopic end, operators create a gap for easy access to the valve seat and disc without dismantling the entire pipeline.
Technical Specifications and Materials
To ensure longevity in water applications, the materials used must resist corrosion and wear. Tianhong engineers these units to balance strength with flexibility. The table below outlines the typical construction and benefits:
| Component | Material Options | Functional Benefit |
|---|---|---|
| Body & Disc | Ductile Iron / Stainless Steel | High tensile strength and corrosion resistance. |
| Telescopic Sleeve | Ductile Iron with F55 Epoxy Coating | Smooth axial movement and protection against rust. |
| Seal (Valve) | EPDM / NBR | Tight shut-off and resistance to water treatment chemicals. |
| Seal (Telescopic) | Multi-layered O-Rings or Gland Packing | Prevents external leakage during axial extension. |
Frequently Asked Questions
To further clarify the utility of this technology, here are answers to common industry queries regarding the telescopic butterfly valve for water supply.
Q: How does a telescopic butterfly valve compensate for pipeline expansion differently than a standard expansion joint?
A: While a standard expansion joint solely handles length changes, a telescopic butterfly valve for water supply combines two functions into one unit. The telescopic section absorbs the thermal expansion or contraction of the pipes, while the integrated butterfly component regulates flow. This dual action reduces the number of flange connections required, minimizing potential leak points and saving space in valve chambers.
Q: What are the limitations regarding axial movement in these valves?
A: The axial movement capacity varies by design and size, but typically ranges from 50mm to 100mm. This allowance is sufficient to absorb thermal expansion in most buried or above-ground pipelines. It is crucial to consult the Tianhong technical datasheet for your specific valve size to ensure the planned expansion does not exceed the sleeve’s travel limit, which would compromise the seal integrity.
Q: Can this valve be installed vertically in a pipeline?
A: Yes, the telescopic butterfly valve for water supply can be installed in vertical pipelines, but orientation matters. For vertical installation with flow direction upward, it is recommended to install the valve with the disc in a closed position before the pipeline is filled to prevent uneven pressure on the sealing surfaces. The telescopic function remains fully operational regardless of orientation, as the sliding mechanism is mechanically actuated and not gravity-dependent.
Why Choose Tianhong for Flow Control Solutions
Selecting the right valve impacts long-term operational costs and system reliability. Tianhong utilizes precision casting and advanced rubber bonding technology to ensure that the telescopic action remains smooth and leak-free for decades. Our quality control processes ensure that every unit meets international standards for pressure retention and material purity.
By integrating the telescopic feature directly into the butterfly valve assembly, we help engineers design systems that are resilient to ground movement and thermal stress without the complexity of multiple components.
For detailed drawings, sizing calculations, or to request a quote for your next waterworks project, please contact our technical sales team today. Let Tianhong help you build a more adaptable and reliable fluid handling system.
