How Does a Deluge Alarm Valve Improve Fire Protection for High-Risk Applications?
2026-09-21
A reliable fire suppression system must respond quickly when a fire develops, especially in areas where flames can spread rapidly or where valuable equipment, cargo, and personnel require immediate protection. A Deluge Alarm Valve serves as a critical control component in a deluge system by keeping the water supply isolated during normal conditions and releasing water rapidly when the detection or activation system operates. Unlike conventional sprinkler arrangements that may activate individual sprinklers, a deluge system can deliver water through multiple open outlets across a protected zone at the same time.
For industrial facilities, offshore applications, marine equipment, warehouses, and other high-risk environments, selecting the appropriate valve requires attention to flow capacity, pressure, actuation method, corrosion resistance, installation conditions, and system configuration. Fuxeon Fire-Fighting Technology Co.,Ltd. provides Deluge Alarm Valve solutions with multiple specifications and customized options, including solutions designed around specialized ship-type customization requirements.
What Is a Deluge Alarm Valve?

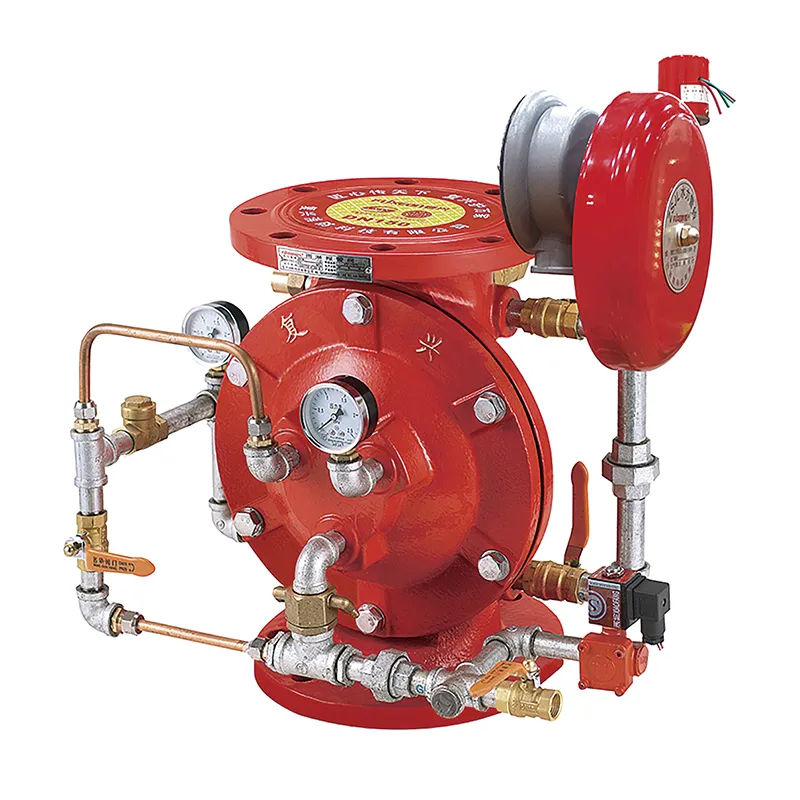

A Deluge Alarm Valve is a control valve used in fire protection systems to regulate the release of fire water. In a typical standby condition, the valve remains closed while the downstream deluge piping is isolated from the water supply. When the detection and release mechanism is triggered, the control pressure changes and the valve opens, allowing water to enter the system.
Once activated, the valve can support rapid water distribution through open spray nozzles or other discharge devices. This makes the system particularly suitable for environments where a localized fire can quickly become a large-scale hazard.
Typical Applications
- Industrial plants and production facilities
- Flammable and explosive storage areas
- Warehouses and logistics facilities
- Offshore platforms and marine equipment
- Ship fire protection systems
- Water curtain systems
- High-risk equipment protection
- Specialized fire suppression installations
Marine and offshore applications can require particularly careful valve selection because equipment must operate within restricted spaces and potentially corrosive environments. Marine deluge valves are used for water or foam fire protection piping aboard vessels, demonstrating the importance of adapting fire protection equipment to marine operating conditions.
How Does the Valve Work?
The basic operating principle relies on maintaining control pressure while the system is in standby mode. When a fire detection signal or other approved release mechanism is activated, the control chamber is released, allowing the main valve to open.
A simplified operating sequence is:
- Standby: The valve remains closed and separates the water supply from the downstream system.
- Fire detection: A detection or release device identifies a fire condition.
- Activation: Hydraulic, pneumatic, electrical, or other control mechanisms initiate valve operation.
- Valve opening: Control pressure is released or changed.
- Water discharge: Water enters the deluge piping and reaches the open discharge devices.
- Alarm: The system provides an alarm indication to notify operators of activation.
Different systems can use different activation arrangements, including manual, hydraulic, pneumatic, or electrically controlled configurations.
Why Is a Deluge Alarm Valve Important?
The primary advantage of a Deluge Alarm Valve is its ability to coordinate rapid water release across a designated protection zone. In high-hazard environments, the time between fire detection and suppression can have a major impact on the extent of equipment damage and operational interruption.
A properly selected valve can contribute to:
| Key Function | Practical Benefit |
|---|---|
| Rapid water release | Helps deliver suppression water quickly |
| Flow control | Regulates water entering the protected zone |
| Alarm activation | Provides an indication of system operation |
| System isolation | Keeps the suppression network controlled during standby |
| Flexible actuation | Supports different detection and control configurations |
| Customized installation | Allows adaptation to specialized system requirements |
The valve therefore functions as more than a simple shut-off component. It connects the detection, control, alarm, and water-distribution stages of a complete fire protection system.
What Should Buyers Consider When Selecting One?
Different projects have different operating conditions. Choosing a Deluge Alarm Valve solely by nominal diameter may therefore be insufficient.
Important factors include:
1. Working Pressure
The valve should match the pressure requirements of the complete fire protection system. Fuxeon currently lists ZSFM models with a working pressure range of 0.14–1.6 MPa, with multiple connection sizes available.
2. Connection Size
Available sizes need to correspond with the piping network, flow requirements, and installation layout. Fuxeon's listed models range from smaller systems to larger DN300 configurations.
3. Actuation Method
The appropriate release method depends on the overall fire detection architecture. Hydraulic, pneumatic, electrical, and manual arrangements may be used depending on the application and system design.
4. Corrosion Resistance
Corrosion can become a significant concern in humid, offshore, coastal, and marine environments. Fuxeon states that its valve uses an electric arc copper spraying process intended to improve wear and corrosion resistance and extend service life.
5. Installation Environment
A valve installed in a factory may have very different requirements from one installed on a vessel. Space limitations, piping arrangement, environmental exposure, maintenance access, and system integration should all be considered during specification.
How Does Ship-Type Customization Add Value?
For marine projects, ship-type customization can be an important advantage. Vessel fire protection layouts are often constrained by available installation space, piping routes, equipment positioning, compartment arrangements, and specific operating conditions.
Fuxeon Fire-Fighting Technology Co.,Ltd. supports customized Deluge Alarm Valve solutions for specialized applications, including ship-type customization. Rather than relying only on a standard configuration, customers can discuss application-specific requirements such as connection arrangement, dimensions, control configuration, installation conditions, and other project parameters.
This customization capability is particularly useful when a standard valve configuration does not easily match the existing marine fire protection layout.
For shipbuilders, marine equipment integrators, offshore engineering companies, and fire protection system contractors, customized valve solutions can help improve compatibility between the valve and the overall system design.
Deluge Alarm Valve vs. Conventional Alarm Valve
Although both types are associated with fire protection systems, their operating concepts can differ significantly.
| Feature | Deluge Alarm Valve | Conventional Wet Alarm Valve |
|---|---|---|
| Downstream piping | Often dry in open deluge configurations | Normally water-filled |
| Discharge devices | Commonly open nozzles | Typically individual closed sprinklers |
| Water release | Can supply multiple outlets simultaneously | Normally activated by individual sprinkler operation |
| Typical use | High-hazard areas | General sprinkler protection |
| Fire response concept | Full-zone or designed-area discharge | Localized sprinkler discharge |
The correct selection depends on the fire hazard, system design, applicable requirements, and project conditions rather than simply choosing the more complex configuration.
Why Choose Fuxeon for Customized Fire Protection Solutions?
Fuxeon Fire-Fighting Technology Co.,Ltd. focuses on fire protection equipment and provides Deluge Alarm Valve products in different specifications and configurations. Its product range includes models designed for different connection sizes and installation requirements, while its customization service allows customers to communicate specific project requirements before production.
For B2B buyers, this can be valuable when standard products need to be adapted to a particular project. The combination of product selection, technical communication, customization capability, and after-sales support can help customers develop a fire protection solution that better matches their application.
Final Considerations
A Deluge Alarm Valve is an essential control component for many water-based fire suppression systems, particularly where rapid and coordinated water release is required. Selecting the right product involves considering pressure, connection size, actuation method, material performance, installation environment, and system compatibility.
For marine and offshore projects, ship-type customization can provide additional flexibility when conventional standard configurations cannot fully meet vessel-specific installation requirements. Fuxeon Fire-Fighting Technology Co.,Ltd. combines multiple valve specifications with customized solutions to support industrial, marine, and specialized fire protection applications.
If you are looking for a reliable Deluge Alarm Valve for an industrial, marine, offshore, or customized fire protection project, Fuxeon can help evaluate your requirements and develop a suitable configuration. For specifications, customization requirements, ship-type solutions, or project consultation, contact us today.
