How Does a Charging Valve Work?
2026-05-28
Summary: Charging valves play a critical role in hydraulic and pneumatic systems by ensuring precise fluid control, system safety, and operational efficiency. This article provides an in-depth look into the functionality, types, maintenance, and common issues related to charging valves, helping engineers, technicians, and end-users make informed decisions for their applications.
Table of Contents
- What is a Charging Valve?
- Types of Charging Valves
- How Charging Valves Work
- Installation and Maintenance
- Common Problems and Solutions
- FAQ
- Contact Difon

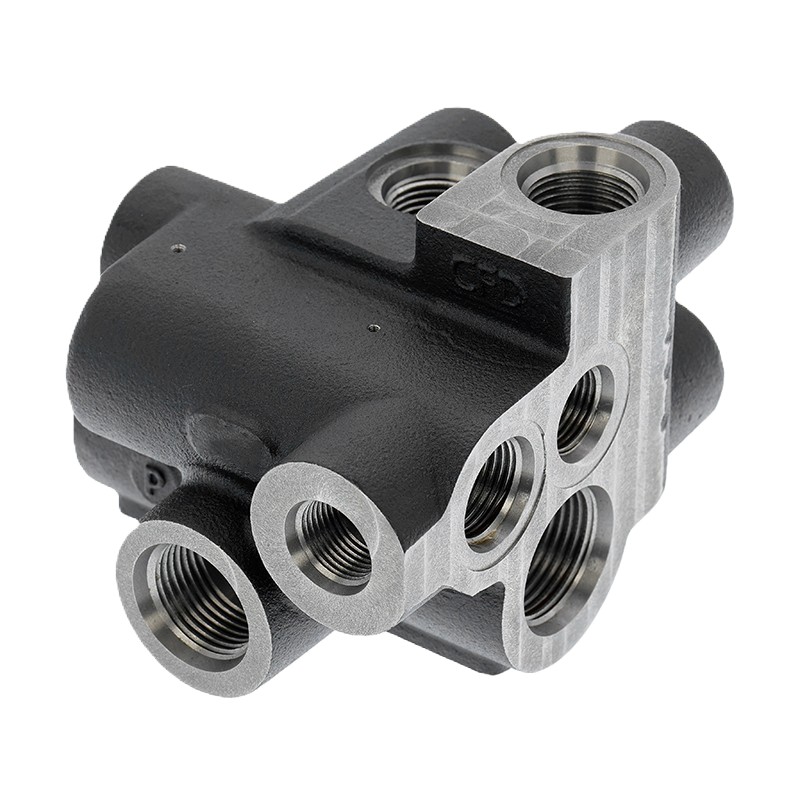

What is a Charging Valve?
A charging valve is a precision component used to introduce hydraulic fluid or air into a closed system safely and efficiently. It ensures controlled pressure levels and prevents system contamination. Charging valves are widely used in hydraulic accumulators, braking systems, and pneumatic machinery.
- Regulates fluid entry into systems.
- Prevents backflow and leakage.
- Maintains system pressure balance.
Difon manufactures high-quality charging valves that meet rigorous industry standards, ensuring reliability in both industrial and mobile applications.
Types of Charging Valves
Charging valves come in various types, each suited for specific system requirements. Understanding the differences is essential for selecting the right valve for your application.
| Type | Function | Application |
|---|---|---|
| Ball Charging Valve | Provides tight sealing and easy operation | Hydraulic accumulators, high-pressure systems |
| Poppet Charging Valve | Ensures fast charging with minimal leakage | Braking systems, pneumatic circuits |
| Needle Charging Valve | Allows precise control over fluid flow | Instrumentation and laboratory systems |
How Charging Valves Work
Charging valves operate by allowing controlled fluid or air flow into a system. The main working principle involves a valve mechanism that opens when pressure is applied and closes when the desired system pressure is reached.
- Step 1: Connect the charging source to the valve inlet.
- Step 2: Open the valve to allow fluid entry.
- Step 3: Monitor system pressure using gauges.
- Step 4: Close the valve once the system reaches target pressure.
High-quality charging valves, like those from Difon, are designed to minimize leakage, prevent contamination, and provide long service life even under high-pressure conditions.
Installation and Maintenance
Proper installation and maintenance of charging valves are crucial to ensure system reliability and longevity.
Installation Tips:
- Verify the valve is compatible with system pressure and fluid type.
- Use proper torque when mounting to avoid leaks.
- Ensure that inlet and outlet connections are clean and free from debris.
Maintenance Tips:
- Regularly inspect for wear or corrosion.
- Clean the valve and replace seals as necessary.
- Check for proper pressure response periodically.
Difon provides detailed installation manuals and customer support to help ensure proper use and maintenance of their charging valves.
Common Problems and Solutions
Even the best valves can encounter issues if not properly handled. Here are some frequent problems and their solutions:
| Problem | Cause | Solution |
|---|---|---|
| Leakage | Worn seals or improper installation | Replace seals and re-torque connections |
| Slow charging | Partial blockage or contamination | Clean the valve and ensure fluid purity |
| Pressure drop | Incorrect valve selection or internal damage | Check specifications and replace damaged components |
FAQ
- Q1: Can a charging valve handle both air and hydraulic fluid?
- A1: Yes, but it is important to select a valve specifically rated for the type of medium and system pressure.
- Q2: How often should charging valves be inspected?
- A2: A visual inspection should be performed monthly, with a more thorough maintenance check annually.
- Q3: Can charging valves prevent over-pressurization?
- A3: Charging valves regulate flow but should be used alongside pressure relief valves for full over-pressure protection.
- Q4: Are Difon charging valves compatible with custom systems?
- A4: Difon offers customizable options to meet various industrial requirements.
