Fully Welded Ball Valve Design and Advantages

This comprehensive guide delves into the engineering excellence, superior design, and significant operational advantages of the Fully Welded Ball Valve. We will explore the critical technical parameters that define this robust valve type, presented through detailed lists and comparative tables, and explain why it is the preferred choice for demanding industrial applications worldwide, solidifying Joepai's position as a leader in high-performance valve manufacturing.

Understanding the Fully Welded Ball Valve Design

A Fully Welded Ball Valve is engineered for maximum integrity and reliability in severe service conditions. Unlike split-body or trunnion-mounted valves that use bolted connections, the body of this valve is constructed from two sections welded together under precise, automated processes. This permanent, hermetic seal eliminates potential leakage paths inherent in flanged or bolted designs.

The core components include a one-piece welded body, a precision-machined ball, stem, seats, and seals. The ball rotates 90 degrees to open or close the flow, providing quick and reliable operation. The permanent body welds ensure the valve becomes an integral, leak-proof part of the piping system, offering unparalleled strength.

Key Advantages of the Fully Welded Ball Valve Design

The design philosophy behind the Fully Welded Ball Valve translates into numerous field-proven benefits:

• Superior Leakage Prevention: The absence of body gaskets and bolted connections removes the most common sources of external leakage. The continuous metal weld ensures zero emission from the body, crucial for hazardous and expensive media.

• Exceptional Structural Integrity and Strength: The monolithic body structure provides immense mechanical strength, capable of withstanding extreme pipeline stresses, ground movement, vibration, and water hammer without failure.

• Enhanced Safety and Reliability: These valves are ideal for dangerous applications like high-pressure gas lines, refinery off-sites, and subsea services. Their robust construction minimizes the risk of catastrophic failure, protecting both people and assets.

• Reduced Lifetime Maintenance: With no body bolts to retorque and no gaskets to replace, Fully Welded Ball Valves significantly lower long-term maintenance costs and operational downtime. They are essentially maintenance-free for the duration of their service life.

• Long Service Life: Constructed from high-grade materials and protected by advanced coatings, these valves offer exceptional resistance to corrosion and erosion, ensuring decades of reliable operation even in the harshest environments.

• Fire-Safe Design: Most Joepai Fully Welded Ball Valves are certified to API 607/API 6FA fire-safe standards. In a fire event, special graphite seals expand to maintain a bubble-tight seal, preventing escalation of the incident.

• Lightweight and Space-Saving: Compared to traditional gate valves of similar pressure ratings, the compact and lightweight design simplifies installation and reduces structural support requirements.

Detailed Technical Parameters of Joepai Fully Welded Ball Valves

Joepai manufactures Fully Welded Ball Valves to the highest international standards, including API 6D, ASME B16.34, and ISO 17292. Below is a breakdown of our standard product parameters.

Standard Specifications:

• Size Range: 2" to 48" (DN 50 to DN 1200)

• Pressure Class: ANSI 150 to 2500; PN 16 to PN 420

• Temperature Range: -60°C to +200°C (-76°F to +392°F) [Extended ranges available with special seals]

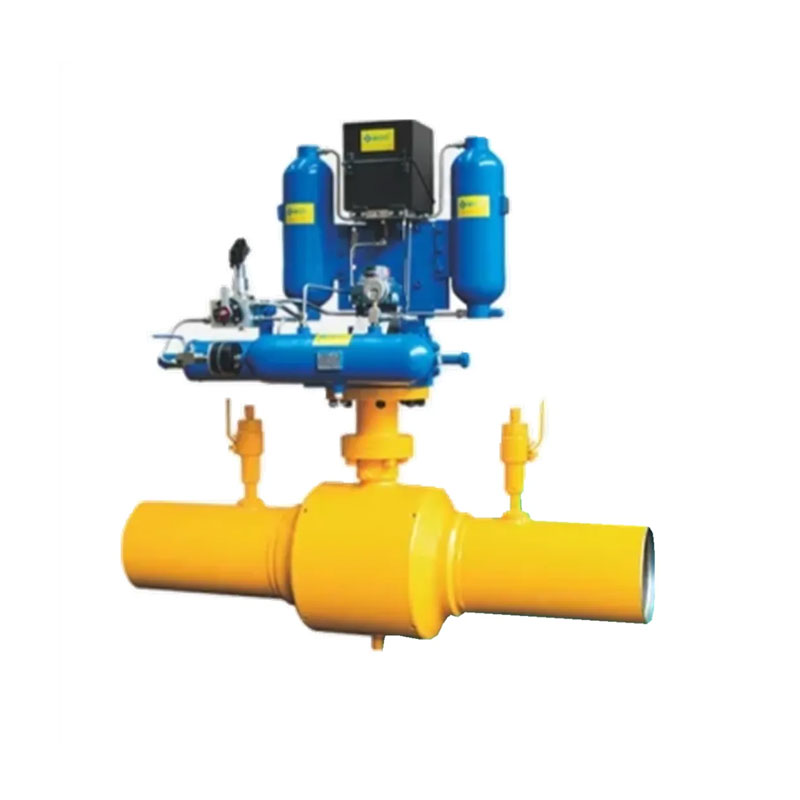

• Operation: Manual (Lever, Gear), Pneumatic, Electric, Hydraulic Actuation

• End Connections: Fully Welded (Butt Weld)

• Fire Safe Design: API 607/API 6FA Certified

• Full Bore (FB) & Reduced Bore (RB): Available to meet pipeline flow efficiency requirements.

Material Selection Guide:

The choice of materials is critical for performance. Joepai offers a wide range to suit various media and conditions.

Performance Test Standards:

Every Joepai Fully Welded Ball Valve undergoes a rigorous battery of tests to guarantee performance.

• Shell Test: Tested to 1.5 times the rated pressure per API 6D to verify body and weld integrity.

• Seat Test: Tested to 1.1 times the rated pressure with air or nitrogen to ensure bubble-tight sealing.

• High-Pressure Gas Test: Conducted as per customer specifications for critical service applications.

• Fire Test: Performed according to API 607/6FA procedures to validate fire-safe performance.

• Cycling Test: Valves are cycled multiple times to ensure smooth operation before shipment.

Applications Across Industries

The robustness of the Fully Welded Ball Valve makes it indispensable in sectors where failure is not an option:

• Oil & Gas Transmission: Mainline isolation valves, sectioning valves, and station isolation.

• Refineries & Chemical Plants: Handling corrosive and toxic fluids under high pressure and temperature.

• Power Generation: Steam isolation, feedwater lines, and other critical services in fossil and nuclear plants.

• Pipelines: For water, sewage, and other municipal fluids where long life and minimal maintenance are key.

• Subsea & Offshore: Specially designed valves for deep-water applications with remote operation.

Why Choose Joepai Fully Welded Ball Valves?

Selecting Joepai means investing in quality, reliability, and peace of mind. Our valves are not just products; they are engineered solutions. We leverage two decades of metallurgical expertise and advanced manufacturing technologies to deliver valves that exceed industry standards. Our commitment to rigorous quality control, from raw material inspection to final performance testing, ensures that every valve we ship performs flawlessly in the field.

We understand that your projects demand the best. That’s why we build our valves to be the last line of defense in your most critical processes.

I have seen firsthand how the right valve can make or break a project's safety and profitability. Don't compromise on integrity. For a direct quote, technical data sheets, or to discuss your specific application requirements, please reach out to our engineering team at [email protected]. Let us provide you with a solution you can depend on.
