Can a WCB Flange Globe Valve Be Used for Steam Service in Industrial Plants
2026-06-11

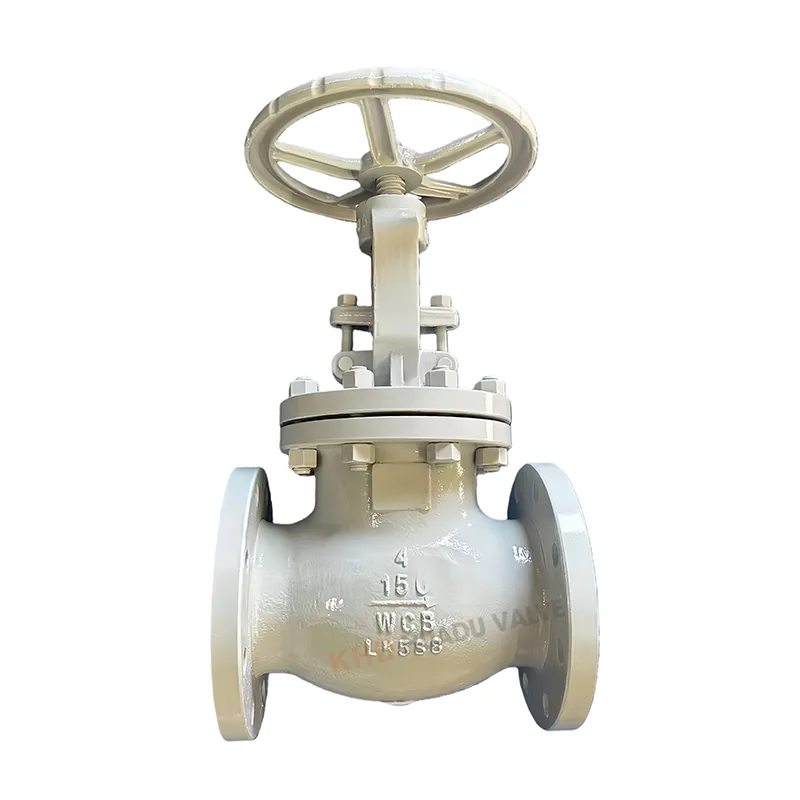

When designing steam systems for industrial plants, valve selection directly impacts safety, efficiency, and maintenance costs. A common question among engineers and procurement specialists is whether a WCB Flange Globe Valve is suitable for steam service. The short answer is yes, but with specific conditions. Huadu, a trusted manufacturer in industrial flow control, produces WCB Flange Globe Valve models that meet rigorous steam application standards. This post examines technical limits, installation best practices, and common concerns.
Technical Suitability for Steam Service
WCB (Weldable Cast Carbon Steel grade B) is a standard material for valves in high-temperature applications. Below is a quick reference table for steam service:
| Parameter | Rating / Requirement |
|---|---|
| Maximum temperature (continuous steam) | 425°C (797°F) |
| Maximum pressure (saturated steam) | Up to 40 bar (depending on size) |
| Body material | A216 WCB carbon steel |
| Trim recommended | 13% Cr stainless steel or Stellite-faced |
| End connections | Raised face RF flange (ASME B16.5) |
Huadu recommends using a WCB Flange Globe Valve with hard-faced seat and disc for superheated steam or frequent cycling.
Why a Globe Valve for Steam?
Globe valves offer better throttling capability and shutoff tightness compared to gate valves. In steam service, a WCB Flange Globe Valve provides:
-
Linear flow characteristic for precise control
-
Metal-to-metal seat options for high temperature
-
Easy maintenance of packing and gaskets
FAQ – Common Questions About WCB Flange Globe Valves in Steam Service
Question 1: Can a standard WCB Flange Globe Valve handle wet steam at 200°C without failure?
Answer: Yes, a standard WCB Flange Globe Valve from Huadu can handle wet steam at 200°C (392°F) without issue. However, ensure the valve trim is made of stainless steel to resist erosion from water droplets. Wet steam accelerates corrosion on carbon steel internals. For wet steam applications, specify a 13% Cr trim or higher. Always check that the flange gasket material (e.g., spiral wound graphite) matches the steam temperature.
Question 2: What happens if I install a WCB Flange Globe Valve backwards in a steam line?
Answer: Installing a WCB Flange Globe Valve backwards (pressure under the disc instead of above) is dangerous in steam service. The valve may fail to close fully due to steam pressure lifting the disc. It can also damage the seat and cause steam leakage, leading to burns or system overpressure. The correct orientation is with the pressure coming from above the disc (follow the arrow cast on the Huadu valve body). For high-temperature steam, always verify flow direction before bolting.
Question 3: How often should I replace the packing on a WCB Flange Globe Valve in saturated steam service at 250°C?
Answer: For a WCB Flange Globe Valve in saturated steam at 250°C, Huadu recommends inspecting the packing (graphite or PTFE-based) every 6 months and replacing it every 12-18 months, depending on cycle frequency. If the valve cycles more than 10 times per day, inspect quarterly. Signs of packing wear include visible steam weeping from the stem. Use only high-temperature graphite packing – PTFE packing will degrade above 260°C. Properly torqued gland bolts extend packing life.
Best Practices for Installation
Follow this checklist when installing a WCB Flange Globe Valve for steam:
| Step | Action |
|---|---|
| 1 | Confirm pressure class (150#, 300#, or 600#) matches steam design pressure |
| 2 | Install with stem upright or horizontal (never upside down) |
| 3 | Use graphite or flexible graphite gaskets on flanges |
| 4 | Apply anti-seize lubricant on stud bolts for high temperature |
| 5 | Insulate the valve body only – leave bonnet exposed for cooling |
Huadu provides clear installation drawings with every WCB Flange Globe Valve sold for steam systems.
Risks of Improper Selection
Using a non-rated or inferior WCB Flange Globe Valve in steam service can lead to:
-
Thermal expansion damage to seat and disc
-
Stem galling due to high temperature cycling
-
Flange leakage from incorrect gasket choice
Huadu valves undergo hydrostatic and steam testing before shipment, ensuring reliability up to 425°C.
Conclusion – Ready to Specify the Right Valve?
For industrial steam lines up to 425°C and 40 bar, a properly specified WCB Flange Globe Valve is a reliable choice. Always match trim material and packing to your exact steam conditions. Huadu offers a full range of WCB Flange Globe Valve models with certificates and test reports.
Contact us for a consultation or to request a quote for your steam system application. Our engineers will help you select the correct valve dimensions, trim, and pressure class. Reach Huadu today via email or phone – let’s ensure your steam service runs safely and efficiently.
