Can a Three Way Ball Valve L Port Be Used for Mixing Applications
2026-10-13
When selecting flow control equipment for industrial processes, engineers often ask whether a Three Way Ball Valve L Port can handle mixing duties. At Shangtai, we design and manufacture Three Way Ball Valve L Port solutions for demanding applications worldwide. The short answer is yes—but with important engineering conditions. Understanding how the L-shaped bore works helps you decide whether it suits your mixing loop or whether a different port configuration is required.
How the L Port Bore Works

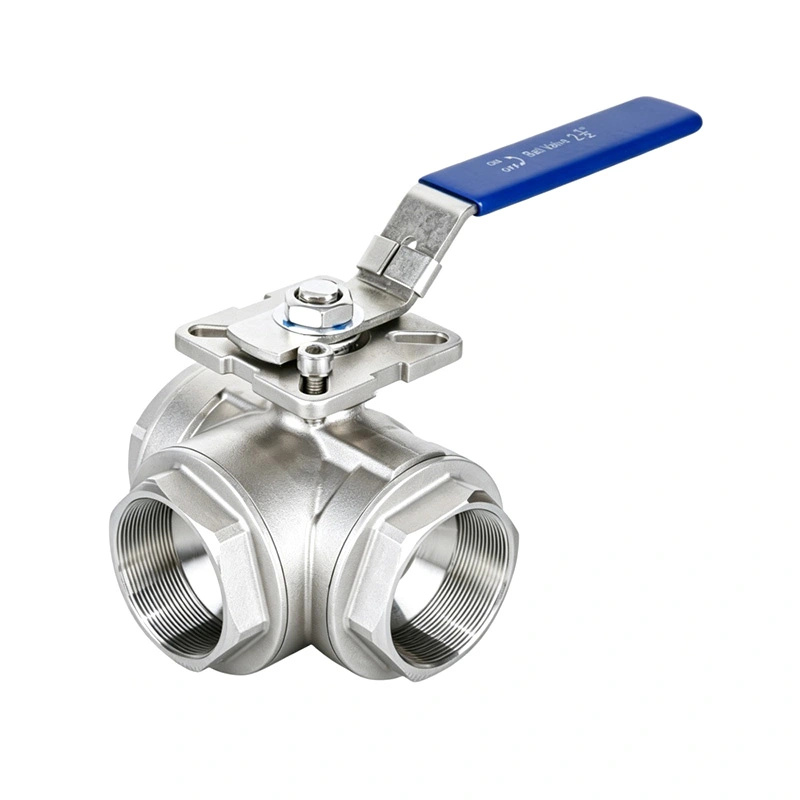

A Three Way Ball Valve L Port features an L-shaped passage inside the ball. In its standard configuration, it connects two adjacent ports while blocking the third, or it can isolate all three ports. This design is primarily intended for diverting flow, not proportionally blending two streams. However, with proper valve sequencing or actuator control, mixing can be achieved in specific system designs.
Shangtai engineers recommend evaluating the following factors before specifying a Three Way Ball Valve L Port for mixing:
| Factor | Consideration | Shangtai Recommendation |
|---|---|---|
| Flow Pattern | Diverting vs. blending | Use L port for on/off diversion; consider T port for proportional mixing |
| Actuation | Manual vs. automated | Electric or pneumatic actuators enable timed switching for batch mixing |
| Pressure Drop | Higher in L port due to bore geometry | Verify Cv value against system requirements |
| Media Compatibility | Corrosive or viscous fluids | Select body and seat materials accordingly |
| Cycle Frequency | Frequent switching accelerates wear | Choose reinforced seats and stems |
Mixing Applications Where L Port Valves Excel
A Three Way Ball Valve L Port performs well in batch mixing systems where two inlet streams must be alternately fed into a common outlet, or where a single stream must be routed between two destinations. Common examples include:
-
Chemical dosing lines requiring sequential addition
-
Water treatment systems alternating between process and bypass
-
Food and beverage plants switching between product and cleaning fluids
-
Pharmaceutical reactors needing precise source selection
In these cases, the Three Way Ball Valve L Port acts as a selector rather than a proportional blender. True continuous mixing typically demands a T port design or a dedicated mixing valve.
Key Benefits of Shangtai L Port Valves
-
Shangtai precision-machined balls ensure tight shutoff and long service life
-
Full port options minimize pressure loss
-
ISO 5211 mounting pads simplify automation
-
Available in stainless steel, carbon steel, and special alloys
Three Way Ball Valve L Port FAQ
Q: Can a Three Way Ball Valve L Port mix two fluids simultaneously?
A: No, a standard Three Way Ball Valve L Port cannot blend two fluids proportionally at the same time. Its L-shaped bore connects only two ports at any position, so it diverts or selects flow rather than combining it. For simultaneous mixing, a T port valve or a dedicated mixing valve is required.
Q: What is the difference between an L port and a T port for mixing?
A: A Three Way Ball Valve L Port connects two adjacent ports and blocks the third, making it ideal for diverting. A T port connects all three ports or two opposite ports, allowing partial flow from two inlets to mix at the outlet. Choose L port for selection and T port for blending.
Q: How do I automate a Three Way Ball Valve L Port for batch mixing?
A: Mount a Shangtai pneumatic or electric actuator using the ISO 5211 pad, then program the controller to switch positions at set intervals. This creates sequential mixing in batch processes. Always confirm cycle life and torque requirements with Shangtai engineers before installation.
Conclusion
A Three Way Ball Valve L Port can support mixing applications when used as a sequential flow selector rather than a proportional blender. Shangtai provides expert guidance to match the right valve configuration to your process. For technical selection support, customized solutions, or a quotation, contact us today—our engineering team is ready to help you specify the ideal Three Way Ball Valve L Port for your mixing system.
