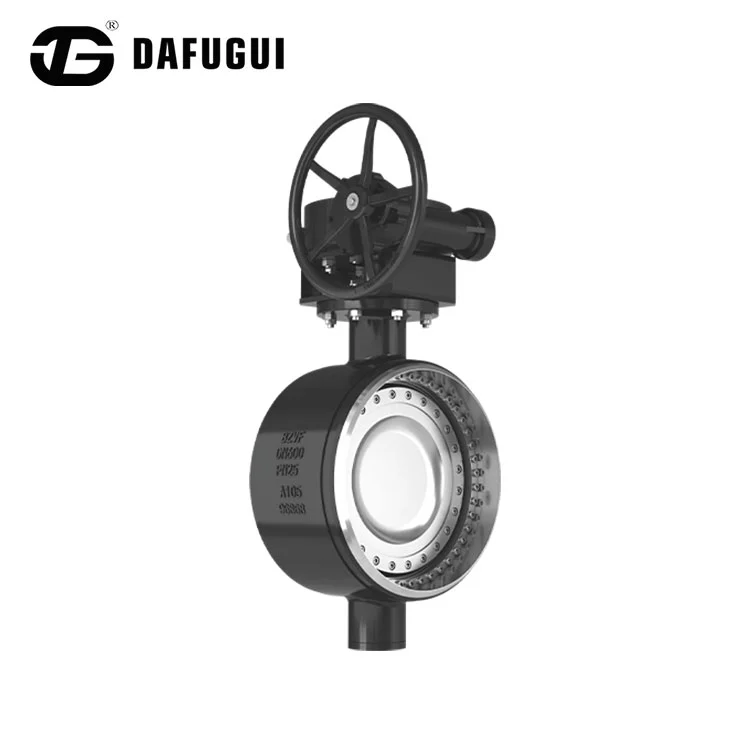

Can a Metal Hard Seal Butterfly Valve Handle High-Temperature Steam Applications
2026-08-18
When engineers face demanding steam systems above 400°C, the valve selection process often becomes a battleground between reliability and cost. The Metal Hard Seal Butterfly Valve has emerged as a serious contender in this space, but does it truly deliver the long-term performance that high-temperature steam requires? At Dafugui, we have spent over two decades testing and refining our Metal Hard Seal Butterfly Valve designs specifically for thermal power plants, petrochemical crackers, and superheated steam distribution networks.
Why Temperature Changes Everything
Soft-seated valves excel at low-temperature isolation, but they degrade rapidly when steam temperatures exceed 200°C. The Metal Hard Seal Butterfly Valve replaces polymer seats with cobalt-based or Stellite hardfacing on both the disc and seat ring. This metal-to-metal configuration maintains dimensional stability even when system temperatures swing between ambient and 600°C during startup and shutdown cycles.
However, thermal expansion is not uniform. The disc, shaft, and body expand at different rates, which can increase operating torque or reduce sealing specific pressure. Dafugui addresses this through a proprietary triple-offset geometry that uses cam-action seating—the disc only contacts the seat during the final 2–3 degrees of closure, minimising friction wear while accommodating thermal growth.
Critical Performance Factors for Steam Service
| Parameter | Soft Seal Valve | Metal Hard Seal Butterfly Valve (Dafugui) |
|---|---|---|
| Max continuous temperature | 200°C | 650°C (with Inconel hardfacing) |
| Leakage rate (ISO 5208) | Rate A (zero) | Rate A (zero) with lapped seats |
| Thermal cycle resistance | Poor (seat deforms) | Excellent (metal elasticity) |
| Steam erosion resistance | Low | High (HRC 45–58 hardness) |
| Maintenance interval | 6–12 months | 3–5 years in clean steam |
The table above illustrates why power utilities increasingly specify Metal Hard Seal Butterfly Valve solutions for main steam isolation, turbine bypass, and extraction lines.
Real-World Operational Challenges
Erosion from wet steam droplets and condensate flashing is the primary failure mechanism. The Metal Hard Seal Butterfly Valve counters this with a continuous, uninterrupted sealing surface that eliminates crevices where pitting corrosion initiates. Dafugui further enhances longevity by applying tungsten-carbide coatings to the disc edge, which withstands particle impingement at velocities exceeding 50 m/s.
Another hidden challenge is thermal binding. When a valve closes hot and cools down while closed, the contracted disc can become wedged. Dafugui engineers our Metal Hard Seal Butterfly Valve with a self-relieving seat design that maintains a controlled clearance during cooling, ensuring the valve can reopen without excessive actuator force.
FAQ – Common Questions About Metal Hard Seal Butterfly Valves
Q: Can a Metal Hard Seal Butterfly Valve achieve bubble-tight shutoff in superheated steam at 500°C?
A: Yes, but only if the valve employs lapped metal seats with a surface roughness below Ra 0.4 µm and a specific seating stress exceeding 70 MPa. Dafugui achieves bubble-tight shutoff (ISO 5208 Rate A) by using a precision-ground disc and a resiliently mounted seat ring that flexes slightly under pressure to compensate for thermal distortions. However, users must strictly follow torque-limit procedures—over-tightening can indent the hardfacing and permanently degrade sealing. For temperatures above 550°C, we recommend Inconel 718 hardfacing instead of Stellite 6 to avoid phase transformation.
Q: How often does a Metal Hard Seal Butterfly Valve require seat replacement in continuous high-temperature steam service?
A: Under clean superheated steam conditions (dryness fraction > 98%, no entrained solids), the seat hardfacing on a Dafugui Metal Hard Seal Butterfly Valve typically lasts 8,000 to 12,000 operating cycles before any measurable leakage appears. This translates to 3–5 calendar years in baseload power plants. In contrast, soft-seat valves in the same service often fail within 1,500 cycles. When replacement becomes necessary, Dafugui offers field-replaceable seat rings that can be changed without removing the entire valve body from the pipeline—a feature that reduces downtime by 70% compared to welded-seat designs.
Q: What actuator sizing considerations are unique to a Metal Hard Seal Butterfly Valve in steam duty?
A: The breakaway torque for a Metal Hard Seal Butterfly Valve can be 2.5 to 3 times higher than its running torque due to the metal-to-metal static friction and differential thermal contraction. Dafugui recommends performing a thermal torque profile test at the maximum expected steam temperature, then adding a 30% safety margin for actuator selection. Additionally, steam service requires fail-safe closure (spring-return or accumulator) because uncontrolled cooling can cause the disc to seize in the open position. Always specify actuator stroke timers that allow at least 5–8 seconds for full closure—rapid seating of metal surfaces at high temperature can generate impact loads that spall the hard coating.
Installation and Maintenance Best Practices
Proper pipeline alignment is non‑negotiable. Misalignment introduces bending moments that distort the seat ring, creating localized leakage paths. Dafugui provides laser-alignment checklists with every Metal Hard Seal Butterfly Valve shipment. We also recommend installing upstream strainers when steam lines contain weld slag or scale, particularly during commissioning.
For maintenance, thermal shock is the greatest enemy. Never quench a hot valve with cold water during cleaning—this can crack the hardfacing. Instead, allow the Metal Hard Seal Butterfly Valve to cool naturally to below 150°C before any disassembly. Dafugui supplies detailed thermal-cycle logs that help operators predict when lapping or hardfacing touch-up becomes due.
Conclusion and Call to Action
The Metal Hard Seal Butterfly Valve is not only capable of handling high-temperature steam—it outperforms conventional gate and globe valves in cycling services where thermal movement and erosion are daily realities. With proper material selection, torque management, and installation discipline, a Dafugui Metal Hard Seal Butterfly Valve delivers decades of reliable, leak-tight performance in the most punishing steam environments.
Contact us today to request a customized thermal-performance simulation for your specific steam parameters. Our engineering team will provide torque curves, cycle-life projections, and a detailed material recommendation—all tailored to your operating conditions. Reach Dafugui through our website, and let us help you select the Metal Hard Seal Butterfly Valve that keeps your steam system running safely and efficiently. Your next outage window is too valuable to waste on the wrong valve.
