Can a 1PC Stainless Steel Direct Mount Ball Valve Be Used with Actuators for Automation
2026-10-22
Automation is no longer reserved for large-scale process plants. Today, engineers and system integrators frequently ask whether a 1PC Stainless Steel Direct Mount Ball Valve can be paired with pneumatic or electric actuators for automated service. The short answer is yes — and when sourced from a manufacturer like Shangtai, the direct-mount design becomes a genuine advantage rather than a compromise. This article explains the technical basis, the practical requirements, and the limitations you should understand before specifying an automated package.
Why the Direct Mount Design Matters for Automation

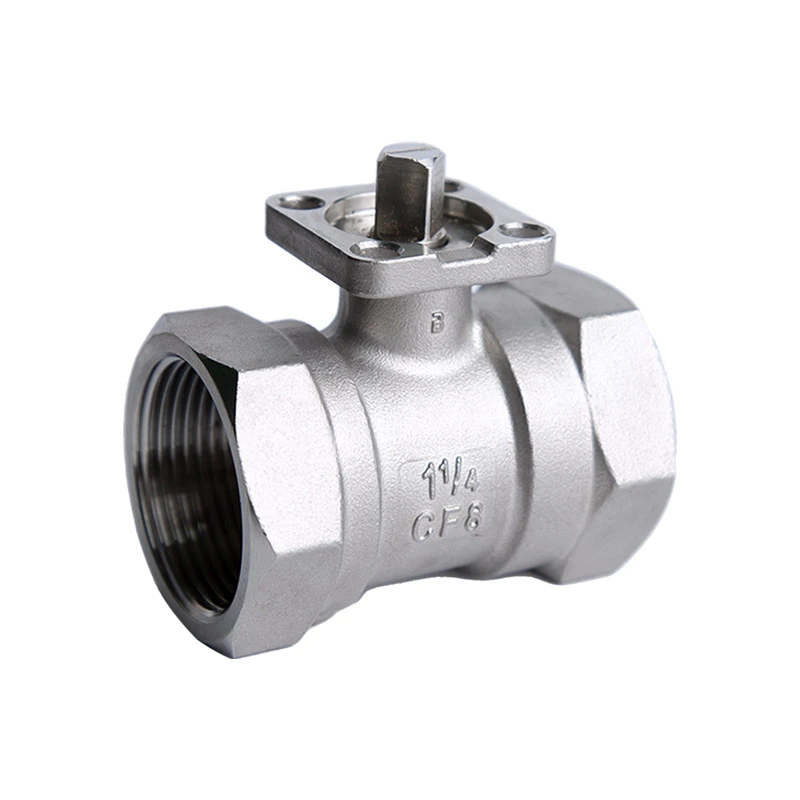

The 1PC Stainless Steel Direct Mount Ball Valve features an integral ISO 5211 mounting pad cast or machined directly onto the valve body. Unlike a conventional valve that requires a separate mounting bracket and adapter, the direct-mount interface allows an actuator to be bolted on with a matched stem connection. This eliminates bracket flex, reduces alignment error, and shortens the assembly stack height — all of which improve positioning accuracy and reduce dead band in modulating service.
Shangtai manufactures these valves with standardized ISO 5211 pads and square or double-D stem drives, so actuators from major suppliers can be fitted without custom machining.
Key Selection Criteria
Before automation, verify the following parameters:
| Parameter | What to Check | Why It Matters |
|---|---|---|
| Torque | Valve breakaway and running torque vs. actuator output | Undersized actuators cause incomplete stroke |
| Mounting standard | ISO 5211 pad size and stem dimensions | Ensures direct bolt-on compatibility |
| Stem design | Square drive or double-D, blowout-proof | Prevents stem shear and ensures safe operation |
| Media and temperature | Seal material (PTFE, RPTFE, TFM) vs. operating range | Protects seats from extrusion or degradation |
| Cycle frequency | Manual vs. high-cycle automated duty | Influences seat and stem bearing selection |
| Actuator type | Pneumatic, electric, or electro-pneumatic | Determines control architecture and fail-safe behavior |
Practical Considerations
-
Torque safety factor: Apply a factor of 1.3–1.5 to the published breakaway torque, especially for media prone to scaling or for infrequent cycling.
-
Stem extension: In insulated or high-temperature lines, a stem extension may be needed to keep the actuator within its ambient rating.
-
Fail-safe position: Spring-return pneumatic actuators on a 1PC Stainless Steel Direct Mount Ball Valve provide reliable fail-close or fail-open behavior on air loss.
-
Accessories: Solenoid valves, limit switches, and positioners mount directly to the actuator, not the valve, keeping the assembly compact.
-
Verification: Always perform a dry-cycle test before commissioning. Shangtai recommends confirming full stroke and seat tightness at the specified line pressure.
Limitations to Recognize
A 1PC Stainless Steel Direct Mount Ball Valve is not the ideal choice for every automated application. The one-piece body is not repairable in line, so high-cycle or abrasive services may favor a three-piece design. Very large sizes and high-pressure classes may exceed the practical torque range of compact direct-mount actuators. In these cases, a bracket-mounted configuration or a different valve style should be evaluated.
FAQ
Q: Can any actuator be mounted on a 1PC Stainless Steel Direct Mount Ball Valve?
A: No. The actuator must match the valve's ISO 5211 pad size, stem drive dimensions, and required torque output. Verify the mounting interface and apply a torque safety factor before ordering.
Q: Is a 1PC Stainless Steel Direct Mount Ball Valve suitable for modulating control?
A: It can be, provided the actuator and positioner are sized for modulating duty and the valve's dead band and hysteresis are acceptable. For tight control requirements, confirm performance with the manufacturer.
Q: What maintenance does an automated 1PC Stainless Steel Direct Mount Ball Valve require?
A: Periodic inspection of actuator air supply or electrical connections, stroke verification, and seat leakage checks are recommended. Because the body is one-piece, seat replacement typically requires valve removal.
Conclusion
Automating a 1PC Stainless Steel Direct Mount Ball Valve is technically sound and commercially efficient when the torque, mounting standard, and duty cycle are correctly matched. Shangtai supports this process with standardized ISO 5211 interfaces, documented torque data, and application guidance for pneumatic and electric actuation.
