Butterfly Valve Types and Industrial Applications

Butterfly valves are essential components in modern industrial flow control systems, prized for their efficiency, versatility, and cost-effectiveness. This article provides a comprehensive overview of butterfly valve types, their technical specifications, and industrial applications, with a special focus on the Pet Butterfly Valve from Shengshi Huagong. We will explore key product parameters through detailed lists and tables to help you make an informed decision for your specific needs.

Understanding Butterfly Valves

A butterfly valve regulates flow using a rotating disk mounted on a diametrical axis within the pipe. When the disk is parallel to the flow, the valve is fully open; when perpendicular, it is closed. Its simple design allows for quick operation, minimal pressure drop, and reliable shut-off, making it suitable for a wide range of industries.

Types of Butterfly Valves

Butterfly valves are categorized based on their design and seating material, which determine their pressure ratings, temperature tolerance, and application suitability.

1. Wafer Type Butterfly Valve
   The most common type, designed to fit between two pipe flanges. It is lightweight and cost-effective but cannot be used as an isolation valve in systems requiring end-of-line service.

2. Lug Type Butterfly Valve
   Features threaded inserts (lugs) on both sides, allowing it to be bolted into a system without nuts. This design permits the valve to be installed at the end of a pipeline or disconnected without disturbing the entire system.

3. Double Offset Butterfly Valve (High-Performance)
   The disk is offset from the seat and the valve centerline, reducing wear and enabling tighter sealing. Ideal for higher pressure and temperature applications.

4. Triple Offset Butterfly Valve (Metal-Seated)
   Features three offsets for a frictionless seal, making it suitable for extreme conditions, including high temperatures and corrosive media. Commonly used in power generation and chemical processing.

Industrial Applications of Butterfly Valves

Butterfly valves are used across numerous industries due to their adaptability and performance:

• Water and Wastewater Treatment:
  Used in pumping, distribution, and purification systems due to their corrosion resistance and ability to handle large flow volumes.

• Oil and Gas Industry:
  Critical in refining, transmission, and storage processes. The Pet Butterfly Valve is specifically engineered for petroleum-based applications, offering excellent resistance to hydrocarbons and high pressures.

• Chemical and Pharmaceutical Processing:
  Employed in handling aggressive chemicals, acids, and solvents. Valves with lined seats (e.g., PTFE) prevent contamination and ensure purity.

• HVAC Systems:
  Regulate water and air flow in heating, ventilation, and air conditioning systems, thanks to their energy efficiency and compact design.

• Food and Beverage Industry:
  Sanitary designs with polished surfaces and easy cleaning capabilities meet strict hygiene standards.

• Marine and Shipping:
  Used in ballast, cooling, and fuel systems due to their durability and saltwater resistance.

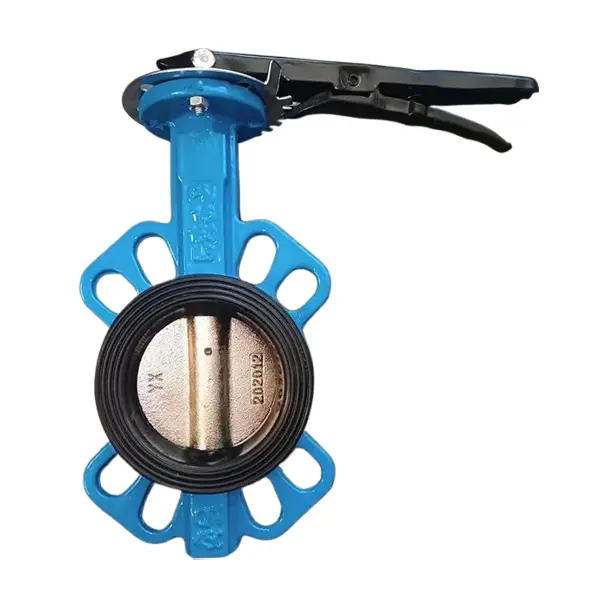

In-Depth Look at the Pet Butterfly Valve by Shengshi Huagong

The Pet Butterfly Valve from Shengshi Huagong is a high-performance valve designed for the petroleum industry. It combines robust construction with precision engineering to ensure reliability in demanding environments.

Key Features:

• Material: Manufactured from carbon steel, stainless steel, or duplex steel, with options for epoxy coating or galvanization for enhanced corrosion resistance.

• Seat: Resilient EPDM, NBR, or Viton for excellent sealing and longevity.

• Disk: Designed for minimal turbulence and pressure drop.

• Operational Flexibility: Manual, gear, pneumatic, or electric actuation options.

• Standards Compliance: Meets API, ANSI, and ISO standards.

Technical Parameters:

Advantages of Choosing Shengshi Huagong’s Pet Butterfly Valve:

• Durability: Engineered to withstand abrasive and corrosive media.

• Efficiency: Low torque operation reduces energy consumption.

• Easy Maintenance: Simple design allows for quick inspection and part replacement.

• Customization: Available in various sizes, materials, and actuation methods to meet specific project requirements.

Why Select Shengshi Huagong for Your Butterfly Valve Needs?

With decades of experience in valve manufacturing, Shengshi Huagong has built a reputation for quality and reliability. Our valves undergo rigorous testing to ensure they perform under the most challenging conditions. We prioritize innovation, customer satisfaction, and timely delivery, making us a trusted partner for industries worldwide.

Conclusion

Butterfly valves are indispensable in optimizing flow control systems across diverse sectors. The Pet Butterfly Valve from Shengshi Huagong stands out for its robust design, compliance with international standards, and suitability for petroleum applications. By understanding the technical details and advantages outlined in this article, you can confidently select the right valve for your operations.

We at Shengshi Huagong are committed to providing top-tier products and solutions tailored to your needs. If you have any questions or require further assistance, please don’t hesitate to reach out. We encourage you to leave an inquiry at [email protected] to discuss how our valves can enhance your projects. Let’s work together to achieve efficiency and reliability in your systems!
