Bellow Sealed Gate Valve vs. Standard Packed Gate Valve – Which One Saves More on Long-Term Maintenance

When selecting industrial flow control components for critical applications, engineers and plant managers constantly weigh upfront capital expenditure against total cost of ownership. The Bellow Sealed Gate Valve has gained significant traction in recent years as a superior alternative to traditional packed stem designs. But does the higher initial investment truly translate into long-term savings? At Baoyi, we have analyzed field data from thousands of installations across refining, petrochemical, and thermal power plants to provide a data-driven answer.

The Core Difference: Sealing Mechanism

Understanding the fundamental design distinction is essential before comparing maintenance economics.

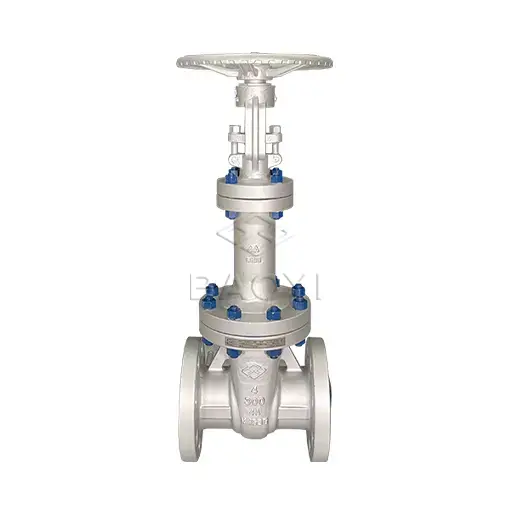

The Bellow Sealed Gate Valve from Baoyi employs a multi-ply stainless steel bellows welded directly to the stem and bonnet, creating a hermetic barrier. This design eliminates the primary fugitive emission path that plagues standard packed valves, especially in high-temperature or toxic fluid services.

Long-Term Maintenance Cost Breakdown (5-Year Horizon)

To quantify savings, consider a typical 2-inch, Class 300 valve in saturated steam service at 250°C, operating 8,000 hours annually.

**Net savings with Baoyi’s Bellow Sealed Gate Valve: approximately $2,960 per valve over five years.** For a plant with 200 such valves, that translates to nearly $600,000 in maintenance budget recovered.

Why the Savings Are Even Greater in Severe Service

In hydrogen, chlorine, or superheated steam applications, standard packing deteriorates rapidly due to oxidation and extrusion. The Bellow Sealed Gate Valve maintains leak-tight integrity because the bellows shield the stem from corrosive media. Baoyi's proprietary bellows design undergoes 10,000 flex cycles during factory testing, ensuring fatigue resistance that far exceeds industry norms.

3 Frequently Asked Questions About Bellow Sealed Gate Valve

Q1: How do I know when the bellows in my Bellow Sealed Gate Valve are about to fail, and can I replace them in-line?

A: Unlike packing which shows gradual leakage increase, bellows failure is typically sudden and catastrophic if undetected. The most reliable indicator is the secondary packing leakage – when you observe any stem seal leakage, the primary bellows have already fractured. Baoyi recommends installing a diagnostic port (optional) to monitor bellows condition via pressure decay testing during scheduled outages. In-line replacement is not possible because the valve must be depressurized and the bonnet removed; however, Baoyi offers cartridge-style bellows assemblies that reduce replacement time by 40% compared to conventional designs. We advise a proactive replacement every 6 years for cyclic service (over 5,000 full strokes/year) and every 8 years for steady-state applications.

Q2: Can a Bellow Sealed Gate Valve handle abrasive slurries or fluids with suspended solids?

A: Direct exposure of the bellows to abrasive particles is the leading cause of premature wear. Baoyi strongly advises against using a Bellow Sealed Gate Valve in slurry service unless a clean purge connection is installed above the bellows to introduce a barrier fluid (e.g., nitrogen or clean condensate). Without this protection, solids can become trapped between bellows convolutions, causing stress concentration and early fatigue fracture. For dirty services, we recommend our Baoyi severe-service series with hardened trim and a flush port – this configuration extends bellows life to match that of clean-service applications. Always consult Baoyi’s application engineering team with your fluid analysis data before specification.

Q3: Is the torque requirement for operating a Bellow Sealed Gate Valve different from a standard packed valve, and does that affect actuator sizing?

A: Yes, and this is a critical advantage. The Bellow Sealed Gate Valve requires significantly lower stem thrust because the bellows exert a relatively constant spring rate (typically 50–70 N/mm) versus the highly variable friction of compressed packing, which can spike up to 300% higher after thermal cycling. For manual operation, this means reduced handwheel effort. For automated actuation, Baoyi’s engineering data shows that you can downsize the actuator by one full frame size compared to a packed valve with the same pressure-temperature rating. This not only saves on actuator procurement cost but also reduces wear on the valve stem threads and gland follow-up components, further lowering long-term maintenance overhead.

The Verdict: Clear Winner for Lifecycle Value

While the standard packed gate valve offers a lower entry price, the Bellow Sealed Gate Valve from Baoyi delivers demonstrably lower total maintenance cost, reduced environmental compliance risk, and higher plant availability. The payback period is typically under 18 months in continuous high-temperature service. For emissions-regulated facilities, the Bellow Sealed Gate Valve is not just a choice – it is a strategic necessity.
