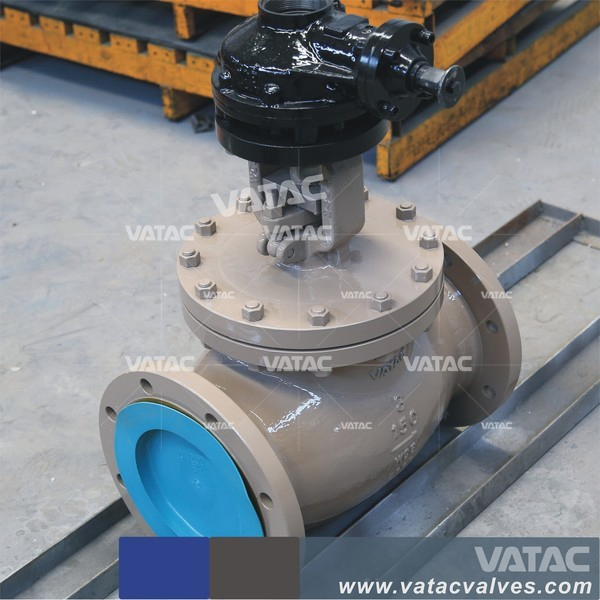

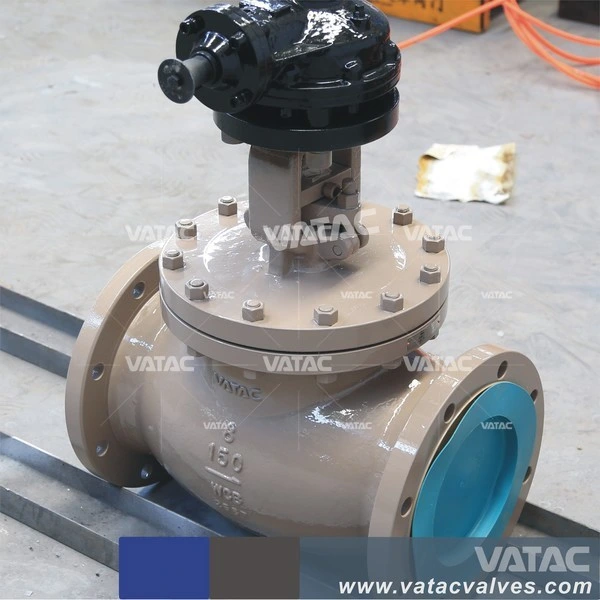

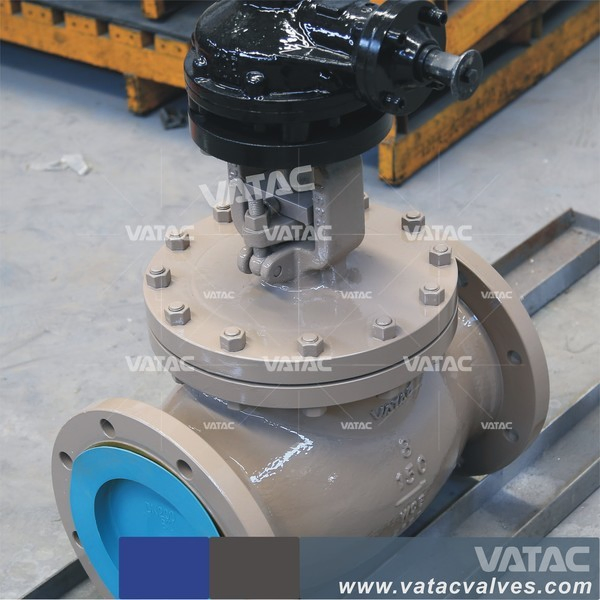

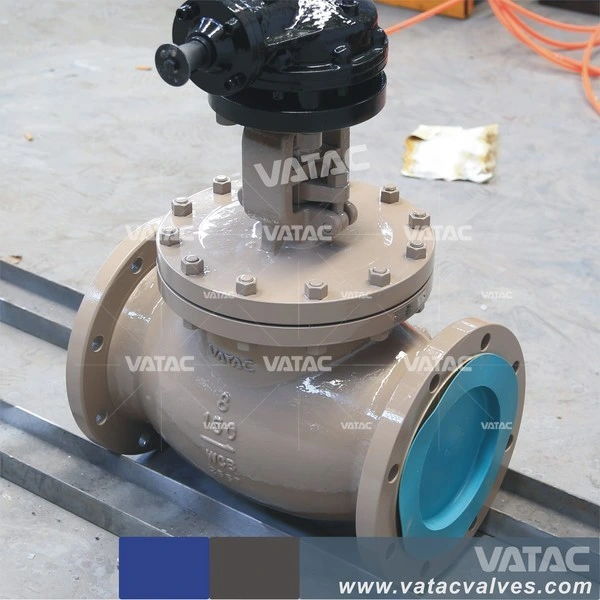

Steel Bellow Handwheel Globe Valve

Specifications
STANDAROS COMPLIANCE
BASIC DESIGN: ANSI B16.34, BS1868
FACE TO FACE DIMENSION: ANSI B 16.01
B. W. ENDS TO: ANSI B 16.25
SHELL WALL

1. Operation methods: Manual, gear, electric, pneumatic, please describe the method as ordered.

2. High and middle pressure flanged globe valve is applicable to various of working pipelines such as petroleum, chemical pharmacy, fertilizer, power station and city construction accessory with nominal pressure PN1.6~25Mpa and working temperature-29~550° C to shut off or connect pipeline medium. Applicable medium: Water, oil product, steam, acidic service etc.

3. It complies with advanced standards at home or abroad as required, having realiable sealing ability, good performance and beautiful shape.

4. It follows Febase alloy or stellite Co-base hard alloy overlay for disc, seat sealing face, with anit-wearing, high temperature resistant, corrosion resistant, anti-scratching and long duration.

5. The stem has good corrosion resistant, anti-scratching and anti-wearing after material adjustment and surface nitrogenization.
6. It may use all kinds of flangle fittings standards and sealing and type to meet any project need and end-user's requirements.

7. With complete range of body material, the packing and gasket may choose the reasonable type according to actual working condition or customer's requirement which is useful to all pressure, temperature and service condition.

8. Sealing performance is good, service life is long, flowing direction of medium not restricted.

We assure you of our best services at all times.
