China JIS F 7307 Bronze 16K Globe Valves with High Quality

Product Description

JIS MARINE VALVE

Cast iron JIS air vent head disc type

F 7301 Bronze 5K globe valves
JIS F 7307 Bronze 16K globe valves

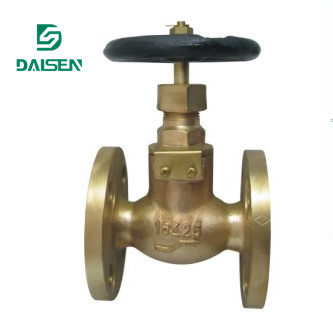

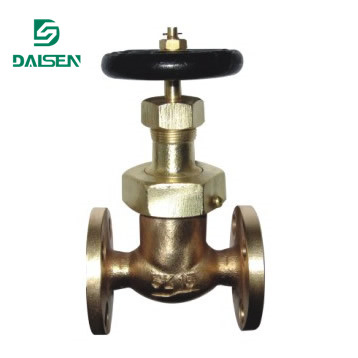

JIS F 7307 Bronze 16K Globe Valves with High Quality

Materials Table

		NAME OF PART	MATERIAL
1	ZCuSn5Pb5Zn5	BODY	BC6
2	ZCuSn5Pb5Zn5	BONNET	BC6
3	ZCuSn5Pb5Zn5	DISC	BC6
4	Hpb59-1	STEM	C3771BD OR BE
5		GASKET
6	HT200	HANDWHEEL	FC200

/Size Table(7301)

DN	d	L	D	C	NO.	b	t	H	D2
15	15	100	80	60	4	12	9	130	80
20	20	110	85	65	4	12	10	140	100
25	25	120	95	75	4	12	10	160	125
32	32	140	115	90	4	15	12	170	125
40	40	160	120	95	4	15	12	190	140
50	50	210	130	105	4	15	14	235	140
65	65	250	155	130	4	15	14	260	160
80	80	280	180	145	4	19	16	280	160
100	100	340	200	165	8	19	16	333	200

/Size Table(7303)

DN	d	L	D	C	NO.	b	t	H	D2
15	15	110	95	70	4	15	12	130	80
20	20	120	100	75	4	15	14	140	100
25	25	130	125	90	4	19	14	160	125
32	32	160	135	100	4	19	16	170	125
40	40	180	140	105	4	19	16	190	140
10k50	50	210	155	120	4	19	14	233	140
16k50	50	210	155	120	8	19	14	233	140
10k65	65	270	175	140	4	19	18	233	160
16k65	65	270	175	140	8	19	18	233	160

OEM service
Having our own factory and professional technicians,we welcome OEM orders as well.We can design and produce the specific product you need according to your detail information
After-sale Service
Our enthusiastic and friendly customer service representatives are ready to assist with any questions or problems

JIS F 7307 Bronze 16K Globe Valves with High Quality
