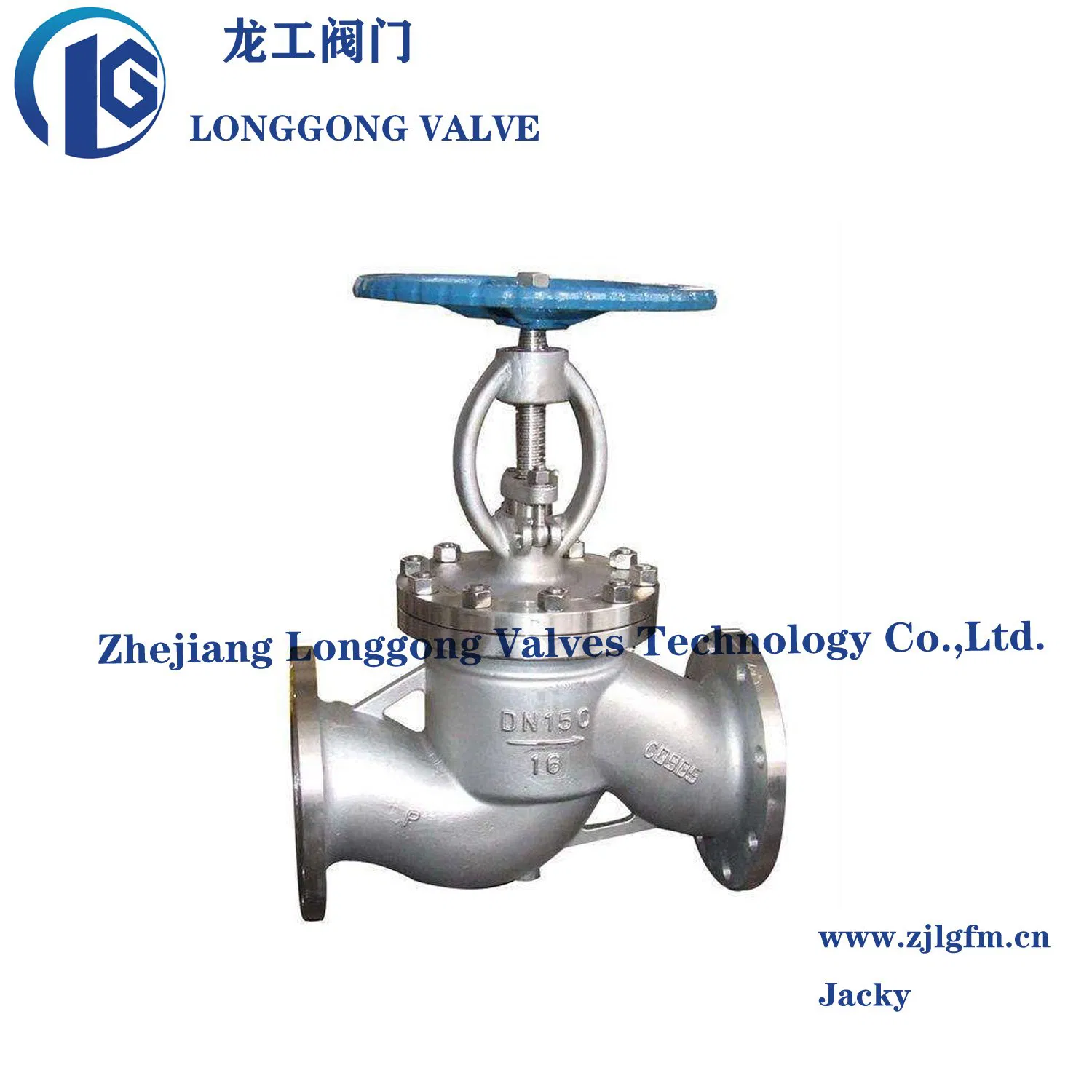

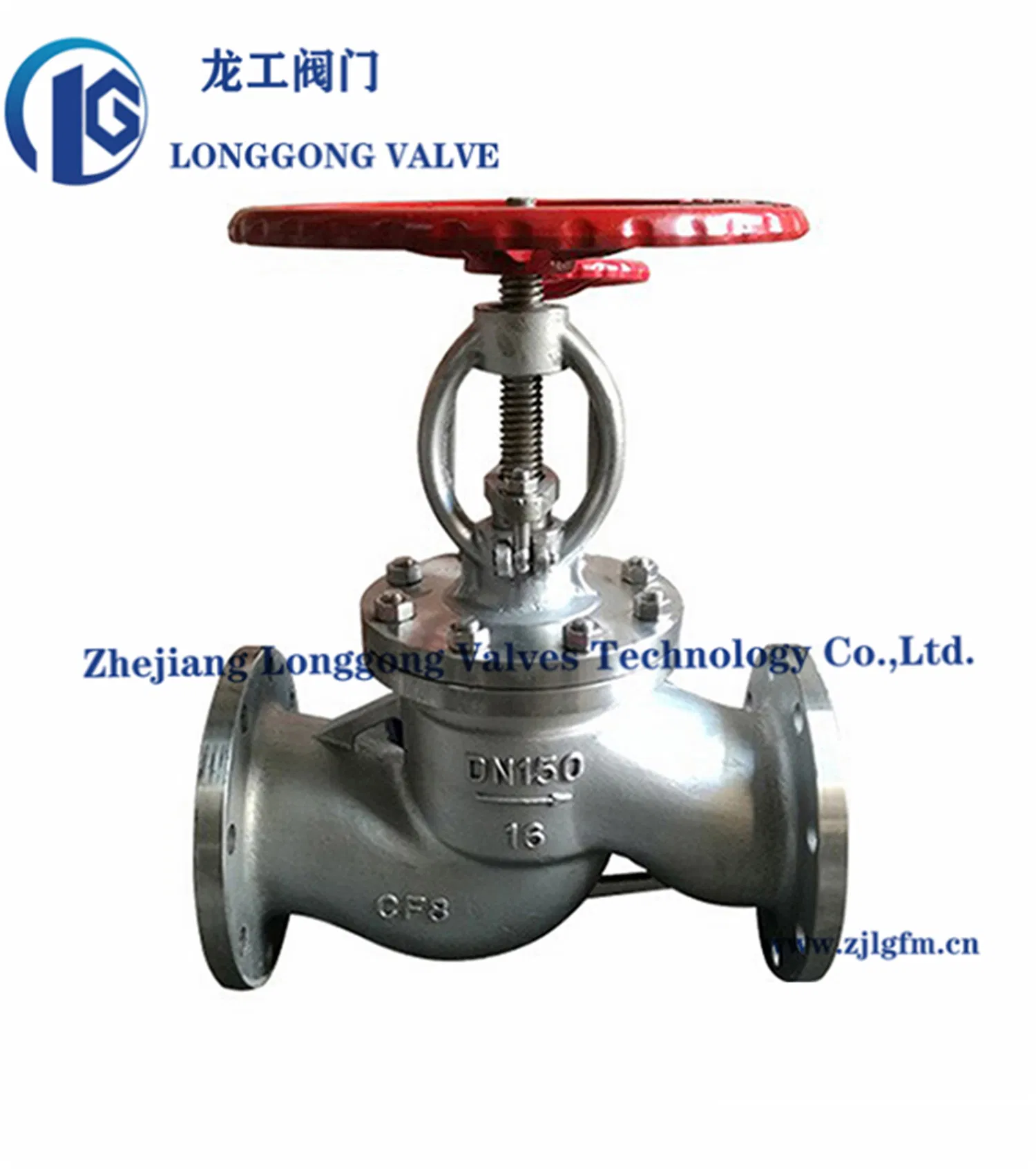

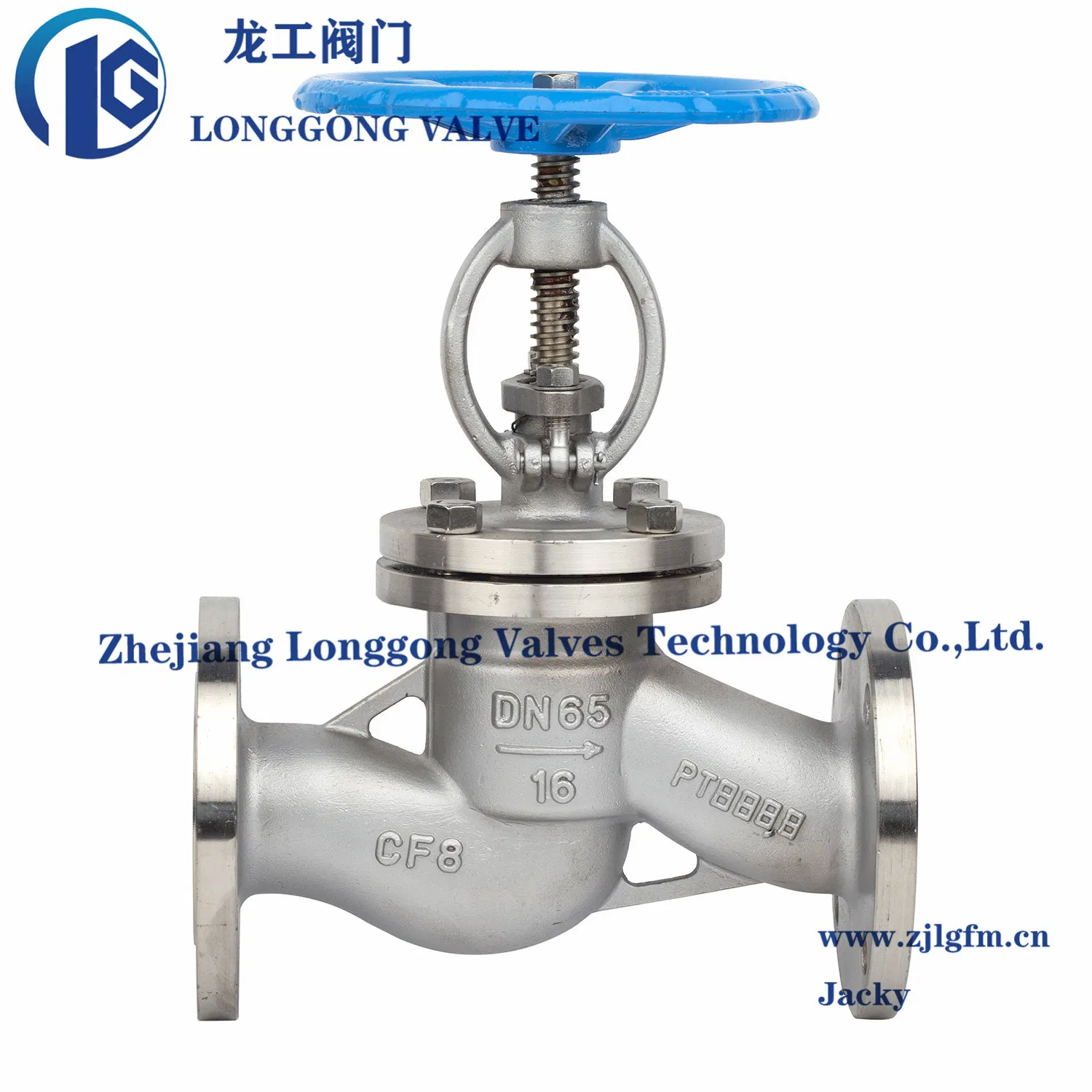

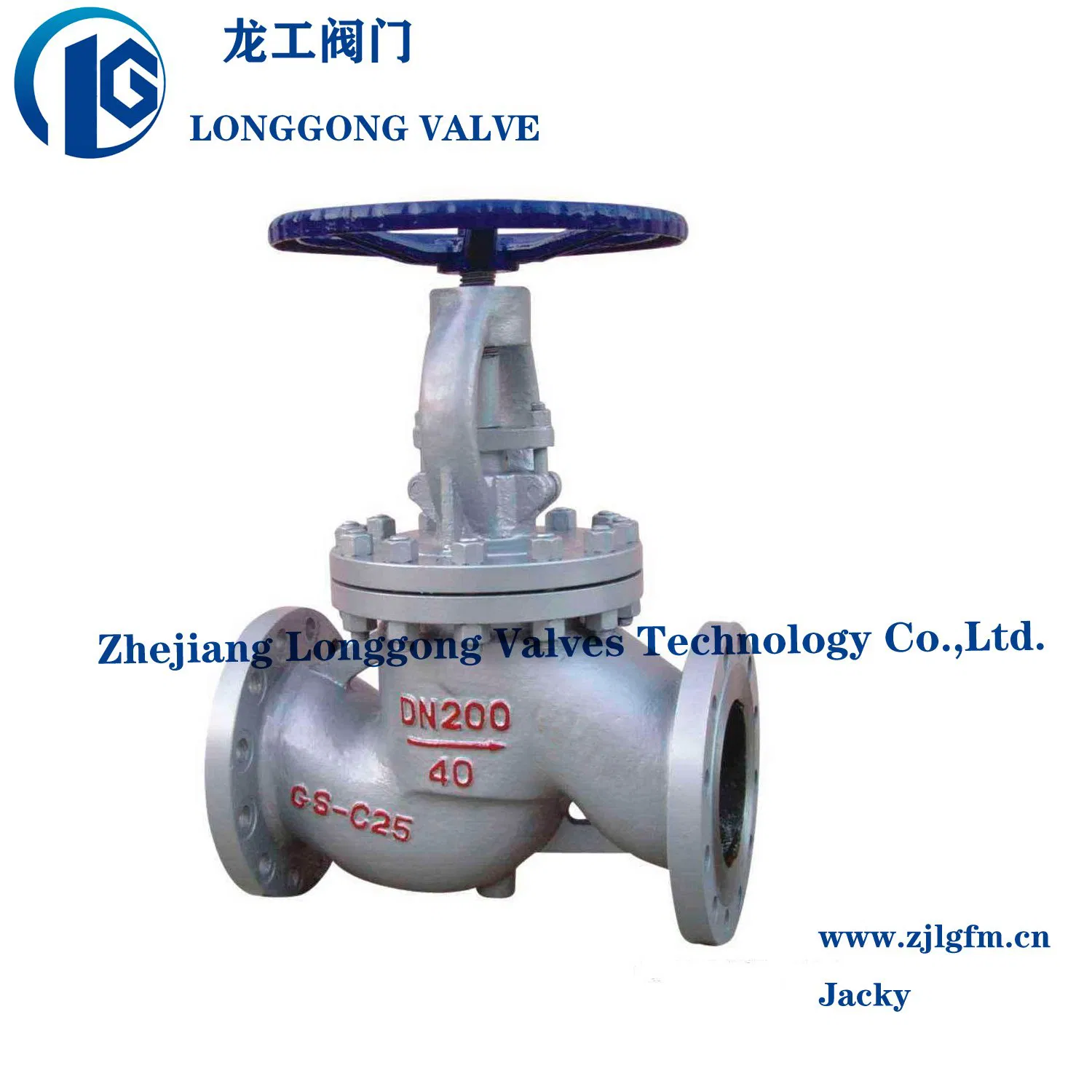

GB/DIN Wcb/CF8/CF8m Pn16-40 Flanged Globe Valve BS1868

Product Description

FEATURES&BENEFITS

2"~48" (DN50~DN1200)
W. P.: PN16-64
W. T.:-20ºC ~400ºC (-4ºF~752ºF)
Design:GB/T 1223
Flange Dimension:JB/T 79
Face to Face:GB/T 12221
Rising stem
Inspection and test :JB/T 9002
Material: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.
Dics and Stem: WCB,SS304, SS316,SS304L,SS316L,SS410,SS416.etc
Operation: Handwheel/Gear box
Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater /Marine

Material:

BODY/DISC/BONNET	STEM	SEAT	GASKET	PACKING	TemºC	Medium
WCB	2Cr13	13Cr STL	GRAPHITE 1Crl3/GRAPHITE 0Cr18Ni9Ti OCr18Ni12Mo2Ti	GRAPHITE	≤425	Water,oil,gas
WC1	38CrMoAI 25Cr2MoV				≤450
WC6					≤540
WC9					≤570
ZGCr5Mo					≤540
ZG1Cr18Ni9Ti	1Cr18Ni9Ti				≤200	Acid
ZGCr18Ni12Mo2Ti	1C18Ni12Mo2Ti				≤200	Acid

1.6Mpa Dimension:

1.6MPa	DN	L	D	D1	D2	b	n-Φd	H	D0
RF J41H J41Y J41W J41F J41N 16C 16P 16R 16I	10	130	90	60	40	14	4-Φ14	198	120
	15	130	95	65	45	14	4-Φ14	218	120
	20	150	105	75	55	14	4-Φ14	258	140
	25	160	115	85	65	14	4-Φ14	275	140
	32	180	135	100	78	16	4-Φ18	280	160
	40	200	145	110	85	16	4-Φ18	330	180
	50	230	160	125	100	16	4-Φ18	350	200
	65	290	180	145	120	18	4-Φ18	370	280
	80	310	195	160	135	20	8-Φ18	400	280
	100	350	215	180	155	20	8-Φ18	415	320
	125	400	245	210	185	22	8-Φ18	460	360
	150	480	280	240	210	24	8-Φ23	510	450
	200	600	335	295	265	26	12-Φ23	710	500

2.5Mpa Dimension:

2.5MPa	DN	L	D	D1	D2	b	n-Φd	H	D0
RF J41H J41Y J41W J41F J41N 16C 16P 16R 16I	10	130	90	60	40	16	4-Φ14	198	120
	15	130	95	65	45	16	4-Φ14	218	120
	20	150	105	75	55	16	4-Φ14	258	140
	25	160	115	85	65	16	4-Φ14	275	140
	32	180	135	100	78	18	4-Φ18	280	160
	40	200	145	110	85	18	4-Φ18	330	180
	50	230	160	125	100	20	4-Φ18	350	200
	65	290	180	145	125	22	8-Φ18	400	280
	80	310	195	160	135	22	8-Φ18	355	280
	100	350	230	190	160	24	8-Φ23	415	320
	125	400	270	220	188	28	8-Φ25	460	360
	150	480	300	250	218	30	8-Φ25	510	450
	200	600	360	310	278	34	12-Φ25	710	500
	250	622	425	370	332	36	12-Φ30	786	550
	300	698	485	430	390	40	16-Φ30	925	600

GB/DIN Wcb/CF8/CF8m Pn16-40 Flanged Globe Valve BS1868

FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and ftting over 10 years.We have our own stainless steel foundry in Fujian province.
And we have got ISO9001&TS certificate of Manufacturing and processing of valves and fttings.

2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fttings have
Been exported to especially in North America, South America, South Asia, Europe and Middle East.

3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long- term relationship for our high quality, competitive price and good after-sale service.

4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.

5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.

6 What is your lead time?
It's around 15 days normally. If we have the products in stock, it will be about one week.

7 what is your payment term?
T/T 30% down payment, balance to be paid before shipment.

8 How can I check your factory situation w hile it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.

9 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or ftting we sell is qualified and release the test mill certificate. If possible, We can also send you the sample for checking. Regarding the details, we can discuss if you want to know more about it.

Jacky
ZHEJIANG LONGGONG VALVE TECHNOLOGY CO.,LTD
Web:wz-valve.en.made-in-china.com
