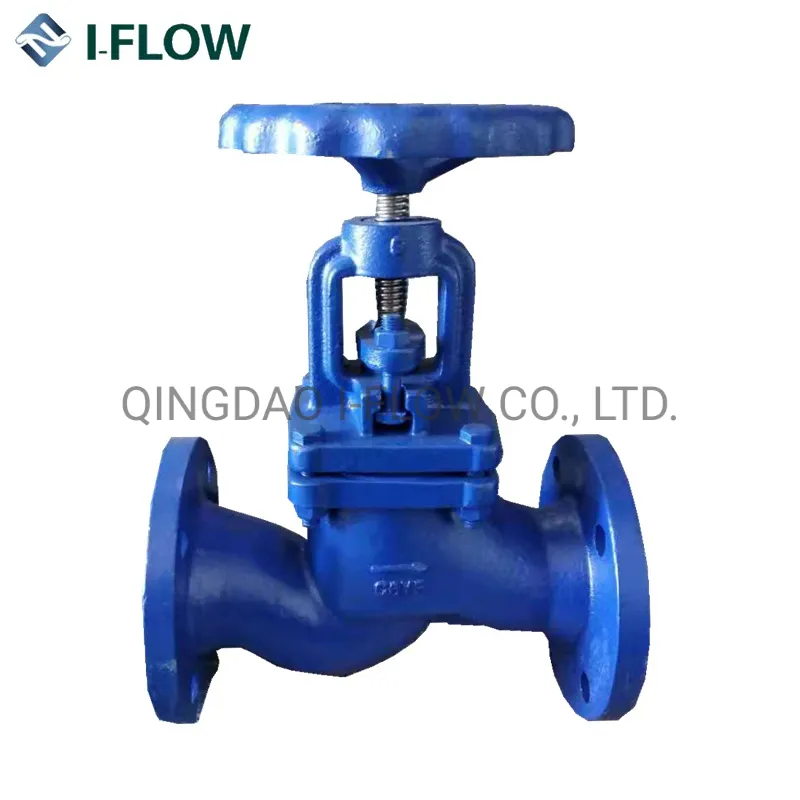

China Flow Regulating Stop Valve with Hemi Sphere Disc Metal Seat in Cast Iron Ductile Iron Material

Product Description

Regulating Stop Valve with Bronze Stainless Steel Trim Parabollic Disc for Marine Sea water

Size DN15-DN350

Nominal Pressure PN10/PN16

Working Temperature -10°C~200°C

Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc

Flow Regulating Stop Valve with Hemi Sphere Disc Metal Seat in Cast Iron Ductile Iron Material

Performance:

Nominal pressue (MPa)		1.0	1.6
Nominal diameter(mm)	Shell	15-350	15-350
Test pressure	Seal	1.5	2.4
(MPa)		1.1	1.76
Applicable temperature		200
Applicable medium		Fresh water, Sewage, Sea water, Air, Vapor,
Operating mode		manual

Standard:

Design & Manufacture	Flange Connection	Face to Face Dimension	Test&Inspection
DIN3356	EN1092-2	EN558-1	EN12266

Material List:

NO.	Part Name	Material
1	Body	Cast Iron/Ductile Iron
2	Body Seat Ring	Cast Bronze
3	Reaction Member	Brass
4	Disc	Cast Bronze
5	Gasket	Brass
6	Swivel Nut	Cast Brass
7	Boll	Steel
8	Body Gasket	Graphite
9	Bonnet	Cast Iron
10	Packing	Graphite
11	Packing Gland	Cast Brass
12	Gland Follower	Ductile Iron
13	Gland Follower Bolts	Steel
14	Gland Follower Nuts	Steel
15	Stem	Brass
16	Yoke Busing	Cast Bronze
17	Screw	Steel
18	Handwheel	Cast Iron
19	Identification	Steel
20	Handwheel nut	Ductile Iron
