Product Description

JIS MARINE VALVE

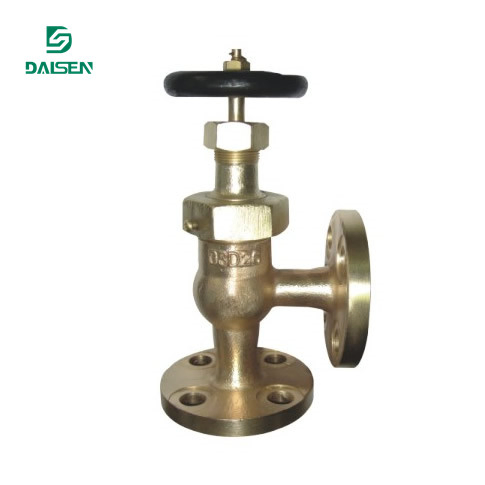

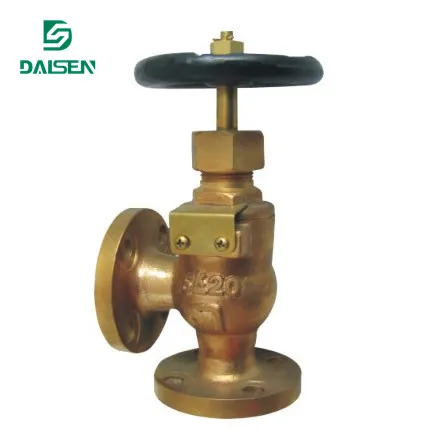

F 7352 Bronze screw-down check angle valves
JIS F 7410 Bronze screw-down check angle valves

Materials Table

		NAME OF PART	MATERIAL
1	ZCuSn5Pb5Zn5	BODY	BC6
2	ZCuSn5Pb5Zn5	BONNET	BC6
3	ZCuSn5Pb5Zn5	DISC	BC6
4	Hpb59-1	STEM	C3771BD OR BE
5	HT200	HANDWHEEL	FC200

/Size Table(7352)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	55	80	60	4	12	9	120	80
20	20	60	85	65	4	12	10	125	100
25	25	65	95	75	4	12	10	140	125
32	32	80	115	90	4	15	12	145	125
40	40	85	120	95	4	15	12	160	140
50	50	100	130	105	4	15	14	197	140
65	65	115	155	130	4	15	14	209	160

/Size Table(7410)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	70	95	70	4	15	12	120	80
20	20	75	100	75	4	19	14	125	100
25	25	85	125	90	4	19	14	140	125
32	32	95	135	100	4	19	16	145	125
40	40	100	140	105	4	19	16	160	140
50	50	120	155	120	8	19	16	196	140
