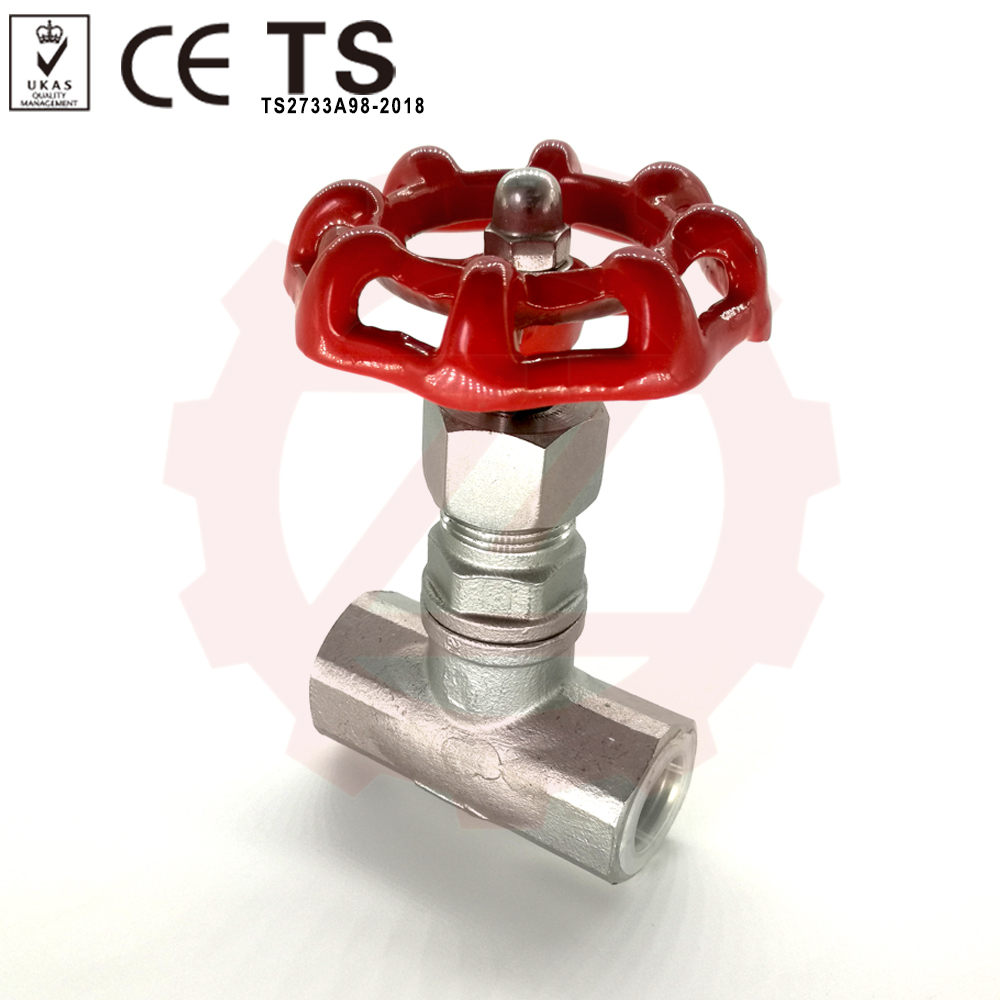

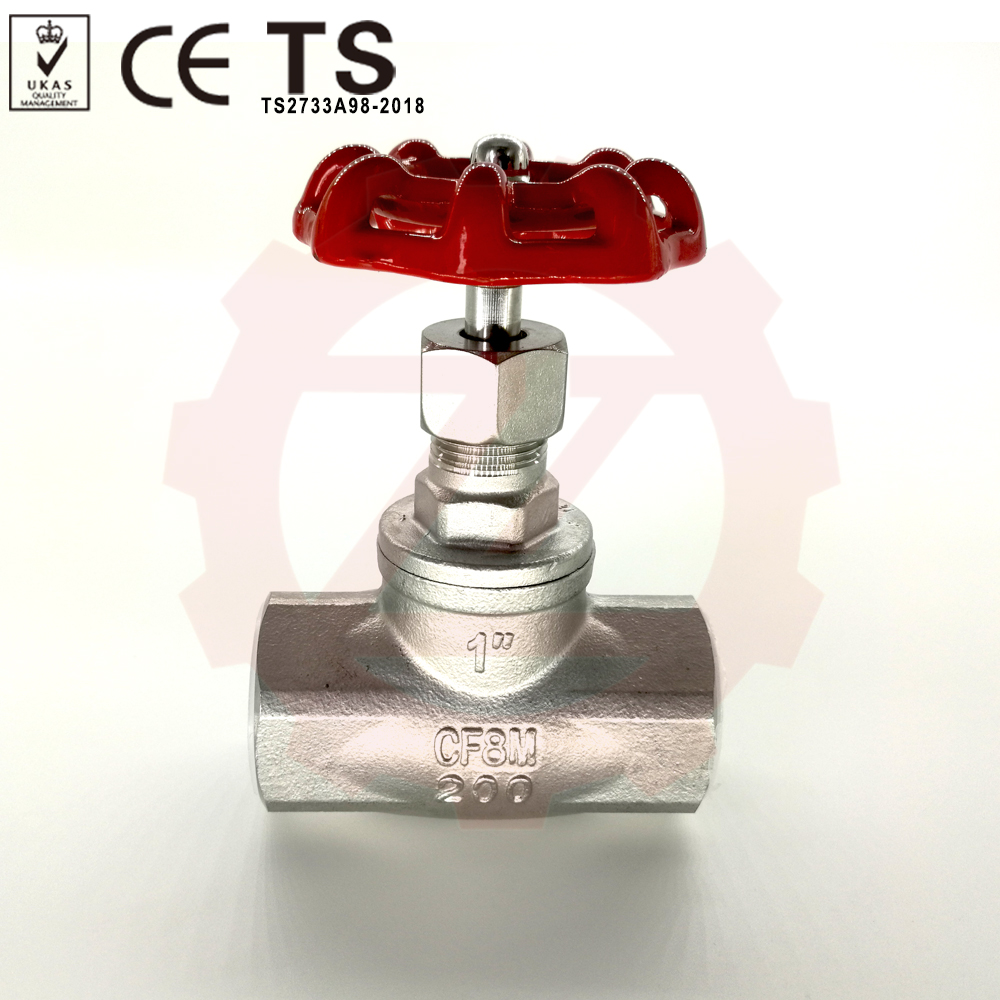

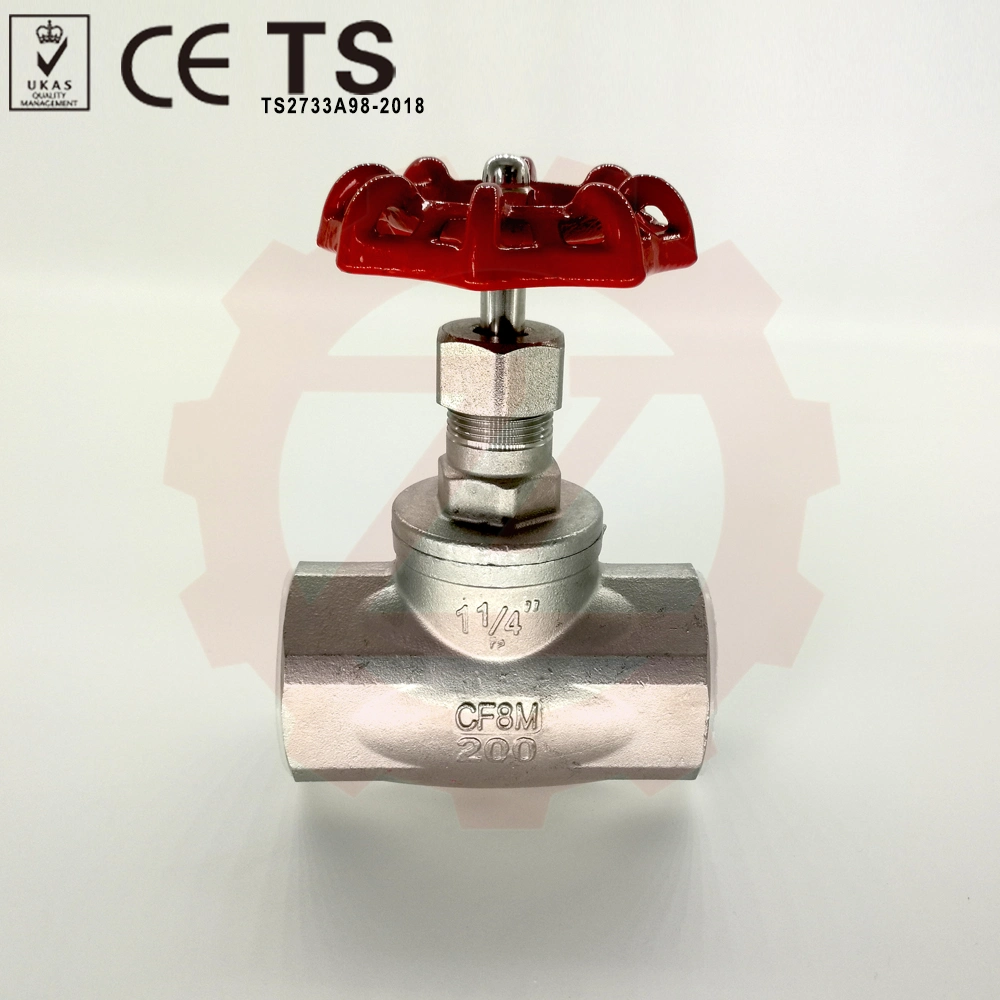

Awwa 2.5" Cast Globe Valve for Water Works Industry
DescriptionScrewed-In BonnetCorrosion Resistant- Made of stainless steel for superior chemical resistance and longer service lifeFull Port Design- Full port construction improves flow characteristics for greater process efficiencies- Reduce pressure drop through the valveInvestment Cast Bod......
Send Inquiry
Product Description
Description
Screwed-In Bonnet
Corrosion Resistant
- Made of stainless steel for superior chemical resistance and longer service life
Full Port Design
- Improves dimensional control and reduces porosity
Blow-Out-Proof Stem
- Stem is bottom loaded to prevent removal while valve is in service
Rising Stem
Type of Drive: Manual (Hand Wheel)
Connection:
- ASME B1.20.1 (NPT)
- DIN 2999, BS 21, ISO 7/1, JIS B0203 (BSP)
- EN 10226, ISO 288/1, JIS B0202 (BSP)
All materials comply with applicable ASTM material specifications
All valves shell and seat tested to ANSI/ASME B16.34, API 598 and MSS-SP-110
Regular Working pressure: 200PSI (PN16)
Regular Working temperature: -20ºC ~ 200ºC (-4ºF ~ 392ºF)
Regular Size range: 1/4" ~ 3" (DN 8 - DN 80)
- Customized service available
Specifications
Company Profile

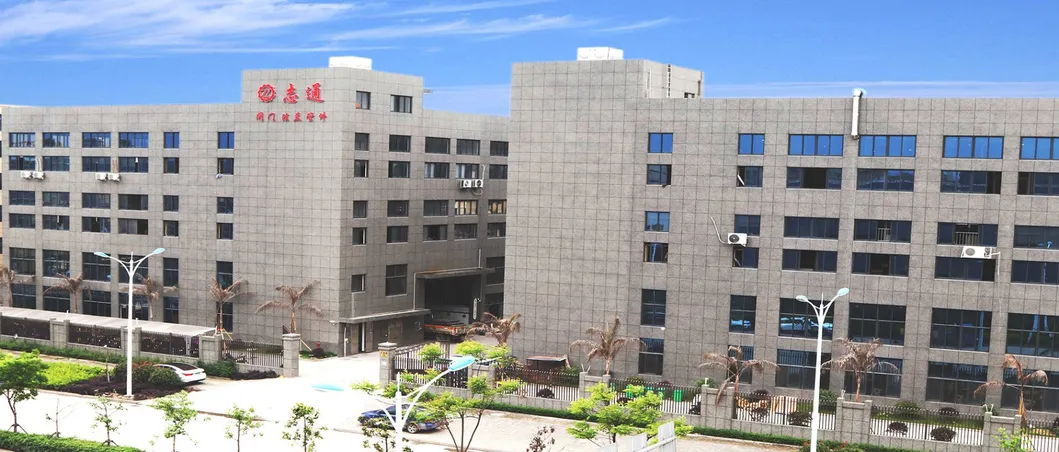

Zhejiang Zhitong Pipe Valve Technology Co.,Ltd. is a professional pipe fittings, valves and flanges manufacturer and exporter for water treatment, construction, petrochemical and oilfield industry. We deliver exceptional value by providing customers with the most important elements: Premium Quality, Reasonable Price and Impeccable Services.
Zhitong designs and builds a broad array of quality products in its ISO 9001 and CE manufacturing facility. Our products adhere to GB, JIS, DIN, EN, API, ANSI/ASME specifications for material content, pressure ratings and quality assurance, ensuring that our customers receive consistent quality and reliability every time. Additionally, we are able to modify existing products or manufacture new designs to meet specific requirements.
Zhitong's vision is to become the leading and foremost company in the pipeline fitting industry, and to be known as a company who always keeps our promise of quality products, reasonable pricing, and prompt delivery. By providing a broad range of high quality products at competitive prices, Zhitong pipeline offers its customers a significant advantage in the industrial marketplace. We see ourselves not just as a supplier for our clients, but as their partner in helping them achieved their own goals and objectives.
FAQ
Q: Why would I choose you?
A: We, Zhejiang Zhitong Pipe Valve Technology Co.,Ltd., have dedicated ourselves to research and develop Stainless steel flow equipment over 15 years, such as Pipe fittings, Valves and Flanges

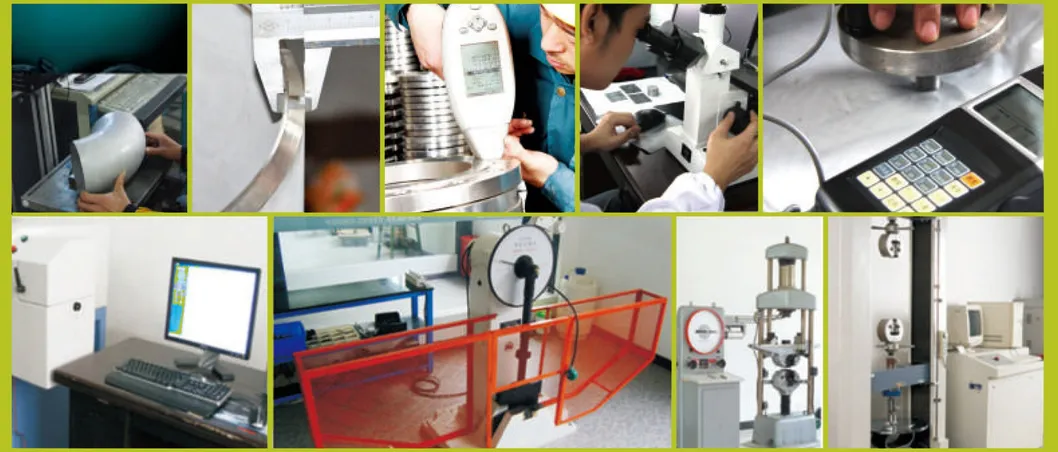

Advanced manufacturing equipment, perfect inspection method would assure the quality of our products. Sovereignty for exporting and importing and over 15-year export experience would ensure our cooperation smooth.
Q: May I have free sample before ordering?
A: Yes, our company is very pleased to send you free samples for quality test, but freight cost would be afforded by your side
Q: What about production time?
A: Sample order: 4 - 7 days if out of stock, or deliver at once
Massive order: 5 - 20 days after getting deposit, depend on exact order
Q: Do your company have the export license?
A: Yes, we have Sovereignty for exporting and importing.
Q: Which trade terms can I choose?
A: Ex-W, FOB, CIF, CNF. As for others, we can negotiate accordingly
Q: How about payment term your company accept?
A: For small testing orders, we accept Western Union and T/T.
For massive order, we accept T/T and L/C
Screwed-In Bonnet
Corrosion Resistant
- Made of stainless steel for superior chemical resistance and longer service life
Full Port Design
- Full port construction improves flow characteristics for greater process efficiencies
- Reduce pressure drop through the valve
Investment Cast Body & Cap- Improves dimensional control and reduces porosity
Blow-Out-Proof Stem
- Stem is bottom loaded to prevent removal while valve is in service
Rising Stem
Type of Drive: Manual (Hand Wheel)
Connection:
- ASME B1.20.1 (NPT)
- DIN 2999, BS 21, ISO 7/1, JIS B0203 (BSP)
- EN 10226, ISO 288/1, JIS B0202 (BSP)
All materials comply with applicable ASTM material specifications
All valves shell and seat tested to ANSI/ASME B16.34, API 598 and MSS-SP-110
Regular Working pressure: 200PSI (PN16)
Regular Working temperature: -20ºC ~ 200ºC (-4ºF ~ 392ºF)
Regular Size range: 1/4" ~ 3" (DN 8 - DN 80)
- Customized service available
Specifications
| Technics | High accurate investment casting * Improves dimensional control and reduces porosity * Forging Valve available | |
| Range | 1/2" - 3". DN15 - DN80 * Other sizes customizable | |
| Pressure Ratio | 200 WOG (PN16) | |
| Material | Body | CF8M / CF8 |
| Bonnet | ||
| Disc | ||
| Seal Ring | SS304 / SS316 | |
| Stem | ||
| Packing | PTFE | |
| Hand Wheel | HT | |
| Gland Nut | Stainless Steel | |
| Packing Gland | ||
| Nut | ||
| Thread Type | ASME B1.20.1 (NPT) DIN 2999, BS 21, ISO 7/1, JIS B0203 (BSP) EN 10226, ISO 288/1, JIS B0202 (BSP) | |
| Port type | Full port | |
| Power | Manual (Hand Wheel) | |
| Design Criterion | API STD 623/API STD 602/EN 13709/BS 1873/GOST 5762/GB/T 12235/DIN 3356 | |
| Inspection Criterion | API 598/ISO 5208/EN 12266-1/JB/T 9092 | |

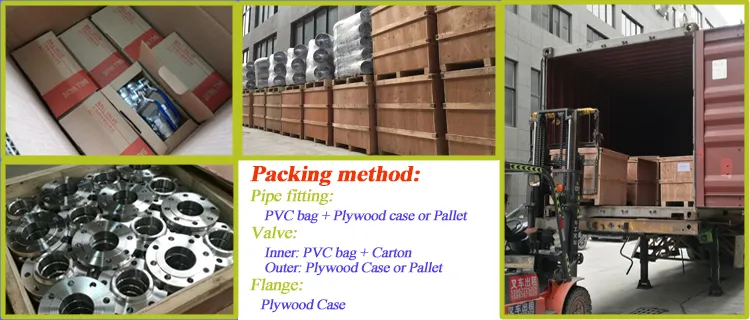

| Package | Poly bag + Carton + Wooden case | |
| Trade Terms | EXW, FOB, CFR, CIF, CIP, etc. | |
| Payment Terms | T/T, L/C, CAD, Credit Card, Western Union, etc. | |
| Delivery Time | Within 20 days for massive quantity Within 7 days for stock products | |
| Application | Petrochemical & Gas industry, chemical, machinery, electric power, shipbuilding, papermaking, construction Water works, Shipbuilding industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
Company Profile
Zhejiang Zhitong Pipe Valve Technology Co.,Ltd. is a professional pipe fittings, valves and flanges manufacturer and exporter for water treatment, construction, petrochemical and oilfield industry. We deliver exceptional value by providing customers with the most important elements: Premium Quality, Reasonable Price and Impeccable Services.
Zhitong designs and builds a broad array of quality products in its ISO 9001 and CE manufacturing facility. Our products adhere to GB, JIS, DIN, EN, API, ANSI/ASME specifications for material content, pressure ratings and quality assurance, ensuring that our customers receive consistent quality and reliability every time. Additionally, we are able to modify existing products or manufacture new designs to meet specific requirements.
Zhitong's vision is to become the leading and foremost company in the pipeline fitting industry, and to be known as a company who always keeps our promise of quality products, reasonable pricing, and prompt delivery. By providing a broad range of high quality products at competitive prices, Zhitong pipeline offers its customers a significant advantage in the industrial marketplace. We see ourselves not just as a supplier for our clients, but as their partner in helping them achieved their own goals and objectives.
 |  |
 |  |
FAQ
Q: Why would I choose you?
A: We, Zhejiang Zhitong Pipe Valve Technology Co.,Ltd., have dedicated ourselves to research and develop Stainless steel flow equipment over 15 years, such as Pipe fittings, Valves and Flanges
Advanced manufacturing equipment, perfect inspection method would assure the quality of our products. Sovereignty for exporting and importing and over 15-year export experience would ensure our cooperation smooth.
Q: May I have free sample before ordering?
A: Yes, our company is very pleased to send you free samples for quality test, but freight cost would be afforded by your side
Q: What about production time?
A: Sample order: 4 - 7 days if out of stock, or deliver at once
Massive order: 5 - 20 days after getting deposit, depend on exact order
Q: Do your company have the export license?
A: Yes, we have Sovereignty for exporting and importing.
Q: Which trade terms can I choose?
A: Ex-W, FOB, CIF, CNF. As for others, we can negotiate accordingly
Q: How about payment term your company accept?
A: For small testing orders, we accept Western Union and T/T.
For massive order, we accept T/T and L/C
