Stainless Steel Non-Rising Stem Female Thread Gate Valve
Product DescriptionStainless Steel Non-Rising Stem Female Thread Gate ValveRST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.G......
Send Inquiry
Product Description
Product Description

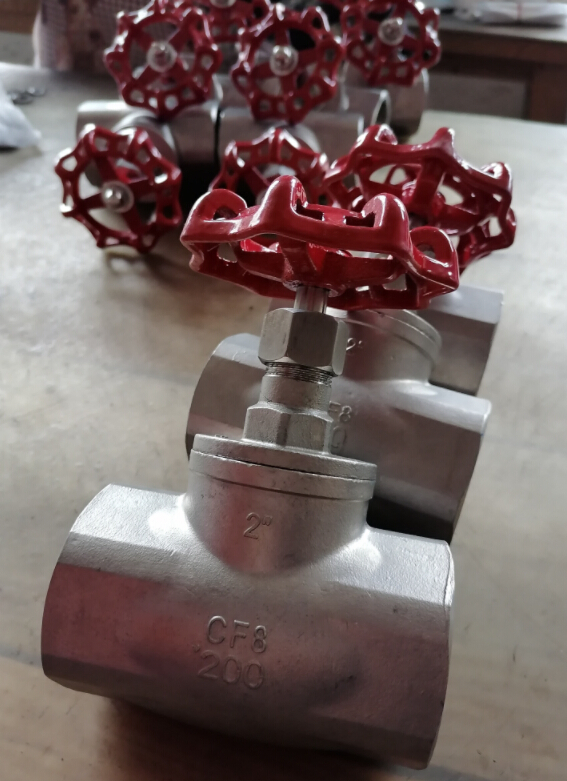

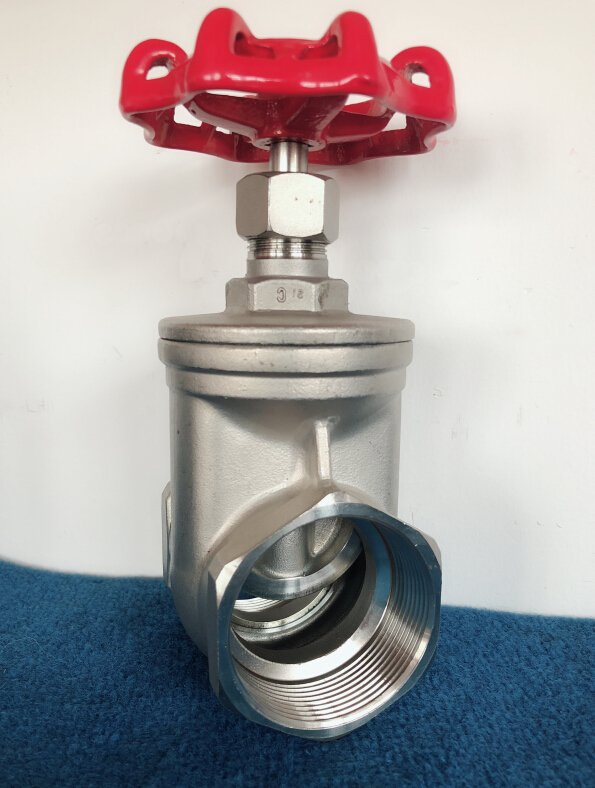

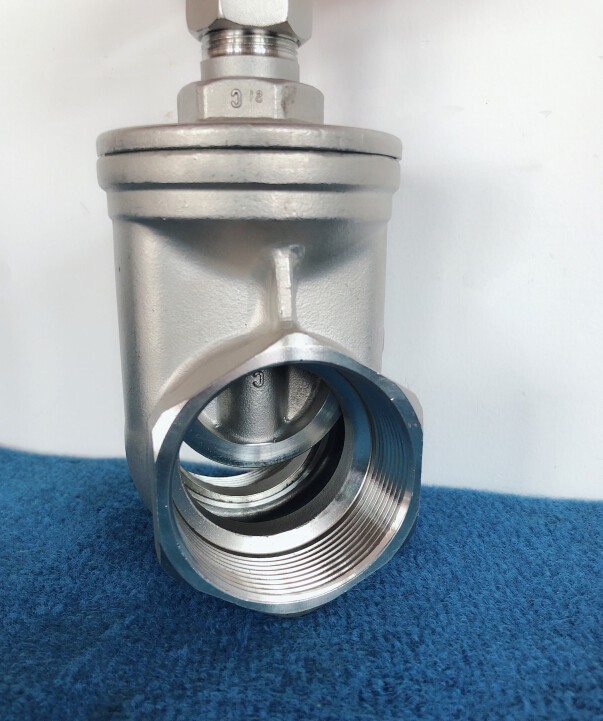

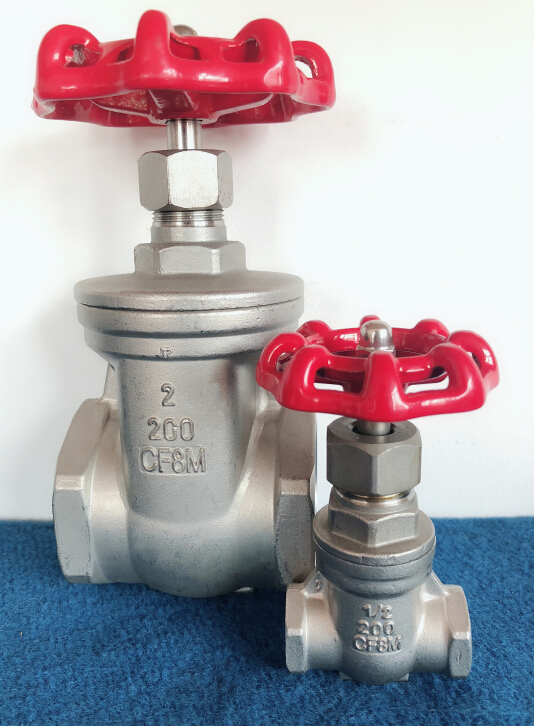

Stainless Steel Non-Rising Stem Female Thread Gate Valve
Features:
Competitive Advantages:
- RST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.
- Gate Valve mainly has Thread 200WOG Gate Valve, API600 Flanged ends Gate Valve, DIN F4/F7 Stainless Steel Flanged ends Gate Valve, Carbon Steel Bellow Seal Gate Valve, Forged Steel A105 Gate Valve, 800LB Thread ends Gate Valve, F11/F22/F51 1500LB Flanged ends Gate Valve, Butt Welded Gate Valve, Pressure Sealed Socket Welded Gate Valve, Flanged ends 2500LB High Pressure Gate Valve, 150LB~900LB WCB Flanged Gate Valve, Rising Stem Gate Valve, Non-Rising Stem Gate Valve, Gear Operated Gate Valve, Gate Valve with Pneumatic/Electric Actuator.
- Gate valves are characterised as having either a rising or a non-rising stem. Rising stems provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated. Non-rising stem valves may have a pointer threaded onto the upper end of the stem to indicate valve position, since the gate travels up or down the stem on the threads without raising or lowering the stem. Non-rising stems are used underground or where vertical space is limited.
| Product Name | Stainless Steel Non-Rising Stem Female Thread Gate Valve |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/2''~4'' ( DN15~DN100) |
| 3. Thread standard | ISO9001 & CE, TS |
| 4. Port | Full Port |
| 5. Working Pressure | 200WOG/PSI |
| 6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
| 7. Working Temp. | -29~425ºC, or according to customer requirements for different industry. |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
Features:
- 200 WOG @ 350 °F
- 316 stainless steel
- Screwed bonnet
- Solid wedge disc
- Non-rising stem
- Hydrostatic shell test at 300 psi
- Hydrostatic seat test at 220 psi
- Threaded or socket weld ends
Competitive Advantages:
- Our products is guaranteed within 18 months after delivery.
- We offer free sample if interest before orders.
- Technology renovation, process improvement, structure optimization and quality improvement.
- Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
- Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
- 100% inspection & testing before delivery.
- Third party inspection on customer requirement.
| No. | Part Name | Qty | Material |
| 1 | Body | 1 | 316 Stainless Steel |
| 2 | Core | 1 | 316 Stainless Steel |
| 3 | Bonnet | 1 | 316 Stainless Steel |
| 4 | Packing | 1 | PTFE |
| 5 | Gland Nut | 1 | 304 Stainless Steel |
| 6 | Hand wheel | 1 | Aluminum |
| 7 | Name Plate | 1 | Aluminum |
| 8 | Nut | 1 | 304 Stainless Steel |
| 9 | Stem | 1 | 316 Stainless Steel |
| 10 | Metal Podding | 1 | 304 Stainless Steel |
| 11 | Washer | 1 | 316 Stainless Steel |
| 12 | Seal | 1 | PTFE |
