SLAB GATE VALVE (NON-RISING STEM)The Non-rising stem slab gate valves manufactured by Jianhu Youyao Petroleum Machinery Factory. available in temperature classes L, P, R, S, T, and U specified in API 6A. Gate valves to be used in the 350or 650 high temperature can besupplied on reque......
Send Inquiry
Product Description
SLAB GATE VALVE (NON-RISING STEM)
The Non-rising stem slab gate valves manufactured by Jianhu Youyao Petroleum Machinery Factory. available in temperature classes L, P, R, S, T, and U specified in API 6A. Gate valves to be used in the 350
or 650 high temperature can be
supplied on request. Gate valves manufactured by our company are
available in 3000psi, 5000psi and 10000 , 15000psi working pressure, nominal size from
1-13/16 through 13-1/8 ,material classes from AA through FF, product specification levels (PSL) from 1 through 3 and performance requirement (PR) 1.
SPECIFICATION:
Manufactured and Tested in Accordance with API Spec 6A
Simple structure and renewable gate and seat assembly.
One-piece and double-acting gate with long service life.
Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing minimize operational torque.
Bearing cap is provided with a grease cup to make it easy to inject lubricating grease
in the field.
Threaded packing gland allows removal of bearings and stem packing under line pressure.
Both the bolted bonnet and modern bonnet seal ring provide simple structure and reliable sealing.
The Non-rising stem slab gate valves manufactured by Jianhu Youyao Petroleum Machinery Factory. available in temperature classes L, P, R, S, T, and U specified in API 6A. Gate valves to be used in the 350
or 650 high temperature can be
supplied on request. Gate valves manufactured by our company are
available in 3000psi, 5000psi and 10000 , 15000psi working pressure, nominal size from
1-13/16 through 13-1/8 ,material classes from AA through FF, product specification levels (PSL) from 1 through 3 and performance requirement (PR) 1.
SPECIFICATION:
Manufactured and Tested in Accordance with API Spec 6A
Simple structure and renewable gate and seat assembly.
One-piece and double-acting gate with long service life.
Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing minimize operational torque.
Bearing cap is provided with a grease cup to make it easy to inject lubricating grease
in the field.
Threaded packing gland allows removal of bearings and stem packing under line pressure.
Both the bolted bonnet and modern bonnet seal ring provide simple structure and reliable sealing.
The sealing surfaces of the gate and seat are hardfaced for wear and corrosion resistance.
Wave springs are installed between the body and seat and between the gate and seat. The gate and seat still maintain a positive metal to metal seal under low pressure.
Floating gate design requests the hand wheel to be backed off 1/4 turn after its rotation can go no further.
Note:
Under pressure, the valve is forbidden to be semi-shrouded, for it will do great harm to the gate valve and great reduce the service life of the valve.

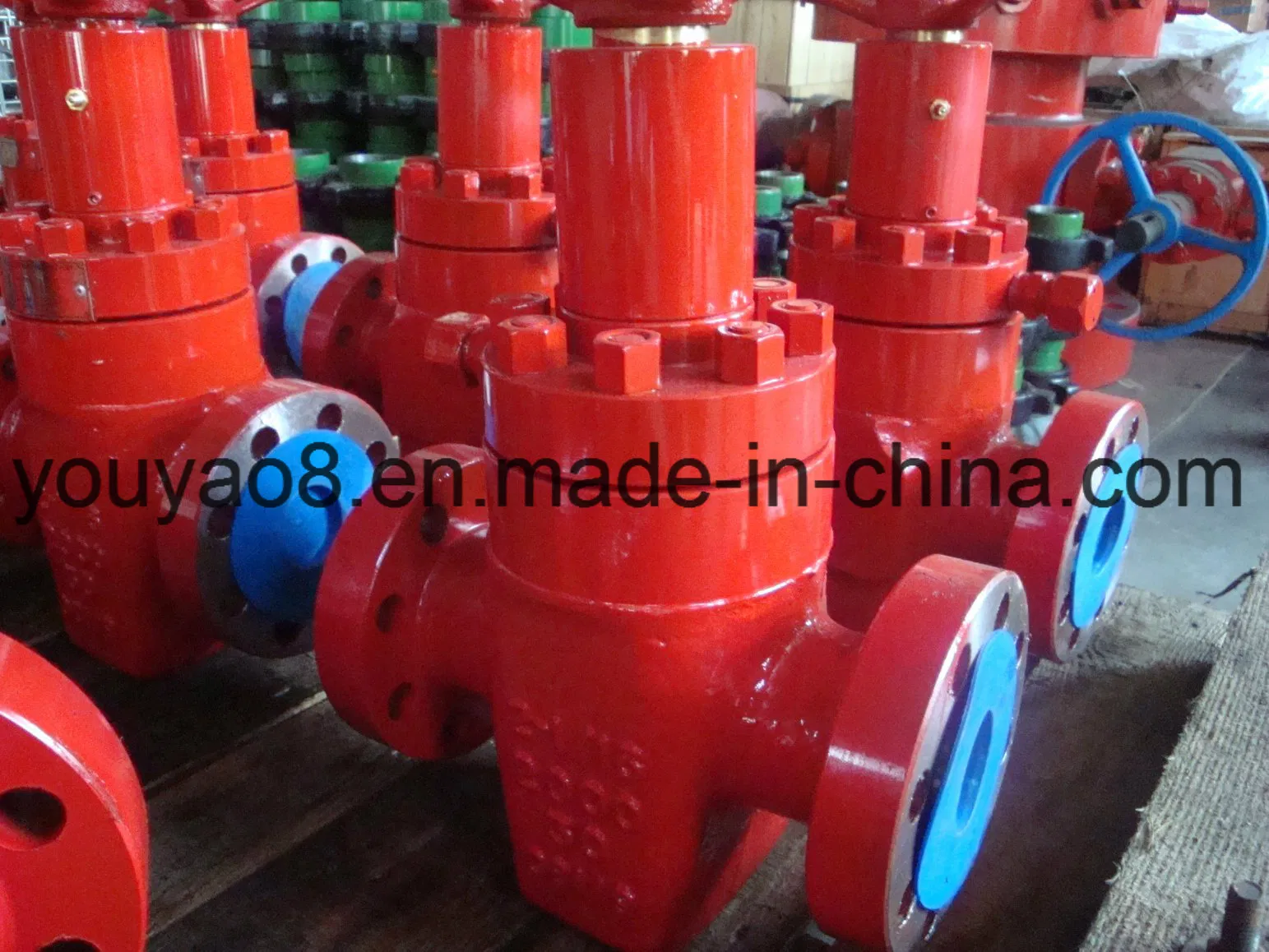

5000psi Flanged Ends 5000psi Threaded Ends 10000psi Flanged Ends

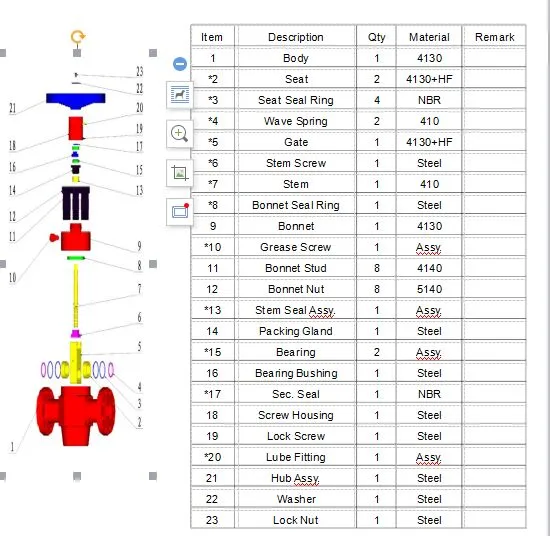

PARTS LIST
* Major Repair One Each For One Year's Service
we have got API approved with our license number 6A-1227, 16C-0174, so plz find the following our valves and parts in stock or under production now:
CAMERON FC EE, PSL3, PR1 valves
1-13/16 10000psi (40pcs)
2-1/16 10000PSI (900pcs)
2-1/16 15000PSI (55pcs)
2-9/16 10000PSI (60pcs)
3-1/16 10000PSI (60pcs)
4-1/16 10000PSI (100pcs)
4-1/16 15000PSI (50pcs)
5-1/8 100000psi (55pcs)
7-1/16 100000psi (44pcs)
CAMERON FC Pneumatic VALVE EE,PSL3,PR1
2-1/16 5000PSI (10pcs)
2-1/16 10000PSI (20pcs)
3-1/16 10000PSI (10pcs)
CAMERON FC HY VALVE EE,PSL3,PR1
2-1/16 15000PSI (30pcs)
3-1/16 15000PSI (20pcs)
CAMERON FLS VALVE,EE,PSL3,PR1
7-1/16 10000PSI BALL SCREW FLS VALVE (10pcs)
410SS+supersonic tungsten caribde gates and seats:
1-13/16" 10000PSI 450sets
2-1/16" 10000PSI, 15000PSI 300sets
2-9/16" 10000PSI, 15000PSI 200sets
3-1/16" 10000PSI 400sets
3-1/16" 15000PSI 100sets
4-1/16" 10000PSI 300sets
4-1/16" 15000PSI 200sets
5-1/8" 10000PSI 350sets
7-1/16" 10000PSI 300sets
CAMERON WKM
2-1/16" 5000PSI 300SET
3-1/8" 5000PSI 50 sets
4-1/16" 5000psi 50sets
7-1/16" 20sets
CAMERON DEMCO
2" 5000PSI 40 sets
3" 5000psi 40sets
4" 5000psi 30sets
5" 5000psi 50sets
DEMCO 2" 7500PSI 20 sets
3" 7500psi 15sets
4" 7500psi 20 sets
5" 7500psi 30 sets
UNIONS
FIG206 2" 150, 3" 100, 4" 300PCS
FIG602,1502 2" 100, 3" 150, 4" 100PCS under production
Also type of BOPS including models as following, total quantity 50sets:
21-1/4" 2k annular
Double-ram 21 1/4" 3K
annular 13 5/8" 5K
Double-ram 13 5/8" 10K
Single-ram 13 5/8" 10K
Annular-11" 10K
D-Ram 11" 15K
S-ram 11" 15K
Annular-9" 10K
D-Ram 11" 15K
S-ram 9" 15K
D-Ram 9" 15K
Annular-7" 10K
D-Ram 7" 15K
S-ram 7 " 15K
Annular - 7 " 5K
D-Ram 7" 10K
S-ram 7 " 10K
D-Ram 7" 5K
S-ram 7 " 5K
XQ140-12YA 15pcs
XQ140-12YT 6pcs
TQ340/35 7pcs
ZQ127-25Y 15pcs
XQ114-6YB 13pcs
XQ89/3YB 11pcs
HYDRAULIC POWER TONG, MODEL YD160, 3 SETS
As you can see that our production range is very wide, for any need or inquiry of the above, just contact with me freely, looking forward to start our cooperation through our mutual efforts and your further reply would be highly appreciated.
