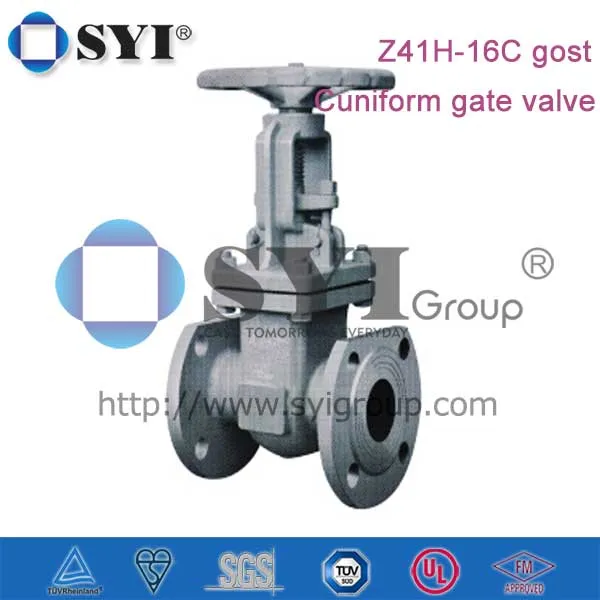

Russia Standard Z41h- 16c GOST Gate Valve
Welcome to SYI Group Product DescriptionMain parts and materials Parts nameMaterialValve body.BonnetWCBDiscWCB+Stainless steelStemCarbon steel.Stainless steelYoke nutBrassFunction and specificationTypeNominal pressure(MPa)Testing pressureSuitable temperature( °C )SuitablemediumStrength(Water......
Send Inquiry
Product Description
Welcome to SYI Group
Main parts and materials
| Parts name | Material |
| Valve body.Bonnet | WCB |
| Disc | WCB+Stainless steel |
| Stem | Carbon steel.Stainless steel |
| Yoke nut | Brass |
Function and specification
| Type | Nominal pressure (MPa) | Testing pressure | Suitable temperature( °C ) | Suitable medium | |
| Strength(Water)(MPa) | Enclose(Water)(MPa) | ||||
| Z41H-16C | 1.6 | 2.4 | 1.8 | ≤425 | Water Vapour Oil |
Outline and connecting measurement
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight(kg) | ||||||||
| L | D | D1 | D2 | b-f . | Z ×Φd | H | H1 | D0 | |||
| Z41H-16C | 50 | 180 | 160 | 125 | 102 | 16-3 | 4 ×Φ18 | 288 | 341 | 180 | 14.61 |
| 80 | 210 | 195 | 160 | 133 | 18-3 | 4 ×Φ18 | 343 | 426 | 215 | 24 | |
| 100 | 230 | 215 | 180 | 158 | 20-3 | 8×Φ18 | 392 | 486 | 245 | 33.9 | |
| 150 | 280 | 280 | 240 | 212 | 24-3 | 8 ×Φ22 | 559.5 | 704 | 275 | 67.03 | |
| 200 | 330 | 335 | 295 | 268 | 26-3 | 12×Φ22 | 696 | 896 | 320 | 107.8 | |
Standard export package or as per your requirements, 20-25 Days depends on the demand quantity, stable manufacturing capability.
