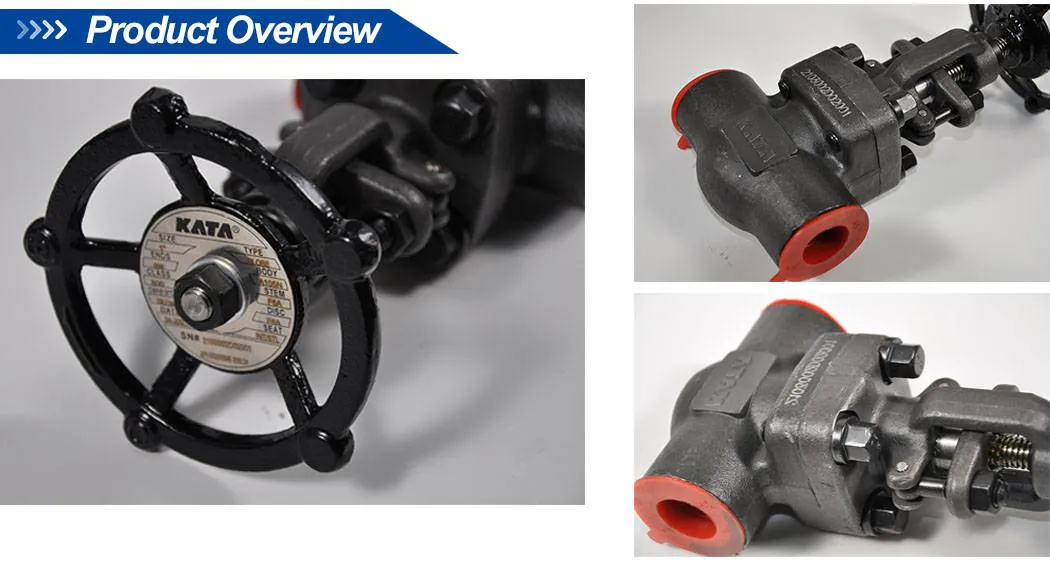

Product Description

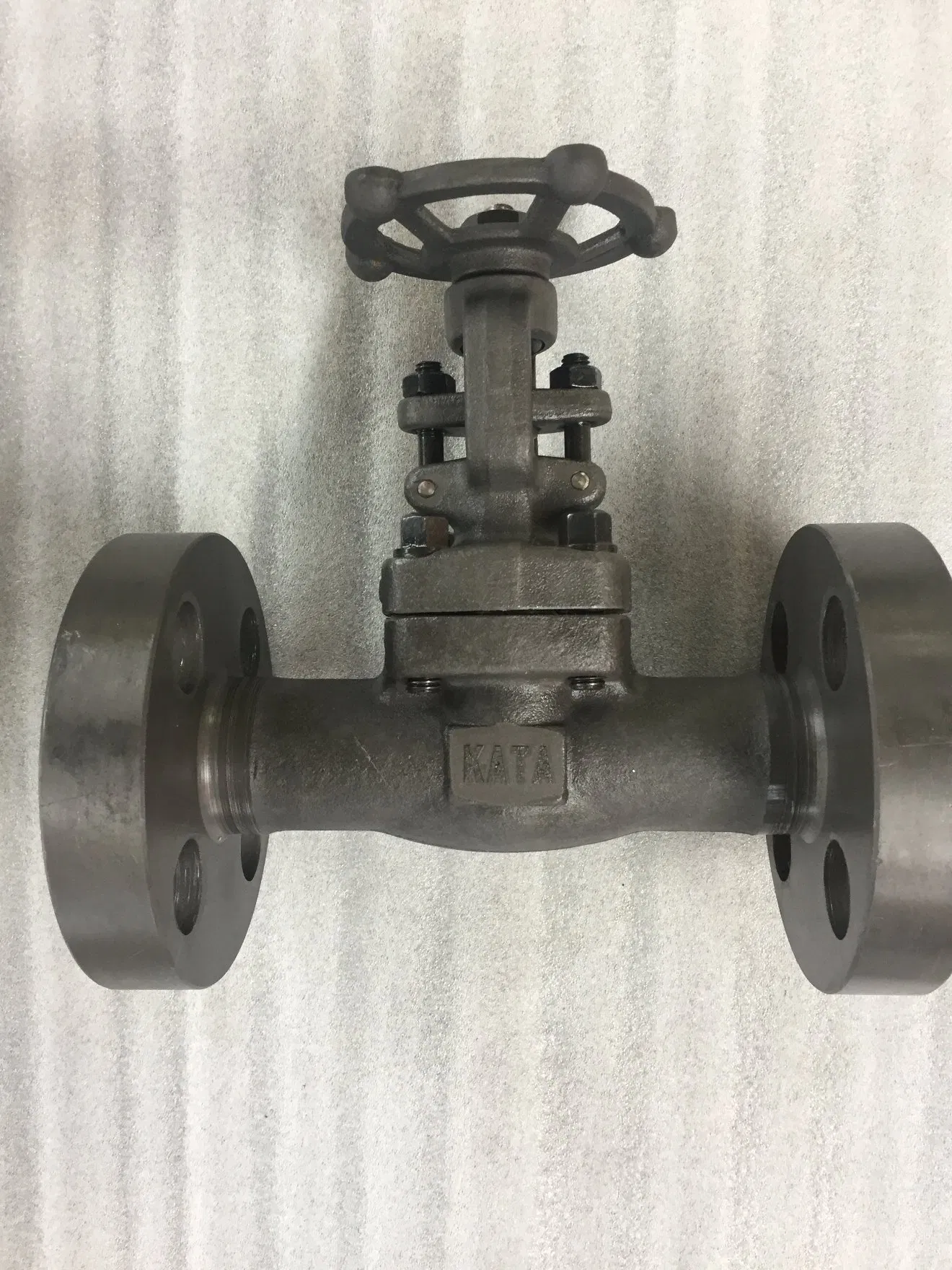

Integral Flanged Gate Valve, A105N, 1/2-4 Inch, 150-1500 LB
Standard Materials:| Body & Bonnet | A105; LF2; F5; F11; F22; F304(L); F316(L); F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.. |
| Seat | ASTM A2476 410 +HF |
| Wedge | ASTM A276 420 |
| Stem | ASTM A276 410 |
| Gasket | 304+ GRAPHITE |
| Handwheel | ASTM A197 |
| Packing | GRAPHITE |
| Gland | ASTM A276 410 |

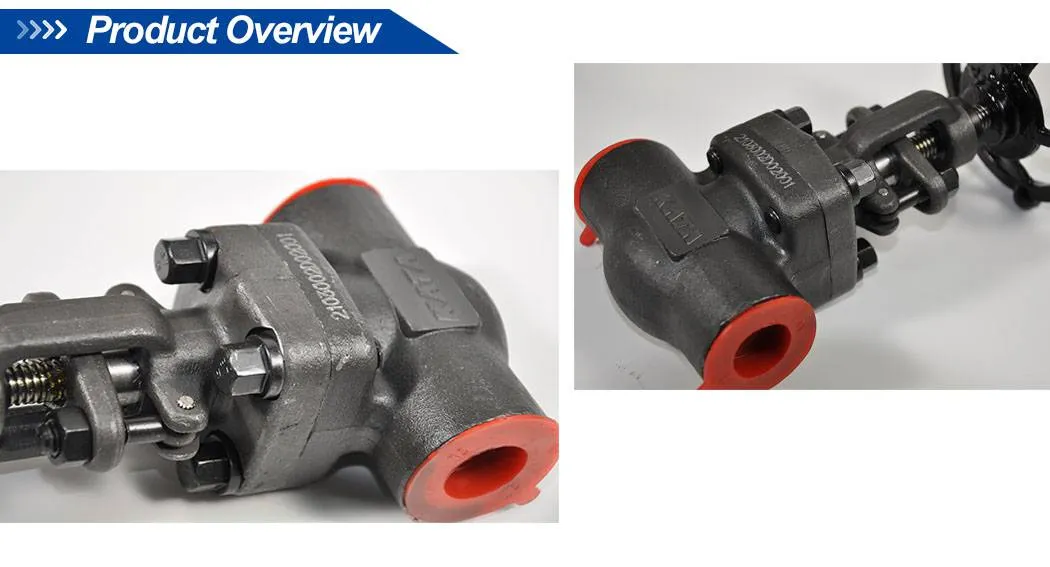

Carbon Steel A105N Forged Ball Gate Valve for Class150~2500 The specifications
Design & Manufacturing: API602, BS5352, ASME B16.34/B16.11/B1.20.1/B16.25
Valve Size: 1/2''-2''
Applicable Rating: Class 150Lb ~ 1500Lb
Temperature Rating: Up to 500 Celsius
Structure Features:
1) End connection: Thread, Socket-Welded or Butt-Welded
2) Outside Screw & Yoke, Bolted Bonnet
3) Reduced bore/ Full Bore
4) Rising Stem/ Non-Rising Handwheel
