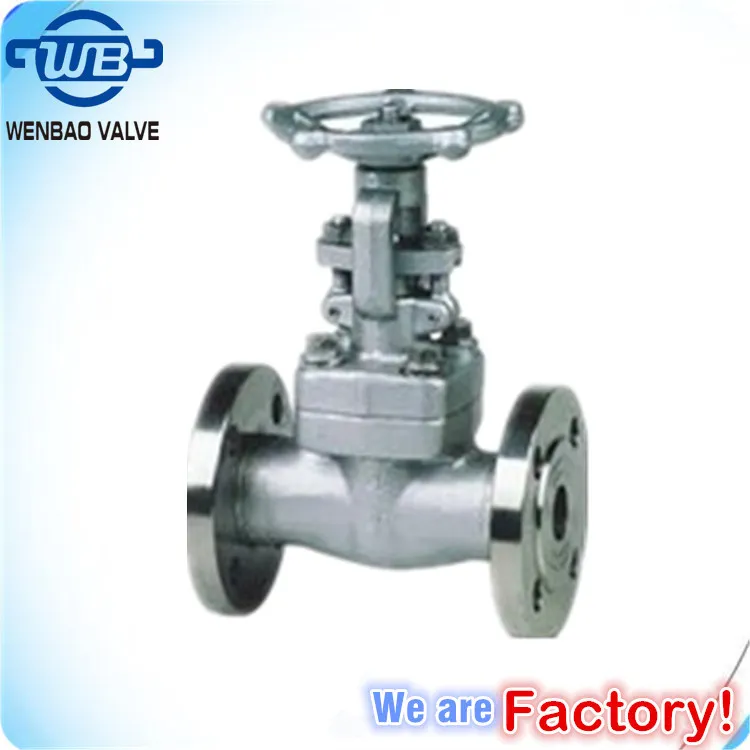

Forged Stainless Steel Flanged Gate Valve Class 150

Product Description

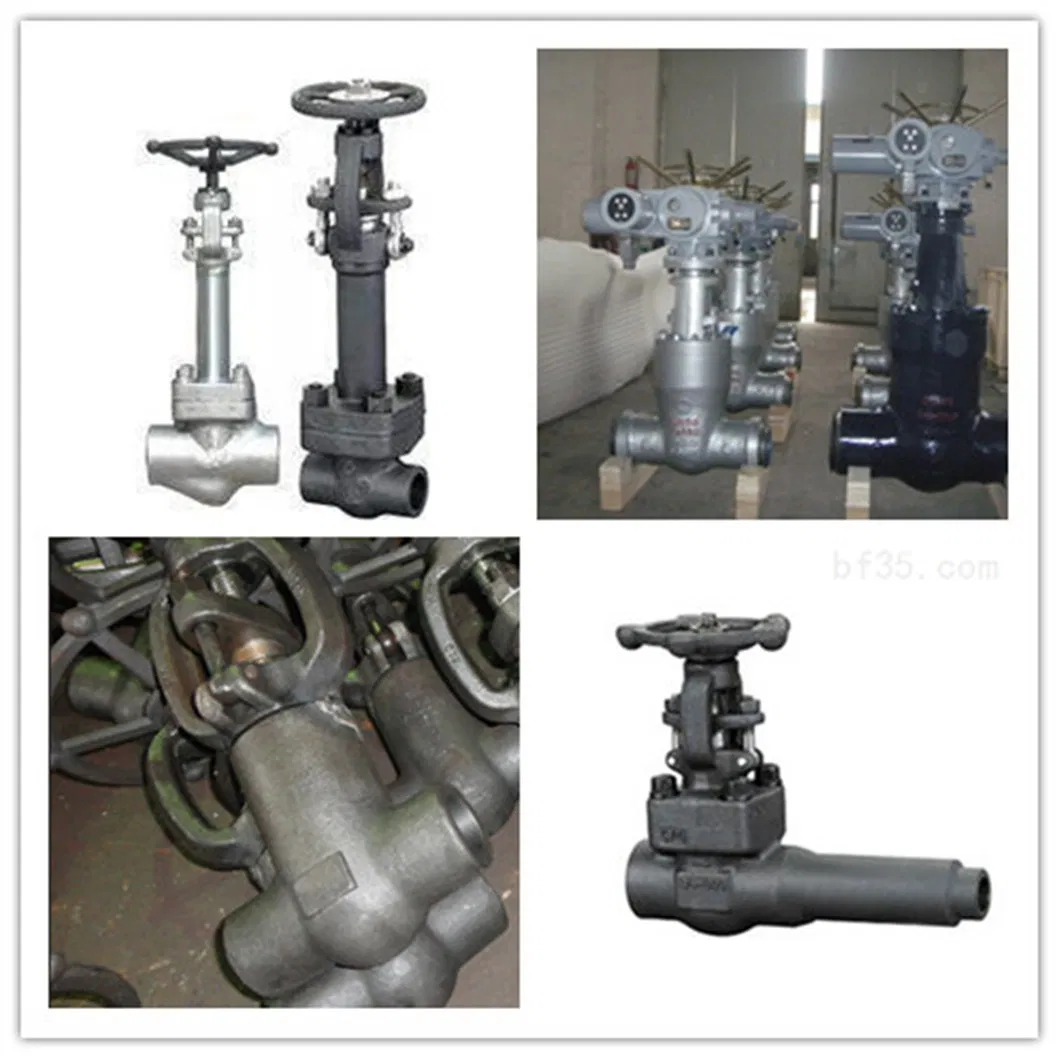

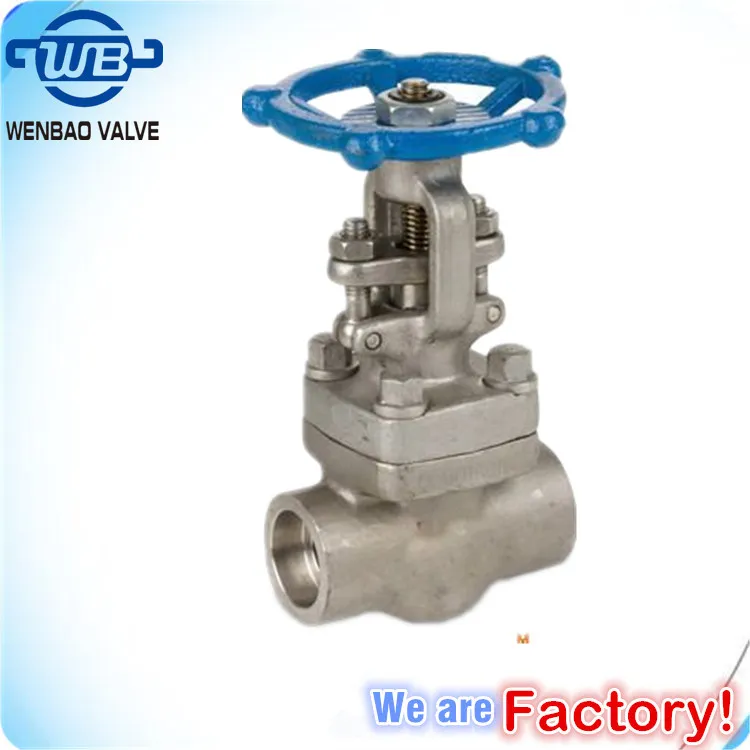

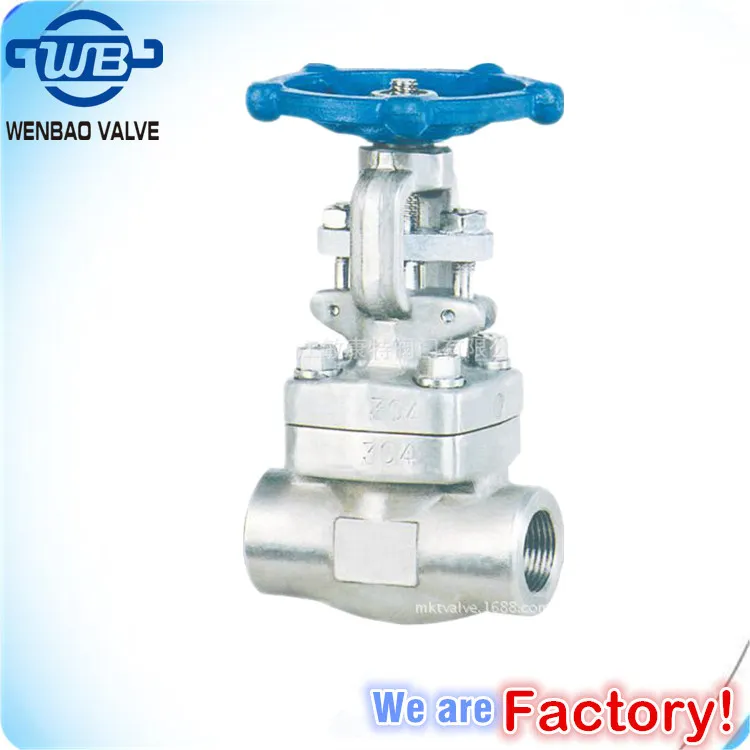

WB-153 Forged Steel Gate Valve
Features:
1. Design and manufacture: ASME/ANSI B16.34; API602; GB/T 12224; GB/T12228; GB/T12225
2. Ends connection
1) SW dimension: ASME/ANSI B16.11; JB/T1761
2) Screwed dimension: ASME/ANSI B1.201(NPT); GB/T7306-87(RC)
3. Structural feature: B.B. Or W.B; OS&Y
4. Sealing accessory material: according to "ordering guide"
5. Body material: A105; LF2; F11; F22; F304; F316; F304L; F316L
6. Valve inspection and test according to API 598 or GB/T 13927

Main Dimensions

NPS	R.P	(mm)	8	10	15	20	25	32	40	50
	R.P	(in)	1/4"	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
	F.P	(mm)		8	10	15	20	25	32	40	50
	F.P	(in)		1/4"	3/8"	1/2"	3/4"	1"	11/4"	11/2"	2"
d		R.P	7	10	10	13	18	24	29	36.5
d		F.P		7	10	13	18	24	29	36.5	45.5
L		R.P	79	79	79	92	111	120	120	140
L		F.P		79	79	92	111	120	120	140	178
H(OPEN)		R.P	149	158	158	169	197	236	246	283
H(OPEN)		F.P		158	158	169	197	236	246	283	330
W		R.P	100	100	100	100	125	160	160	180
W		F.P		100	100	100	125	160	160	180	200
Weight(kg)		R.P	2.1	2.1	2	2.3	4.3	5.9	6.9	11.1
Weight(kg)		F.P		2.1	2.3	4.3	5.9	6.9	6.9	15.2

Company Overview

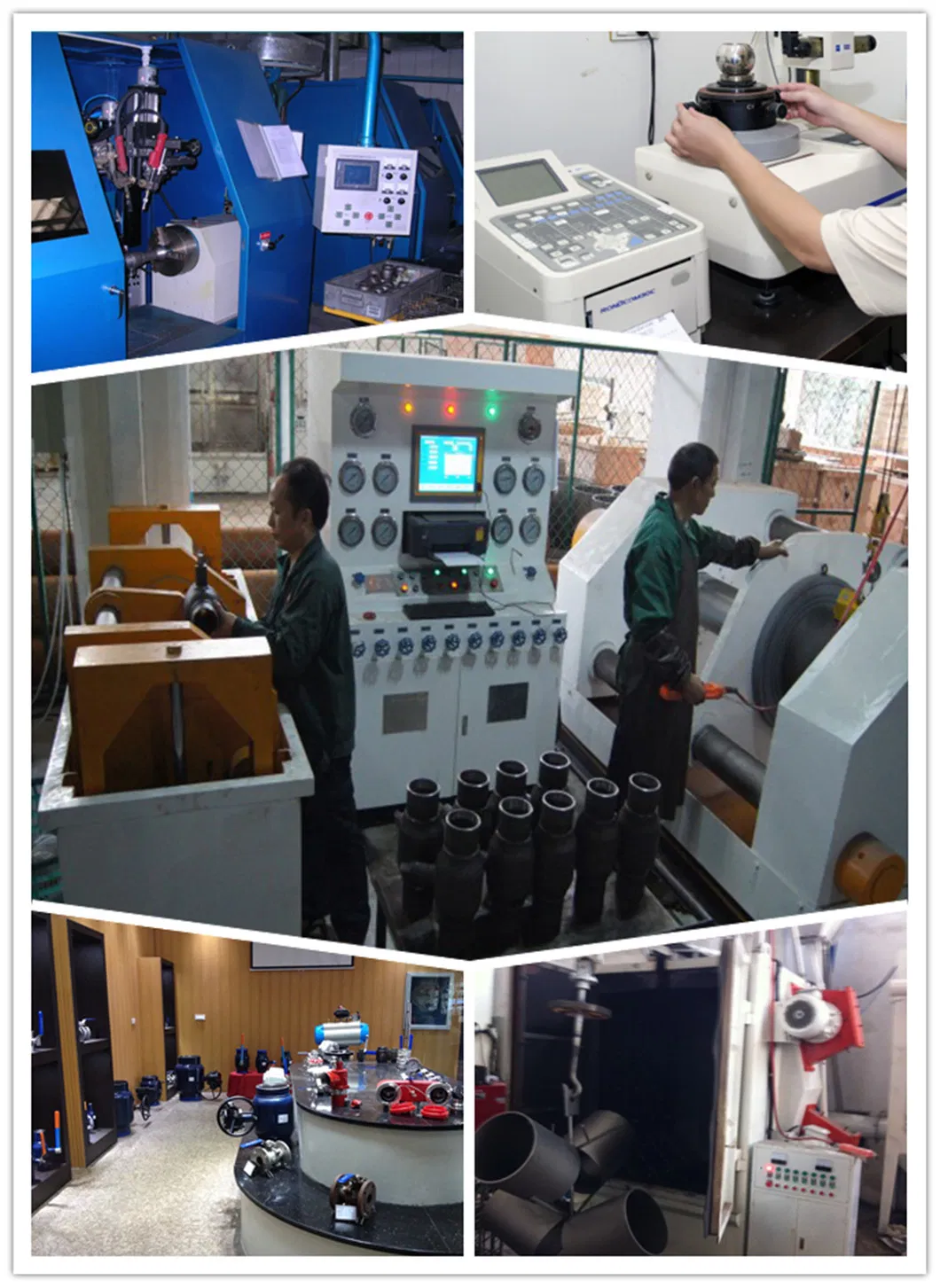

Zhejiang Wenbao Valve Co.,Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve,1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001:2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea,CE of Europe, etc.
