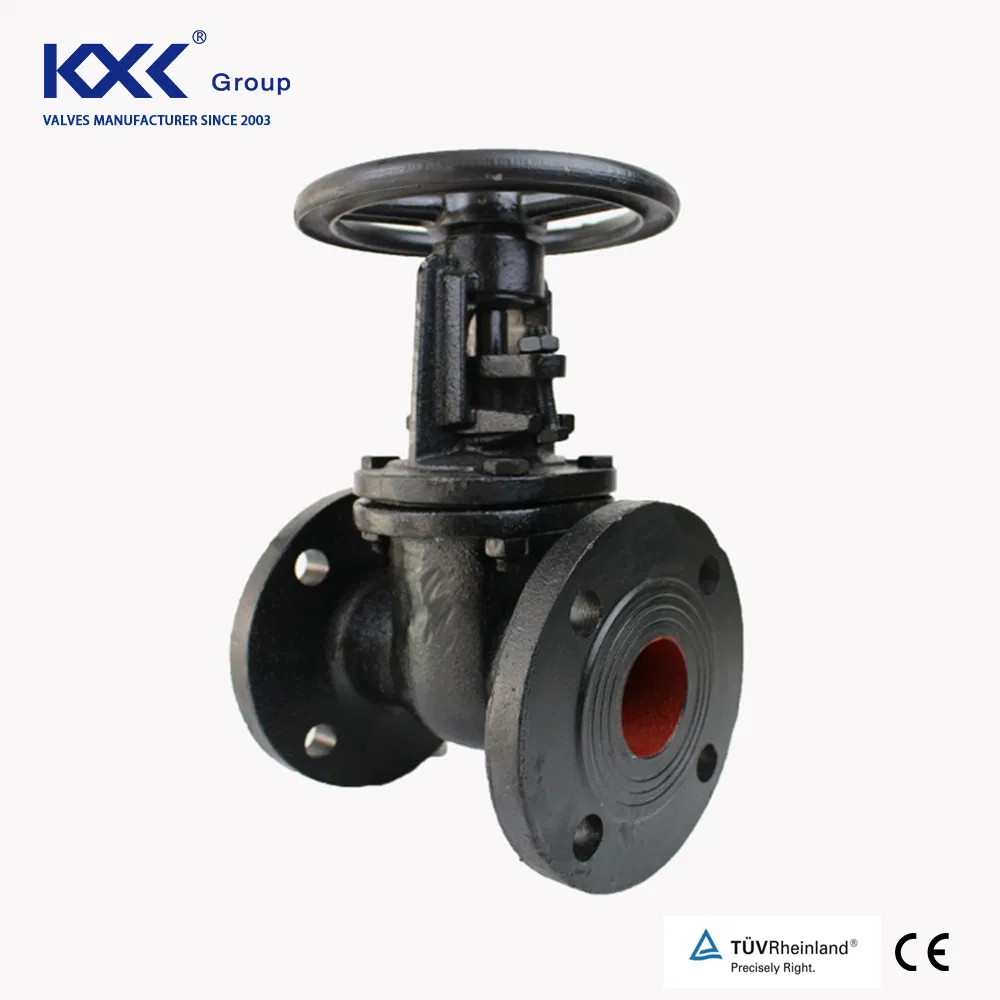

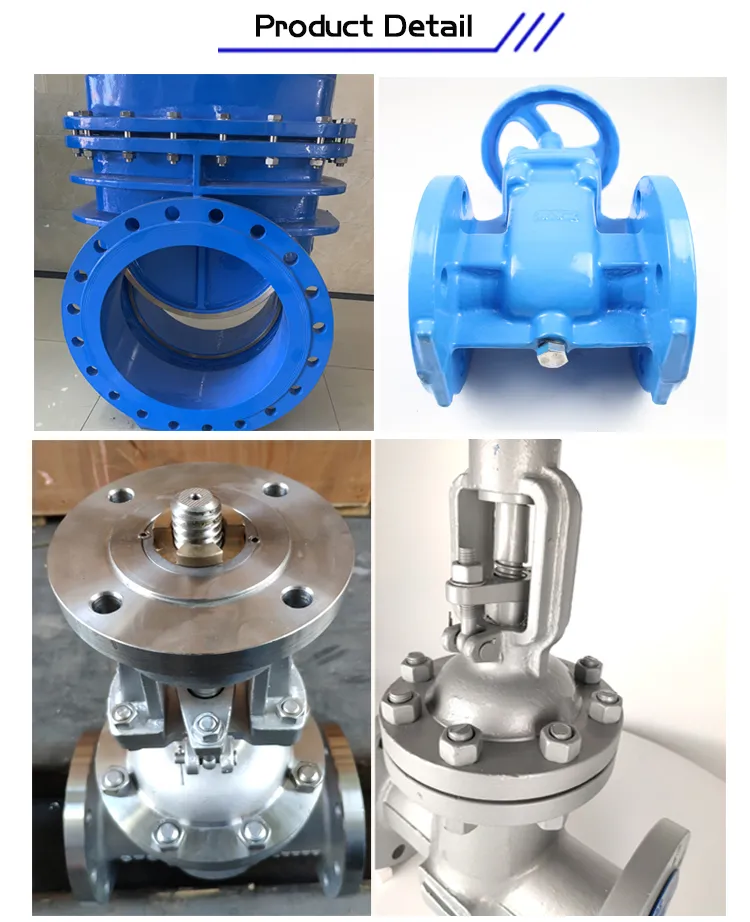

Di /Cast Iorn Pn10/16/25 Metal Seat Gate Valve
Metal Seat Gate Valve Size: DN40-DN1200Pressure: PN10/PN16Standard: EN593, DIN 2501 PN6/10/16, DIN3202 F4Materials:Body :Ductile IronSeal : Ductile Iron+SS304Stem : Stainless Steel 304Metal Seat Gate Valve Characteristic:Medium: Water, Waste Water, Air, OilTemperature: -20 to 425ºCThe open......
Send Inquiry
Product Description
Pressure: PN10/PN16
Standard: EN593, DIN 2501 PN6/10/16, DIN3202 F4
Materials:
Body :Ductile Iron
Seal : Ductile Iron+SS304
Stem : Stainless Steel 304
Metal Seat Gate Valve Characteristic:
Medium: Water, Waste Water, Air, Oil
Temperature: -20 to 425ºC
The opening and closing part of the metal seat gate valve is a gate, and the movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.
According to the sealing surface configuration, it can be divided into wedge gate valve and parallel gate valve. Wedge gate valve can be divided into: single gate, double gate and elastic gate; parallel gate valve can be divided into single gate Plate type and double gate type. Divided according to the thread position of the valve stem, it can be divided into two types: open stem gate valve and dark stem gate valve.
Application:
1. The resilient seat gate valve is suitable for non-corrosive gas and liquid medium at room temperature (≤80ºC). Such as clean water, air, oil, water treatment sewage and other pipelines. And has a very good sealing effect, almost zero leakage can be achieved.
2. The Metal seat gate valve is suitable for high temperature (≤425ºC) with slightly corrosive gas and liquid. Such as steam, heat transfer oil, sewage, petroleum, chemical industry, metallurgy, pipelines. Can have a certain degree of wear resistance.
3. The difference between resilient seat gate valve and metal seat gate valve is that the sealing performance of resilient seat is better than metal seat, but the temperature resistance and wear resistance of metal seat gate valve are better than resilient seat gate valve.
Tianjin KXC group founded in 2004, is an ISO 9001 certified company, committed to manufacturing valves, valve parts & Related products for water works and water treatment projects.

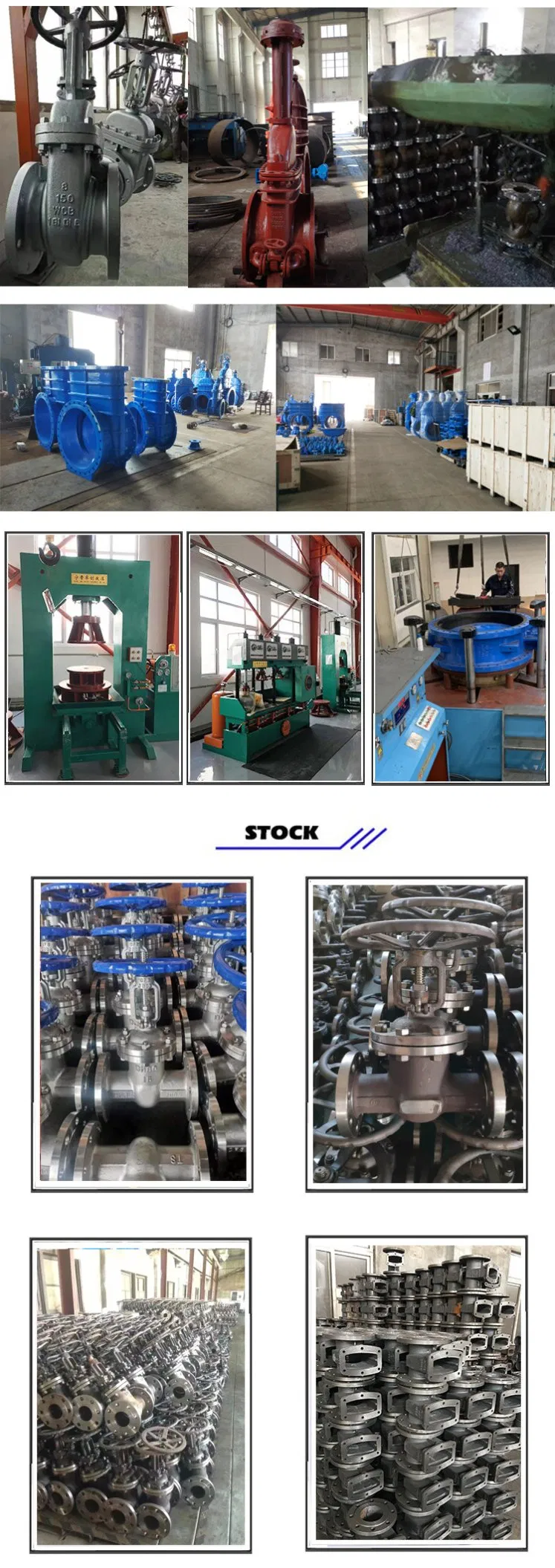

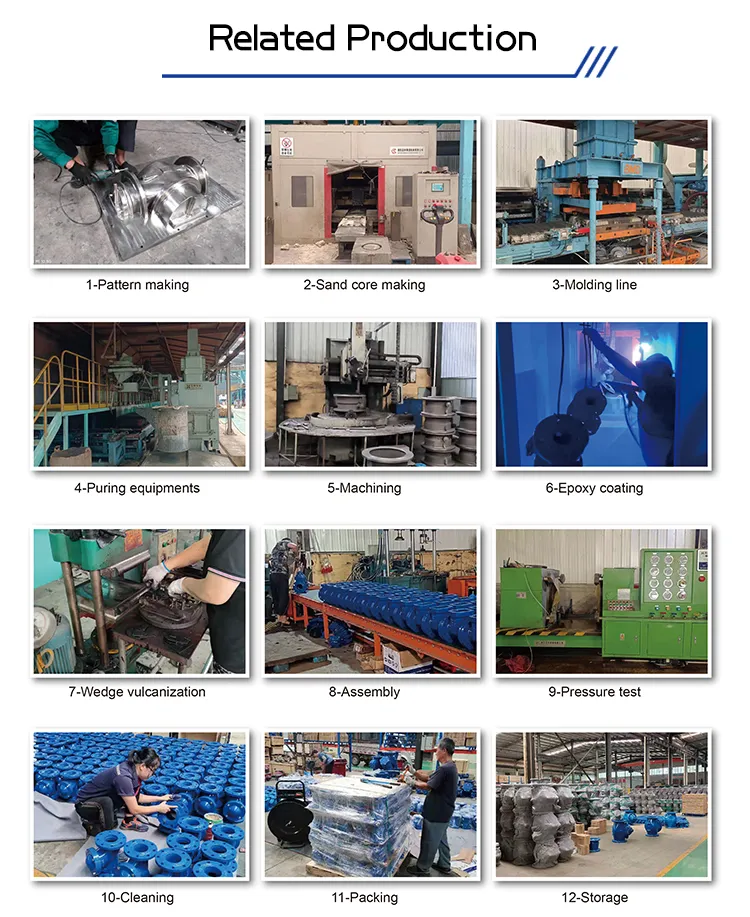

KXC consists of HY Valves Co. Ltd and KXC Metal Co. Ltd within our own factory and foundry. We have machining center, CNC machines, pressure test machining, electric furnace, mould machine, sand blasting machine, given all of this, our products quality always under good control.

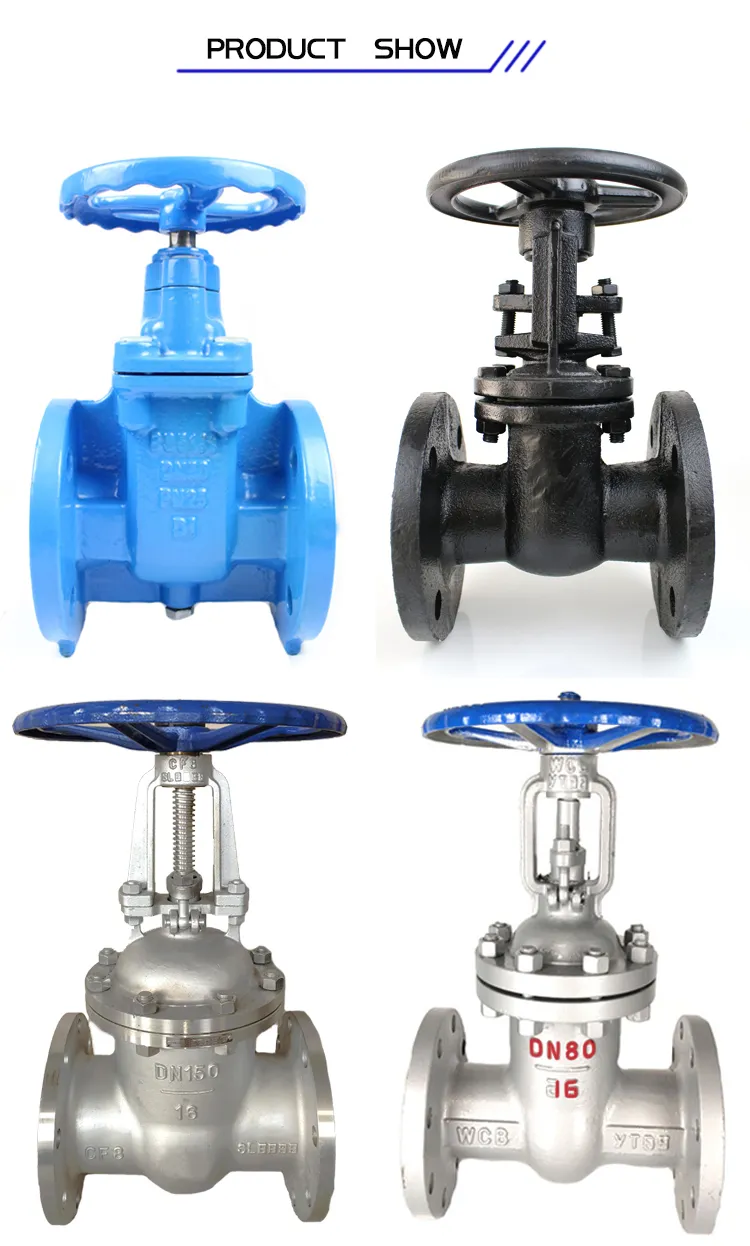

KXC mainly produce gate valve(Resilient seat, Metal seat), butterfly valve(Concentric and Eccentric), check valve, ball valve, globe valve and etc. Supported by our many years' experience and expertise in this field,
KXC can also offer OEM & ODM valves and parts. KXC philosophy is to offer high cost performance products with optimal service. Welcome to visit our factories and KXC will satisfy you in all respects.
Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
