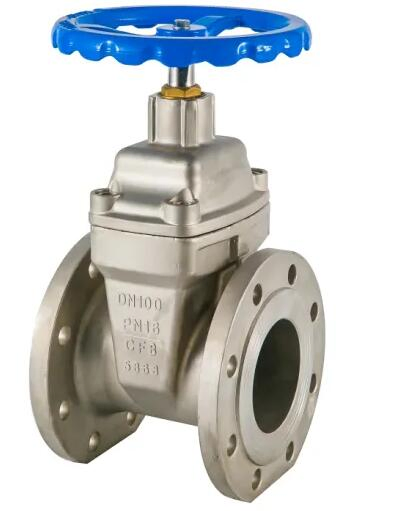

CF3m Body Pn20 Raising Stem Industrial Usage Gate Valve

Product Description

Connection: Flanged to EN 1092-2, BS4504, ASME B16.10, AS4088

Working pressure: PN10/PN16/PN25

Temperature range: 0,C ~ 80C

Fusion bonded epoxy coating

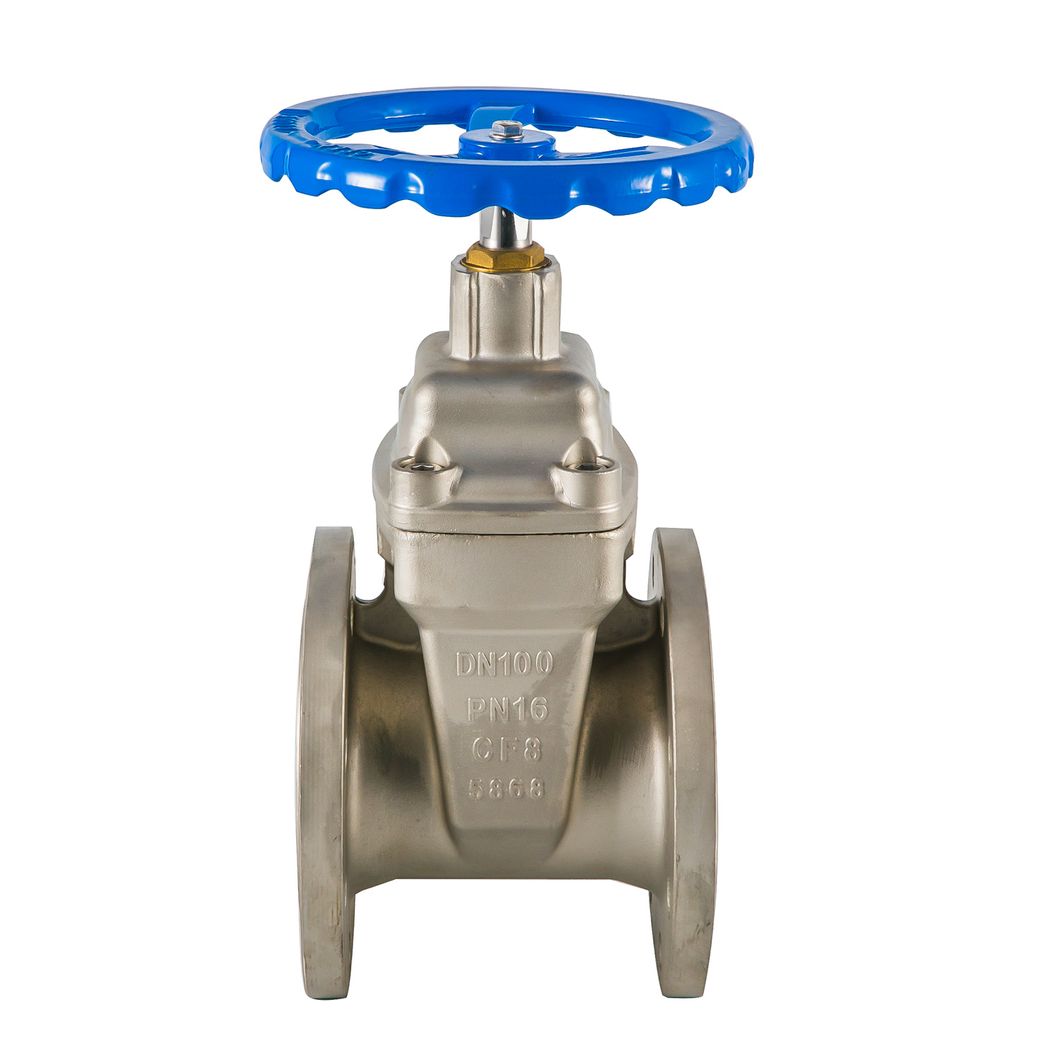

CF8 Gate Valve for Industrial Usage

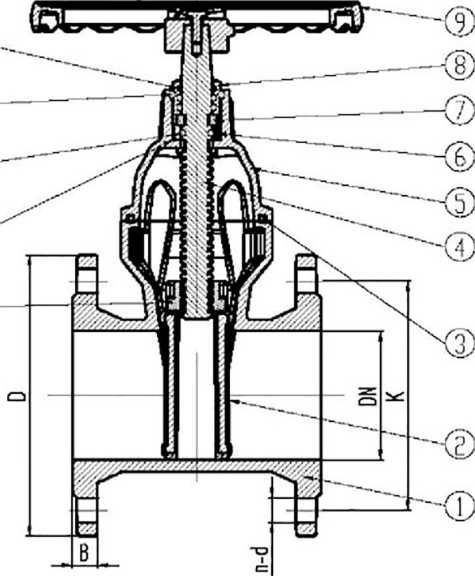

Size	Face to face dimension(mm)					No,of turns closing	Flange dimension(EN 1092-2) PN10/PN16/PN25			ASMEB16.1/16.42 CL125/150			AS 4087 PN10/PN16
DN	DIN F4	DIN	BS 5163	ASME B16.10	AS		D	K	n-d	D	K	n-d	D	K	n-d
		F5			2638
DN40/L5	140	240	178	.	.	9	150	110	4-019
DN50/2	150	250	178	178	.	9	165	125	4-019	152	120.5	4-019	-	-	-
DN65/2.5	170	270	190	190	-	10	185	145	4-0)19/4-0)19/8-019	178	139.5	4-019	.	-	-
DN80/3	180	280	203	203	203	12	200	160	8-019	191	152.5	4-019	185	146	4-018
DN 100/4	190	300	229	229	229	12	220/220/235	180/180/190	8-019/8-0)19/8-0)23	229	190.5	8-019	215	178	4-018
DN125/5	200	325	254	254	.	14.5	250/250/270	210/210/220	8-019/8-019/8-028	254	216	8-022	.	-	-
DN150/6	210	350	267	267	267	17	285/285/300	240/240/250	8-023/8-0)23/8-028	279	241.5	8-022	280	235	8-018
DN200/8	230	400	292	292	292	18.5	340/340/360	295/295/310	8-023/12-023/12-028	343	298.5	8-022	335	292	8-018
DN250/10	250	450	330	330	330	23	395/405/425	350/355/370	12-(P23/12-a)28/12-<i)31	406	362	12-025	405	356	8-022
DN300/12	270	500	356	356	356	27	445/460/485	400/410/430	12-<P23/12-0)28/16-<P31	483	432	12-025	455	406	12-022
