Product Description

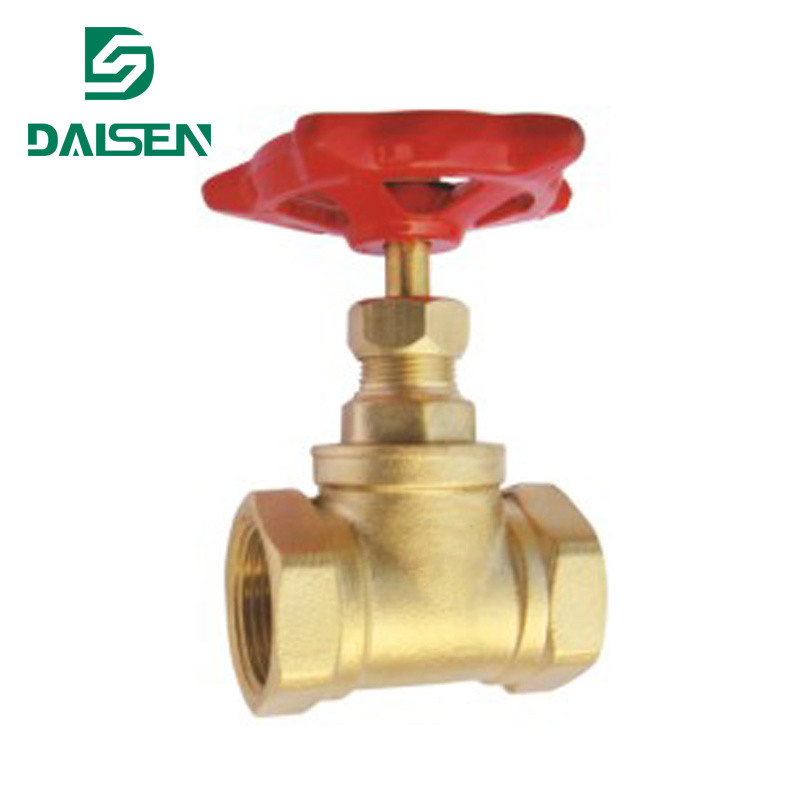

Brass/Stainless Steel/Cast Iron Stop Check Shut off Globe Valve

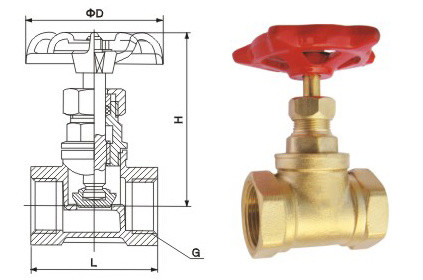

Size	15	20	25	32	40	50
Size	(1/2")	(3/4")	(1")	(11/4")	(11/2")	(2")
L(mm)	48	60	70	80	90	110
H(mm)	66	76	81	106.5	118.5	136
φD(mm)	52	60	67	76	88	100

Parts Name	Body	Bonnet	Disc	Stem	Packing	Hand Wheel
Materials	Brass				Tefion	Cast Iron

Product Standards:Q/3200ZJ211

Brass/Stainless Steel/Cast Iron Stop Check Shut off Globe Valve

Product main features

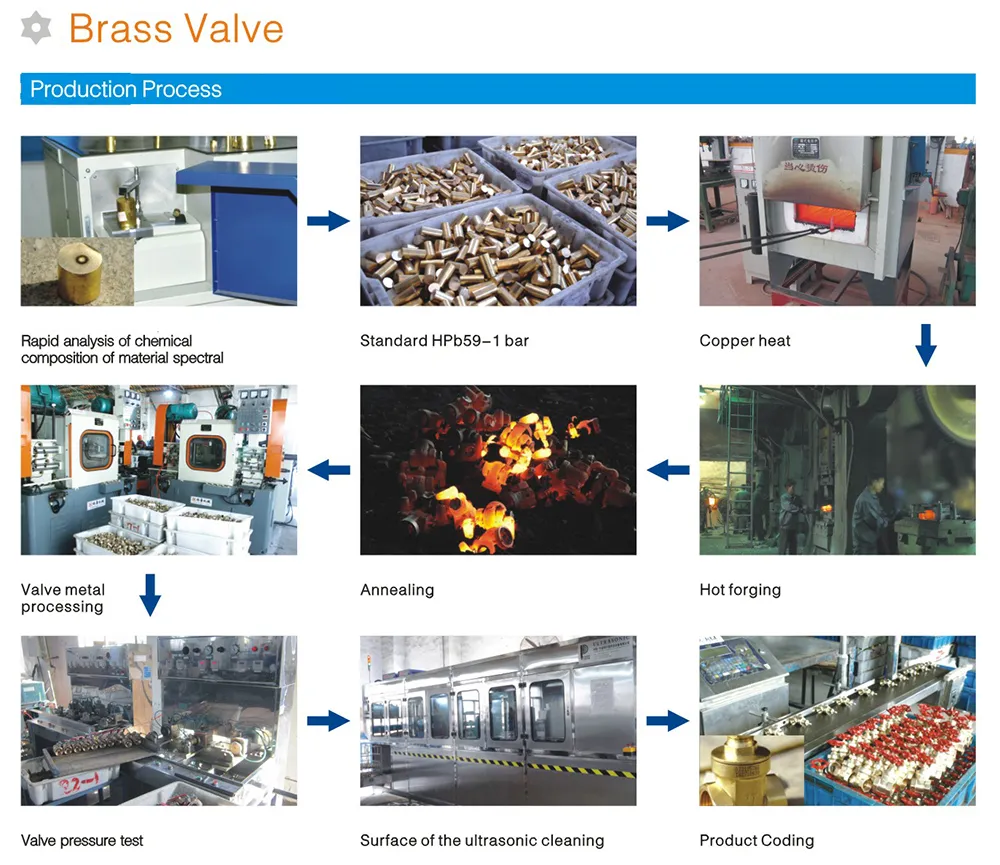

1, Raw materials, reliable, all standard Hpb59- 1 extruded bar, imported from Italy into the plant spectrometer analysis of the quantitativecomponent, to ensure that the material composition and performance indicators.
2, Advanced processing technology: the use of medium frequency induction heating, die forging process and the full line of CNCautomated processing.
3, The products are reliable, full numerical control equipment to each other with sealing, sealing performance and reliable; reliableraw materials and advanced forming process. The products of small stress, without annealing, fully applicable to central air conditioningsystem of alternating hot and cold and cold regions.
4, The surface of stainless steel shot blasting machine, copper texture perfect reproduction, no chemical treatment, no chemical residues,environmental pollution, emergence of corporate social responsibility;
