API 6A Hydraulic Gate Valves
API 6A Hydraulic Gate ValvesHydraulic Gate Valves provided by WD are available in size from 1 13/16" to 7 1/16" and pressuring rating from 2,000psi to 15,000psi. the gate valves are strictly designed and manufactured according to API 6A and API Spec Q1 by forging or casting AISI 4130/4140 ......
Send Inquiry
Product Description

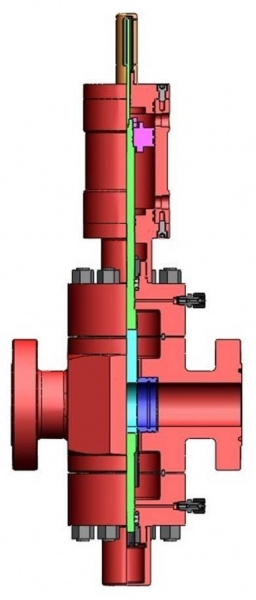

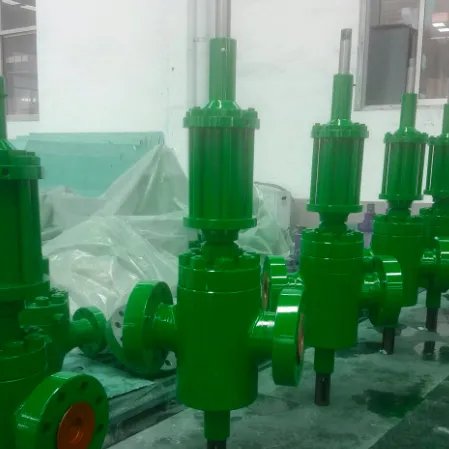

API 6A Hydraulic Gate Valves
Hydraulic Gate Valves provided by WD are available in size from 1 13/16" to 7 1/16" and pressuring rating from 2,000psi to 15,000psi. the gate valves are strictly designed and manufactured according to API 6A and API Spec Q1 by forging or casting AISI 4130/4140 low alloy or AISI 410 SS steel, the actuators are designed with safety and suitable for all kind of gate valves.

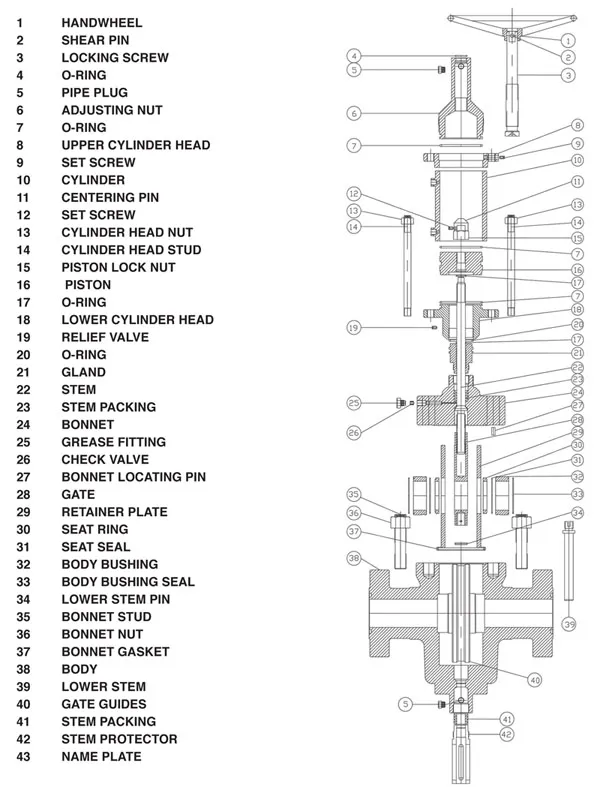

Hydraulic Gate Valves' feature:
1. Forged or Cast Body & Bonnet,
2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
3. Bi-directional Sealing,
4. All internal parts can be inline changed.
5. Easy maintaining and disassembling.
6. Optional overpressure protection, compound-springs design for improving its stability.

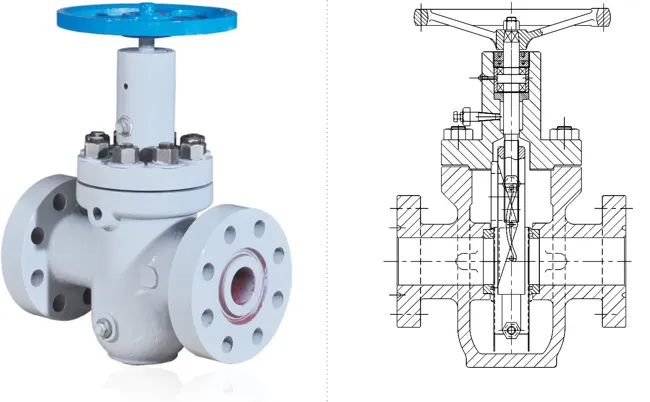

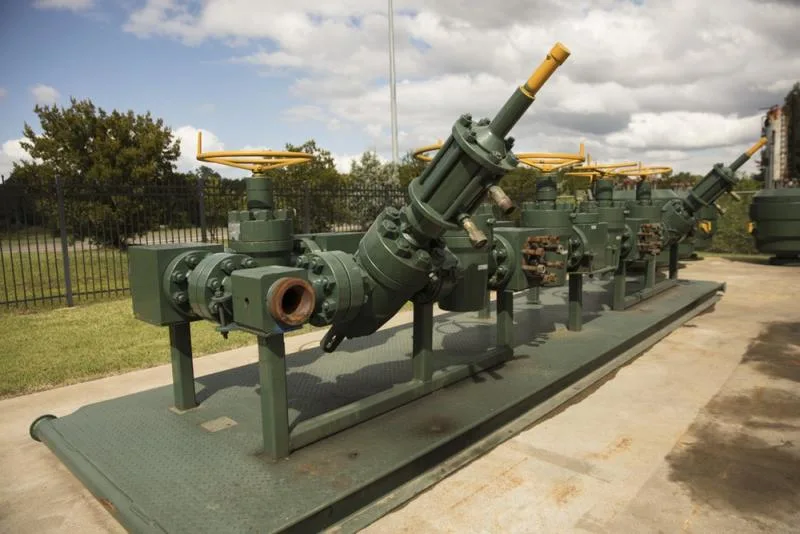

API 6A Expand Slab Gate Valves
EXPANDING & SLAB GATE VALVES
SIZE RANGE: 1-13/16″~7-1/16″
WORKING PRESSURE: 2000~15000 PSI
DESIGN STANDARDS: API 6A
MATERIAL CLASS: AA~HH
END CONNECTION: RTJ FLANGE OR THREARED
APPLICATION: OIL FIELD
SLAB GATE VALVES
Material List
API 6A Materials Classification. | Body & Bonnet Material | Stem Material / Coating | Gate Material /Coating | Seat Material /Coating |
AA-General Service | Low Alloy Steel | AISI 41 XX Nitrided | AISI 41 XX Nitrided | SI 41 XX Nitrided |
BB- General Service | Low Alloy Steel | AISI 41 XX Nitrided | AISI 41 XX Nitrided | Stellite TM 3 |
CC- General Service | 4A | AISI 410 SS | AISI 410 Nitrided | Stellite TM 3 |
DD-Sour Service | Low Alloy Steel | AISI 41 XX Nickel-Plated | AISI 41 XX Hard-Face | Stellite TM 3 |
EE- Sour Service | Low Alloy Steel | AISI 410 Nitrided | AISI 41 XX Hard-Face | Stellite TM 3 |
FF- Sour Service | 4A | AISI 410 Nitrided | AISI 41 XX Hard-Face | Stellite TM 3 |
HH- Sour Service | Low Alloy Steel clad with alloy 625 or solid alloy 718 | Alloy 718 | Alloy 718 Hard-Face | Stellite TM 3 |
The Slab Gate Valves features a non-rising stem with a slab gate,
Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats,
floating seat ring body bushing design to provide safe
dependable service. No special tools are needed to change gate
and seat assembly. The stem pin protects the stem and internal
parts from failure by shearing if the handwheel is over torque.
One-piece gate helps to prevent line sediment from entering the
body cavity and prevents pressure locks when the up stream
pressure drops. A wide range of body and trim materials to meet
various operating conditions.
Flanged End
3,000 psi Working Pressure
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 371 | 530 | 80 |
| 3-1/8″ | 79.4 | 435 | 570 | 125 |
| 4-1/16″ | 103.2 | 511 | 635 | 230 |
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 1-13/16″ | 46.0 | 464 | 530 | 90 |
| 2-1/16″ | 52.4 | 521 | 535 | 120 |
| 2-9/16″ | 65.1 | 565 | 570 | 140 |
| 3-1/16″ | 79.4 | 619 | 595 | 210 |
| 4-1/16″ | 103.2 | 670 | 685 | 360 |
| 7-1/16″ | 179.4 | 889 | 955 | 1720 |
3,000 psi Working Pressure
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 244 | 530 | 60 |
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 371 | 525 | 80 |
| 2-9/16″ | 65.1 | 422 | 550 | 105 |
| 3-1/8″ | 79.4 | 473 | 590 | 155 |
| 4-1/16″ | 103.2 | 549 | 660 | 255 |
| 7-1/16″ | 179.4 | 813 | 840 | 490 |
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 1-13/16″ | 46.0 | 457 | 530 | 105 |
| 2-1/16″ | 52.4 | 483 | 705 | 120 |
| 3-1/16″ | 77.8 | 698 | 705 | 320 |
| 4-1/16″ | 103.2 | 737 | 750 | 480 |
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 244 | 530 | 60 |
The Expanding gate valves provides great
performance to economical applications. The
valve gate geatures simple onepiece design.
Seats will be energized by the preloaded-
springs or the high pressure vented from
upstream, to form a tight seal between seat
and gate. The metal-to-metal sealing design
is universally reliable in most demanding
applications. Flanged End
2,000 psi Working Pressure
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 295 | 470 | 45 |
| 2-9/16″ | 65.1 | 233 | 475 | 60 |
| 3-1/8″ | 79.4 | 359 | 550 | 100 |
| 4-1/16″ | 103.2 | 435 | 425 | 160 |
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 371 | 475 | 50 |
| 2-9/16″ | 65.1 | 422 | 490 | 95 |
| 3-1/8″ | 79.4 | 435 | 550 | 150 |
| 4-1/16″ | 103.2 | 511 | 635 | 260 |
| 7-1/16″ | 179.4 | 714 | 715 | 260 |
| Size | Bore(mm) | Face to Face(mm) | Total Height(mm) | Weight(Kg) |
| 2-1/16″ | 52.4 | 371 | 475 | 50 |
| 2-9/16″ | 65.1 | 422 | 550 | 105 |
| 3-1/8″ | 79.4 | 473 | 555 | 150 |
| 4-1/16″ | 103.2 | 549 | 635 | 280 |
| 7-1/16″ | 179.4 | 813 | 715 | 600 |
| Size | Bore(mm) | Face to Face(mm) | Total Height(mm) | Weight(Kg) |
| 1-13/16″ | 46.0 | 464 | 375 | 100 |
| 2-1/16″ | 52.4 | 521 | 400 | 135 |
| 2-9/16″ | 65.1 | 565 | 425 | 190 |
| 3-1/16″ | 79.4 | 619 | 440 | 250 |
| 4-1/16″ | 103.2 | 670 | 530 | 380 |
| Size | Bore (mm) | Face to Face (mm) | Total Height (mm) | Weight (Kg) |
| 2-1/16″ | 52.4 | 483 | 415 | 165 |
| 2-9/16″ | 65.1 | 533 | 415 | 195 |
| 3-1/8″ | 79.4 | 698 | 480 | 260 |
| 4-1/16″ | 103.2 | 737 | 555 | 485 |
2,000 psi Working Pressure
| Size | Bore(mm) | Face to Face(mm) | Total Height(mm) | Weight(Kg) |
| 2-1/16″ | 52.4 | 245 | 470 | 45 |
| 2-9/16″ | 65.1 | 260 | 475 | 60 |
| 3-1/8″ | 79.4 | 290 | 550 | 90 |
| 4-1/16″ | 103.2 | 330 | 625 | 130 |
| Size | Bore(mm) | Face to Face(mm) | Total Height(mm) | Weight(Kg) |
| 2-1/16″ | 52.4 | 245 | 475 | 50 |
| 2-9/16″ | 65.1 | 260 | 490 | 60 |
| 3-1/8″ | 79.4 | 290 | 550 | 90 |
| 4-1/16″ | 103.2 | 330 | 625 | 125 |
| Size | Bore(mm) | Face to Face(mm) | Total Height(mm) | Weight(Kg) |
| 2-1/16″ | 52.4 | 245 | 475 | 50 |
| 2-9/16″ | 65.1 | 260 | 495 | 65 |
| 3-1/8″ | 79.4 | 290 | 550 | 90 |
| 4-1/16″ | 103.2 | 330 | 625 | 125 |
