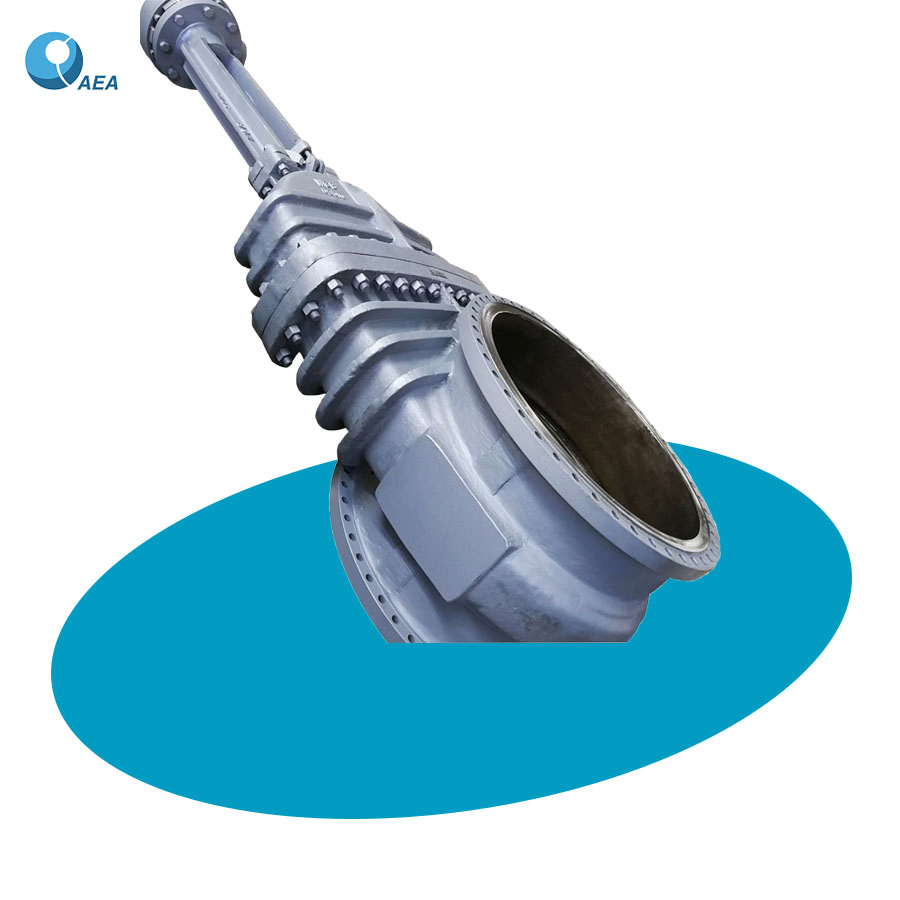

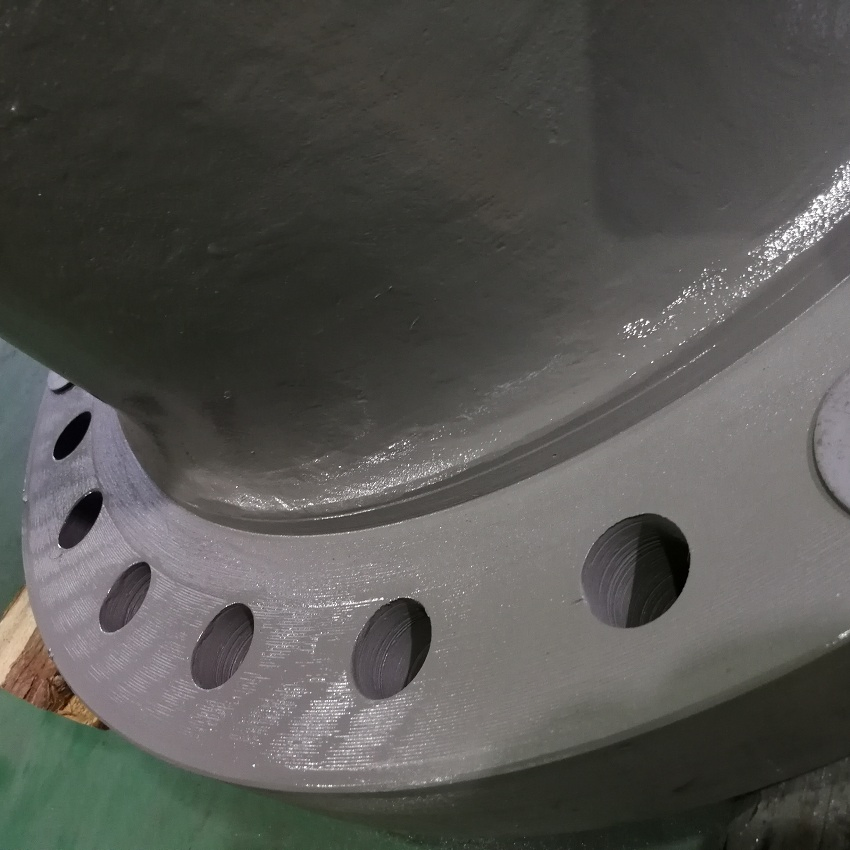

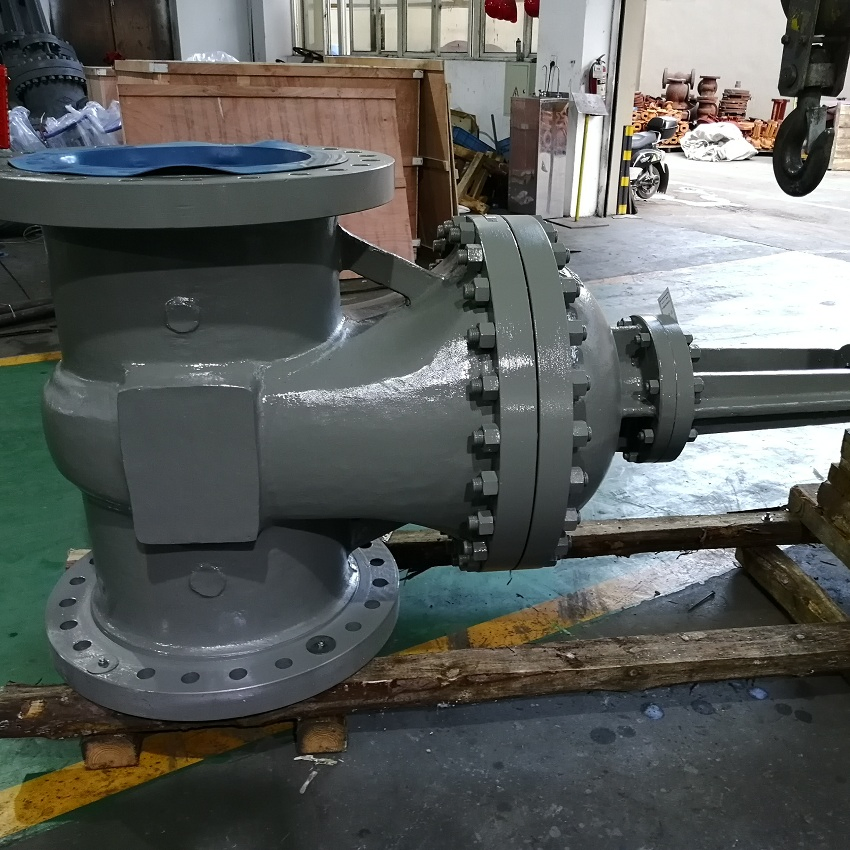

API 600 ISO 1414 Cast Steel Body Stellite Trim Rising Stem Bolted Bonnet Backseat Threaded or Welded Renewable Seat Rings Flexible Wedge Flanged Gate Valve
AEA Cast Steel Gate Valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves shoul......
Send Inquiry
Product Description

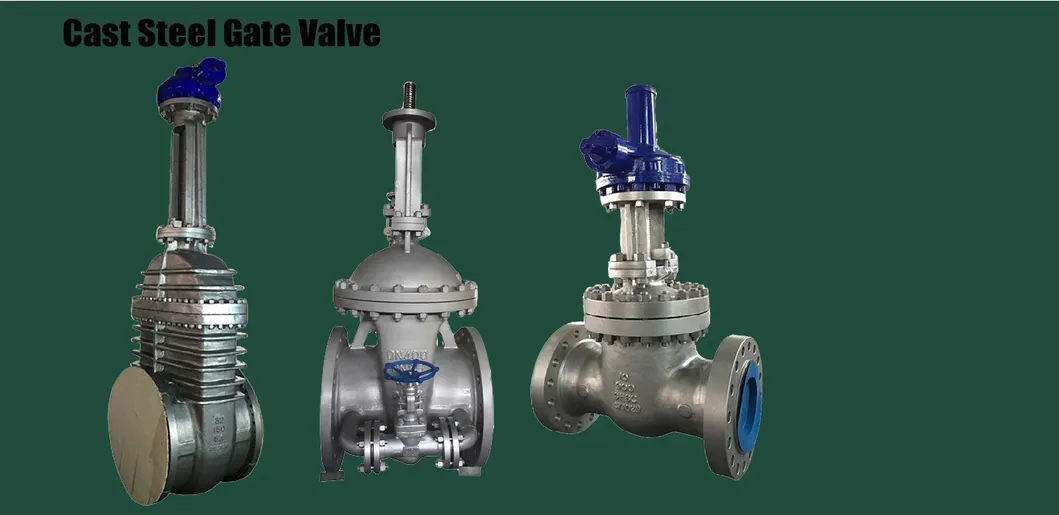

AEA Cast Steel Gate Valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar. The gate faces can form a wedge shape or they can be parallel. Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose. On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening.
Product Range
-Valve size:
2" ~ 48" (DN50-DN1200)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Trim (Disc/Stem):
Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
Technical Specifications
-Design: ASME 16.34/ API 6D/ API 600/ BS 1414
-Face to Face: ASME B16.10
-End Flange: ASME B16.5, ASME B16.47
-BW End: ASME B16.25
-Test: API 598/ API 6D/ BS 6755
-Special: NACE MR-01-75

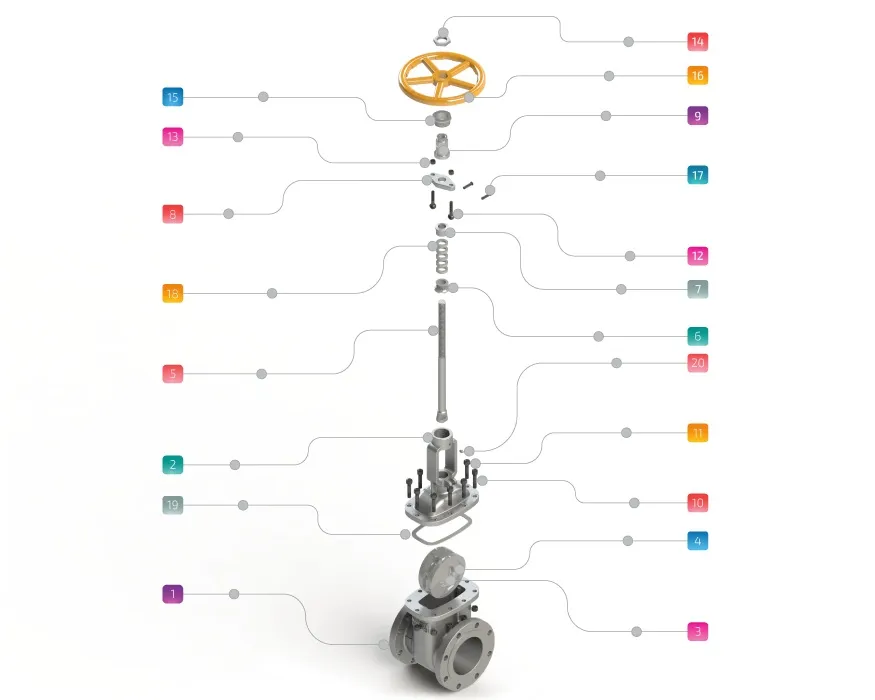

Design Features
-OS & Y, Rising stem
- Bolted Bonnet with spiral-would gasket
-Flexible Wedge
-Backseat Weld-Deposited
-Threaded or welded seat ring
-Renewable seat rings
-Extended Bonnet for Cryogenic Service
-Flanged or butt welded ends.
-By Pass on Request
-Locking Device Optional
Size and Dimensions:
| Class | Dimensions(mm) | ||||||||||||||||||
| NPS(inch) | 2 | 2002/1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 32 | 40 | 48 | |
| DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 1000 | 1200 | |
| 150LB | L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 | 610 | 711 | 813 | 1067 |
| H | 360 | 490 | 503 | 588 | 740 | 767 | 970 | 1158 | 1393 | 1543 | 1738 | 1955 | 2210 | 2698 | 2590 | 2870 | 3302 | 3962 | |
| W | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | 650 | 700 | 800 | 800 | 1000 | 1000 | |
| 300LB | L | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | 1346 | 1524 | 1955 | 2286 |
| H | 384 | 470 | 528 | 615 | 760 | 800 | 1005 | 1212 | 1455 | 1585 | 2035 | 2195 | 1680 | 2200 | 2641 | 2857 | 3713 | 4501 | |
| W | 200 | 250 | 250 | 250 | 350 | 350 | 400 | 450 | 500 | 600 | 650 | 650 | 850 | 850 | 850 | 850 | 750 | 750 | |
| 600LB | L | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1549 | 1778 | 2149 | 2667 |
| H | 495 | 550 | 615 | 735 | 826 | 970 | 1122 | 1330 | 1519 | 1716 | 2110 | 1727 | 2019 | 2383 | 2663 | 3100 | 3600 | 4600 | |
| W | 250 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 750 | 850 | 850 | 850 | 850 | 600 | 600 | 750 | 750 | 750 | |
| 900LB | L | 368 | 419 | 381 | 457 | 562 | 610 | 727 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | - | - | - | - |
| H | 590 | 700 | 740 | 870 | 950 | 1078 | 1318 | 1580 | 1860 | 2004 | 2178 | 2362 | 2463 | 3048 | - | - | - | - | |
| W | 250 | 300 | 300 | 350 | 450 | 560 | 640 | 800 | 800 | 900 | 1000 | 750 | 750 | 900 | - | - | - | - | |
| 1500LB | L | 368 | 419 | 470 | 546 | 673 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 | - | - | - | - |
| H | 590 | 700 | 780 | 880 | 1120 | 1222 | 1572 | 1830 | 2076 | 2057 | 2311 | 2438 | 2590 | 2946 | - | - | - | - | |
| W | 250 | 350 | 400 | 500 | 600 | 720 | 900 | 900 | 1000 | 750 | 750 | 850 | 850 | 850 | - | - | - | - | |
| 2500LB | L | 451 | 508 | 578 | 673 | 794 | 914 | 1022 | 1270 | 1422 | - | - | - | - | - | - | - | - | - |
| H | 580 | 630 | 765 | 850 | 960 | 1100 | 1150 | 1460 | 1660 | - | - | - | - | - | - | - | - | - | |
| W | 300 | 300 | 300 | 300 | 500 | 500 | 500 | 600 | 600 | - | - | - | - | - | - | - | - | - | |
| Why Choose us? |

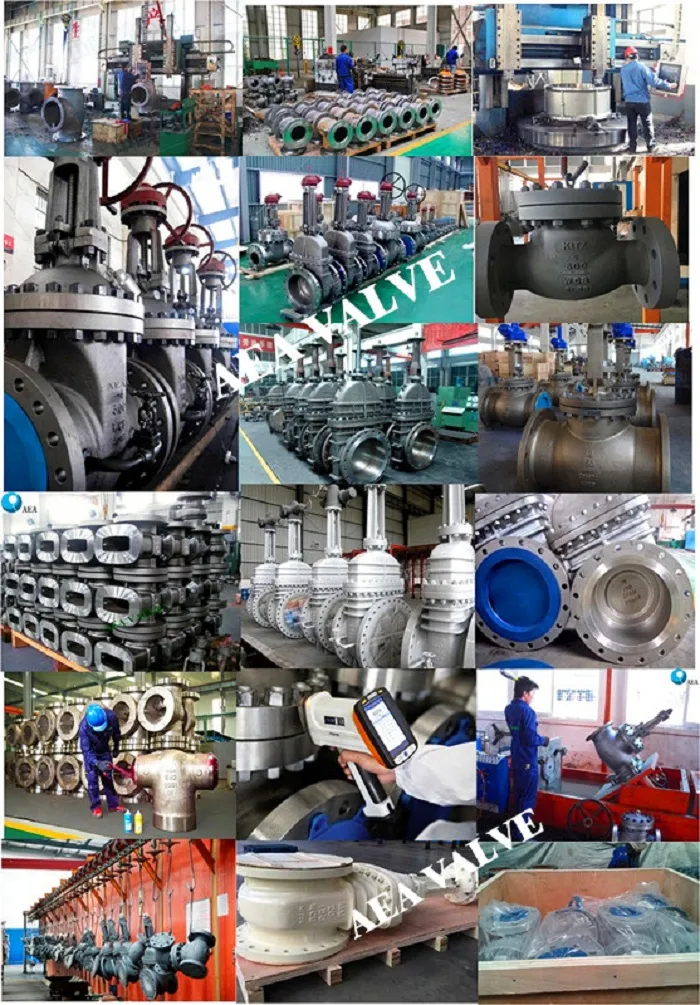

| 1. Factory: |
| AEA VALVE, a specialist manufacturer, established since 2008 and professional production of industrial valves over 10 years. |
| 2. Regional Sale: |
| We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc. |
| 3. Low MOQ: |
| Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well. |
| 4. OEM or Customize: |
| OEM Service or Customized size is Available. |
| 5. We can make the products with the client's demand standard or the custom requirement. |
| 6. Complete Solution: |
| We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you. |
| 7. High Quality: |
| We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by. |
| 8. Quick Delivery: |
| We have the large stock for some hot products. |
| 9. Competitive Price: |
| 10. We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer. |
| 11. Quality control: |
| All the products are calibrated with real working condition, and tested before shipping as qualified product. |
| 12. Problem solve: |
| If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you. |
| 13. Integrity: All the warranty and guarantee from us will be put into come true |
| 14.Online Service: any inquiry, please browse our website www.aeavalve.com. We will reply you within 12 hours. |
