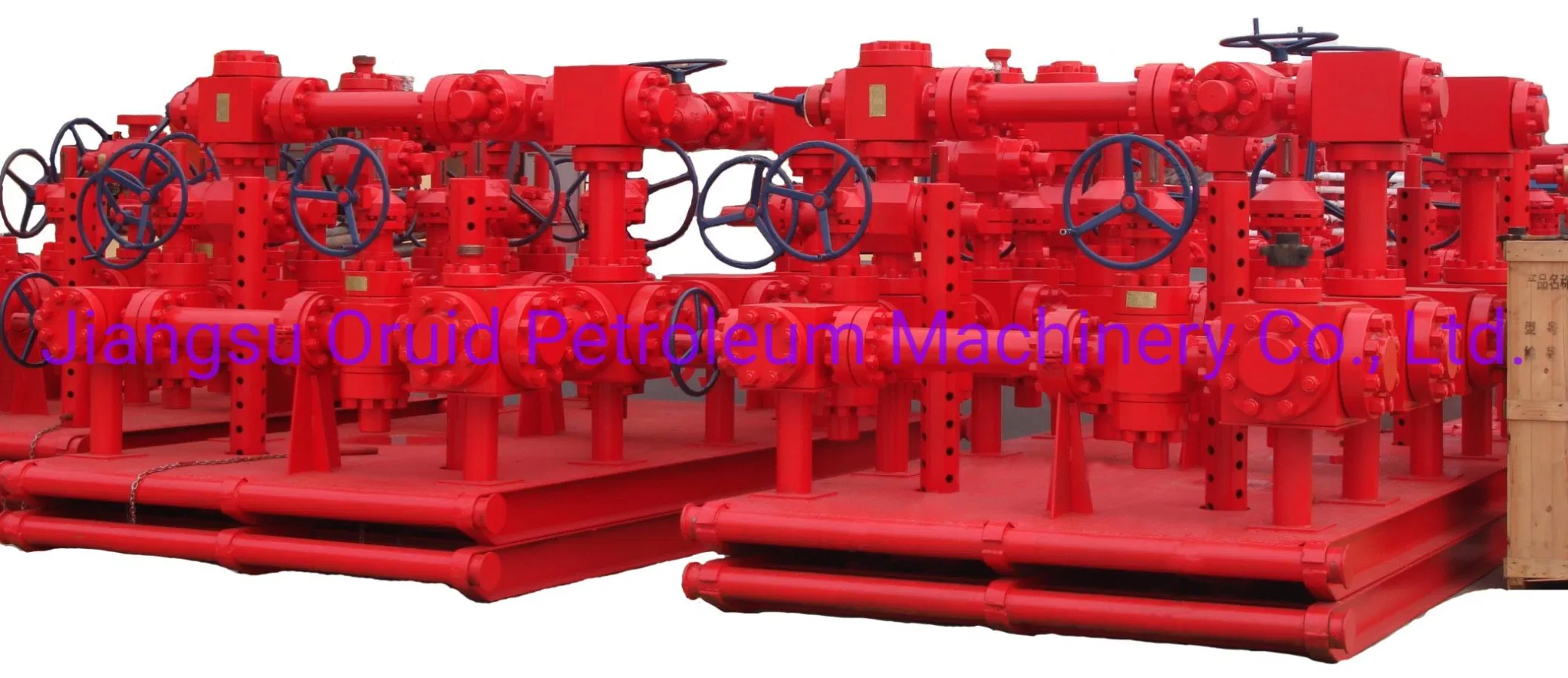

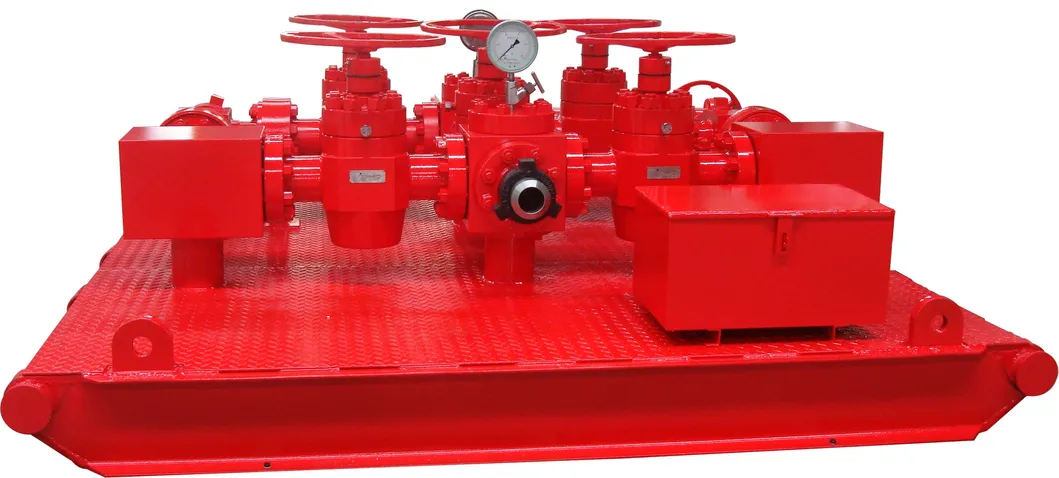

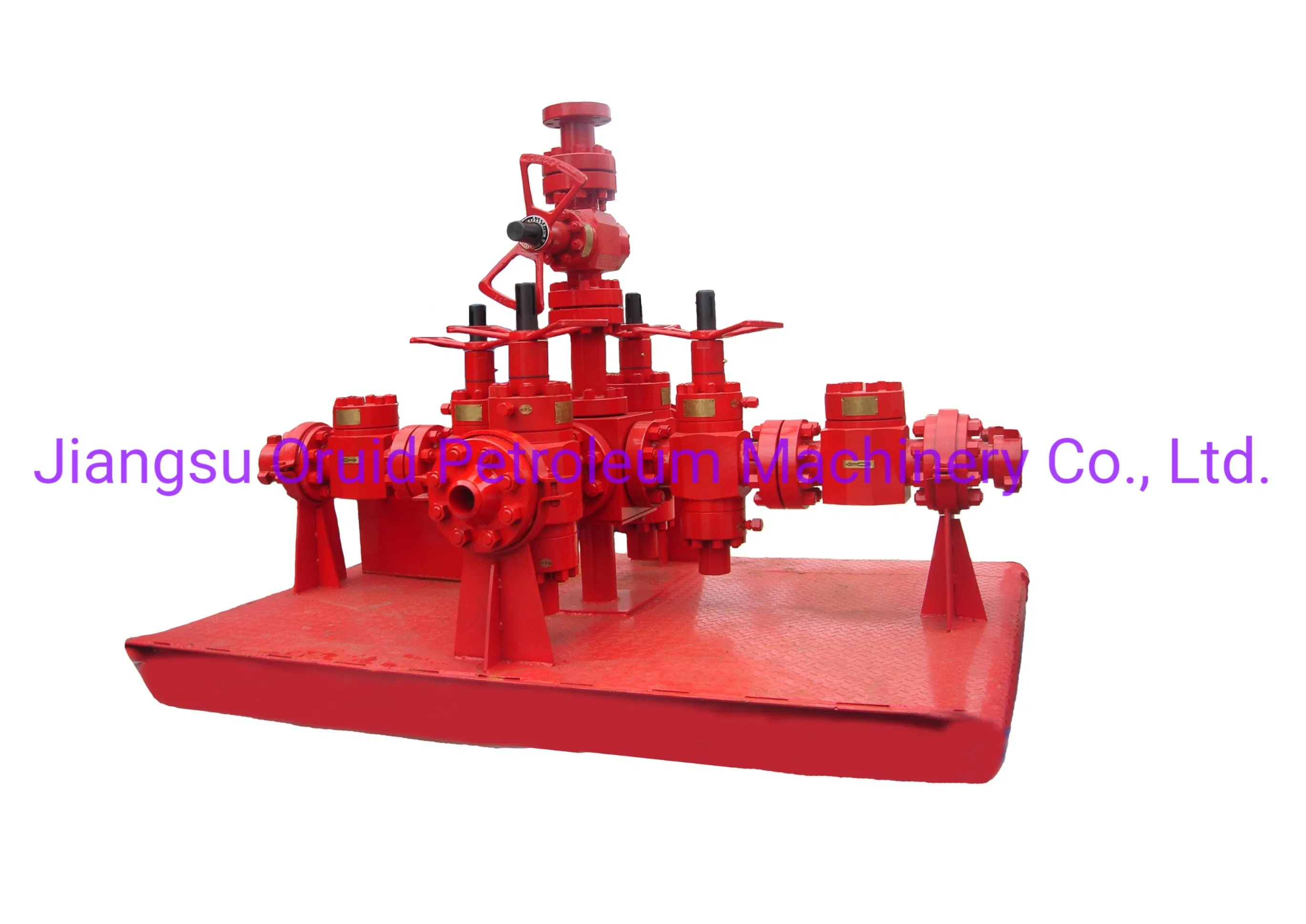

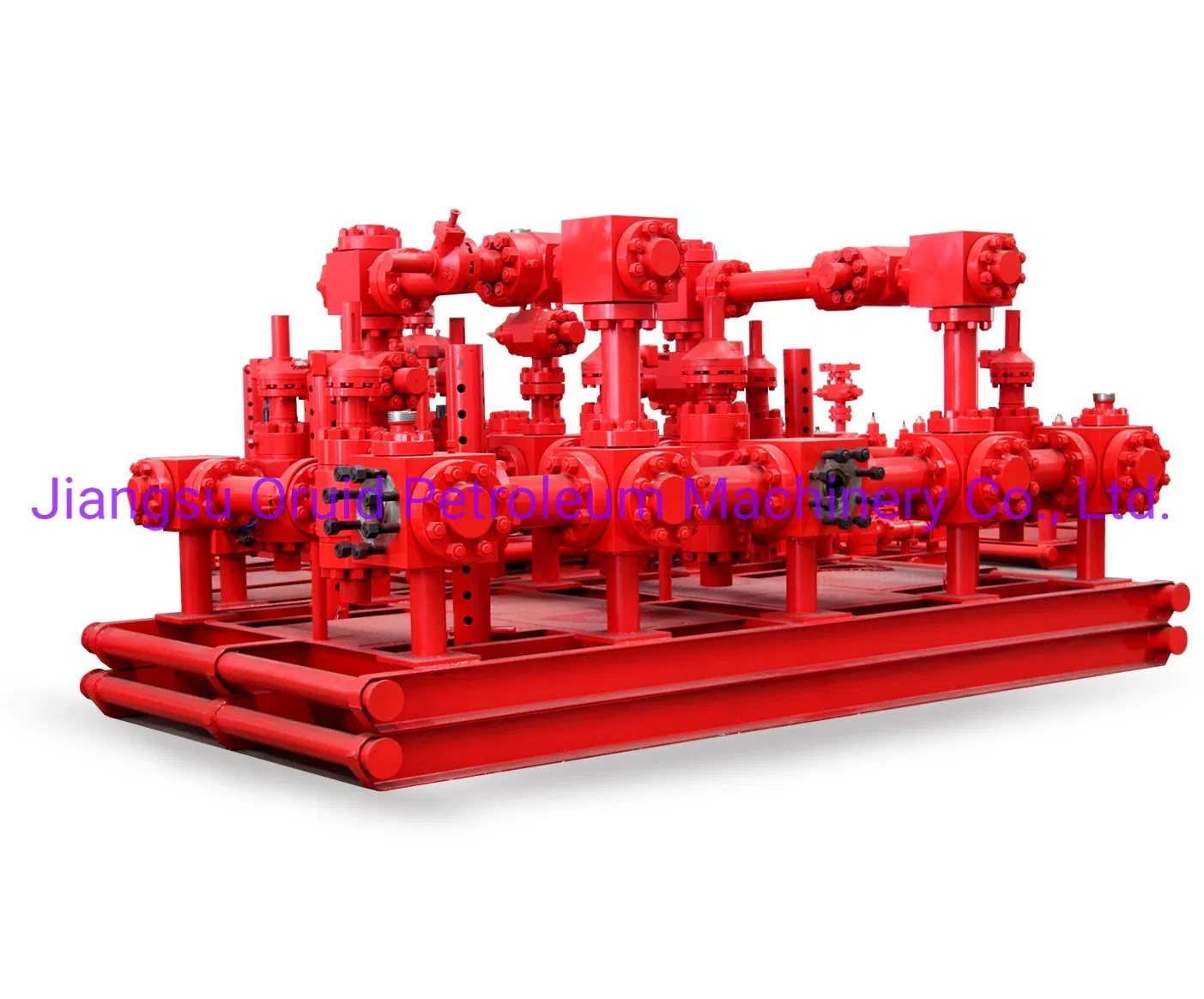

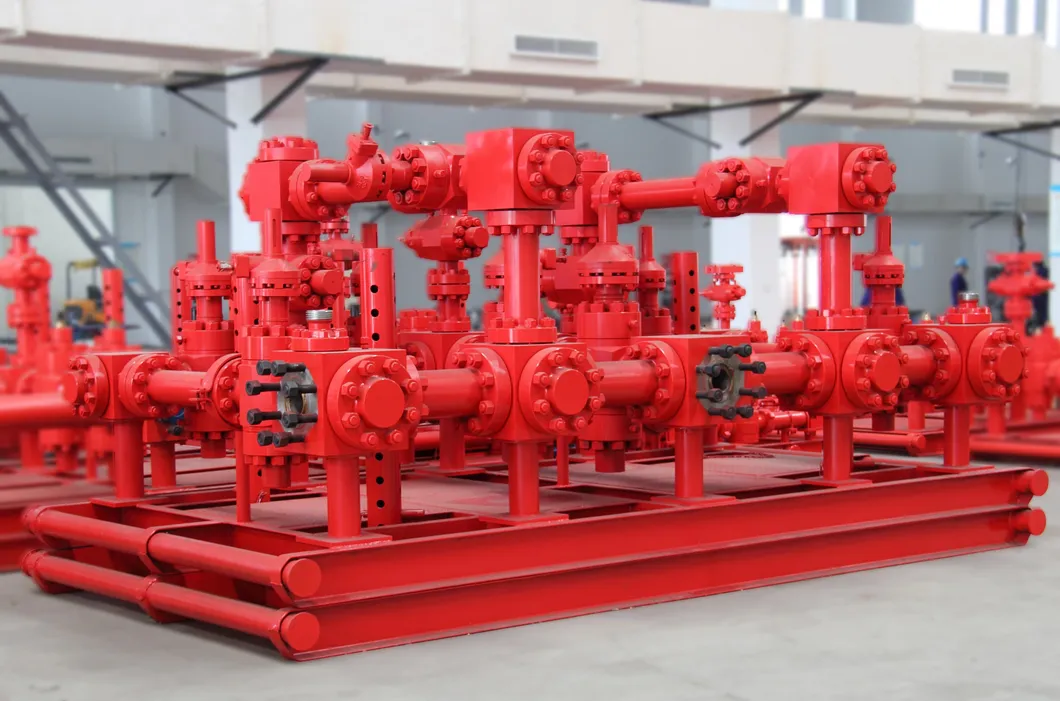

API 16c 3 1/16" Kill Manifold
API 16C manifold, choke manifold, kill manifold, & rigid choke and kill manifold are essential equipment for controlling overflow, well kick and carrying out balance drilling for oil/gas well. The coke manifold is used for controlling casing pressure, keeping wellbore pressure balance by releasi......
Send Inquiry
Product Description
API 16C manifold, choke manifold, kill manifold, & rigid choke and kill manifold are essential equipment for controlling overflow, well kick and carrying out balance drilling for oil/gas well. The coke manifold is used for controlling casing pressure, keeping wellbore pressure balance by releasing pressure, keeping wellbore pressure balance by releasing pressure to protect the wellhead. The kill manifold is used for carrying out well-kick operations by pumping drilling fluid into the wells to prevent the accident and ensure production safety.Design as per API 16C;
Structure type: single wing, dual wings, &multiple wings or integrated;
Control method: manual, & hydraulic. It can be provided with the hydraulic control console for remote control;
Base structure: double deck multistage lifting or skid-mount type.
Product technical specification
| Rated Working Pressure | 3000 PSI ~ 15000 PSI |
| Rated Working Temperature | P, U (-29ºC ~ 121ºC) |
| Material Class | EE, FF |
| Product Specification Level | PSL1~PSL3 |
| Performance Requirement Level | PR1, PR2 |
| Main Bore | 2 9/16", 3 1/16", 4 1/16" |
