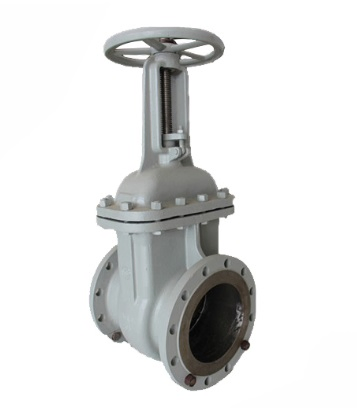

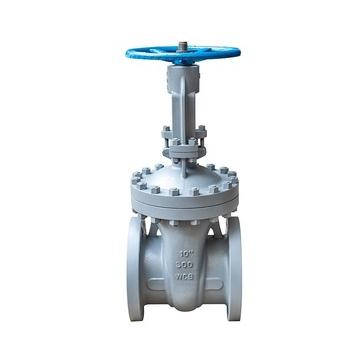

ANSI API Wcb Flange End Gate Valve 150lb 300lb 600lb 900lb

Overview
Quick Details
Type:
Gate Valves
Place of Origin:
Shanxi, China
Model Number:
Gate Valve
Application:
General
Temperature of Media:
Normal Temperature
Power:
Manual, Handle/Wormgear/Electric
Media:
Water
Port Size:
1/2" - 36"
Structure:
Gate
Pressure:
Class 150 - 1, 500
Body material:
Carbon Steel
Medium:
Water Oil Gas
Color:
Requst
Standard:
ANSI, API
Painting:
Standard Export Painting Or As The Customers' Requirements
Certificate:
ISO9001, BV, WRAS, SGS,etc
Packing:
Wooden Case
Connection:
Flange Ends
Product Certification
 CE Certified.
Valid from 2018-06-11 until 2023-06-10
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Gate Valve
Packaging & Delivery
Packaging Details
plywood case or wood case
Port
Tianjin,Qingdao
Lead Time :Product Description

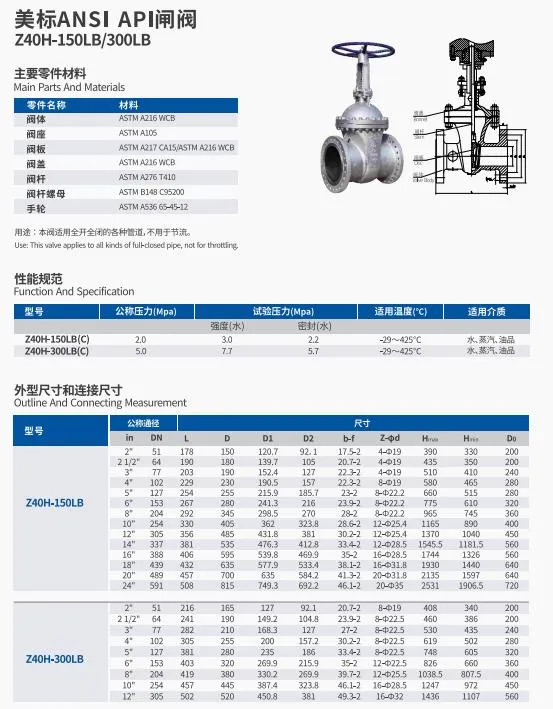

Gate valve features
1) Size: NPS 1/2" - 36"
2) Pressure: Class 150 - 1, 500
3) Material:
A) 1/2" - 2": A105, LF2, F11, F22, F5, F304, F316, F304L, and F316L
B) 2" - 36": WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, and CF8M
4) Design and manufacture standard: API 600, BS 1414, and ASME B16.34
5) Face to face standard: API 6D, ASME B16.10, DIN 3202, and BS2080
6) End connection standard: ASME B16.11, ASME B1.20.1, ASME B16.5,
ASME B16.47 and DIN2543-2551
7) Test standard: ISO5208, API 600, and BS 6755
8) Structure type: Rising stem and wedge single disc
9) Operated way: Hand wheel, bevel gear, pneumatic, and electric

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
