Product Description

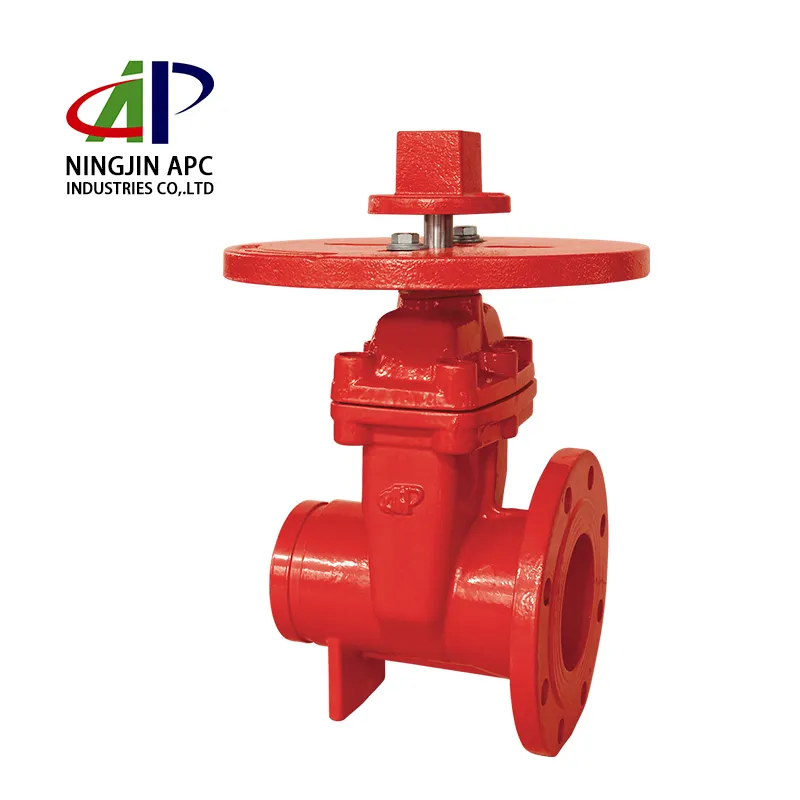

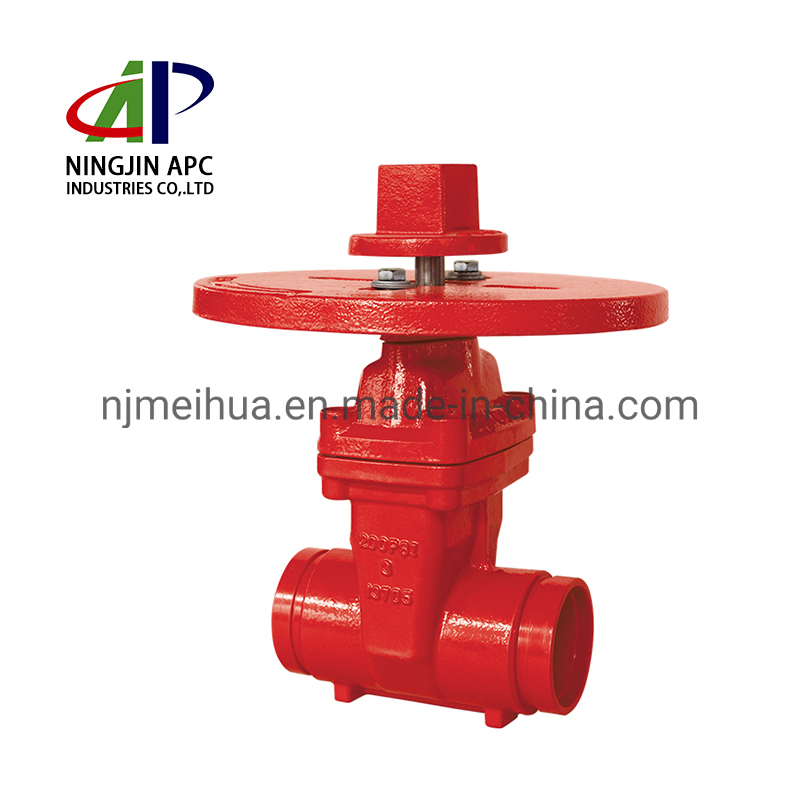

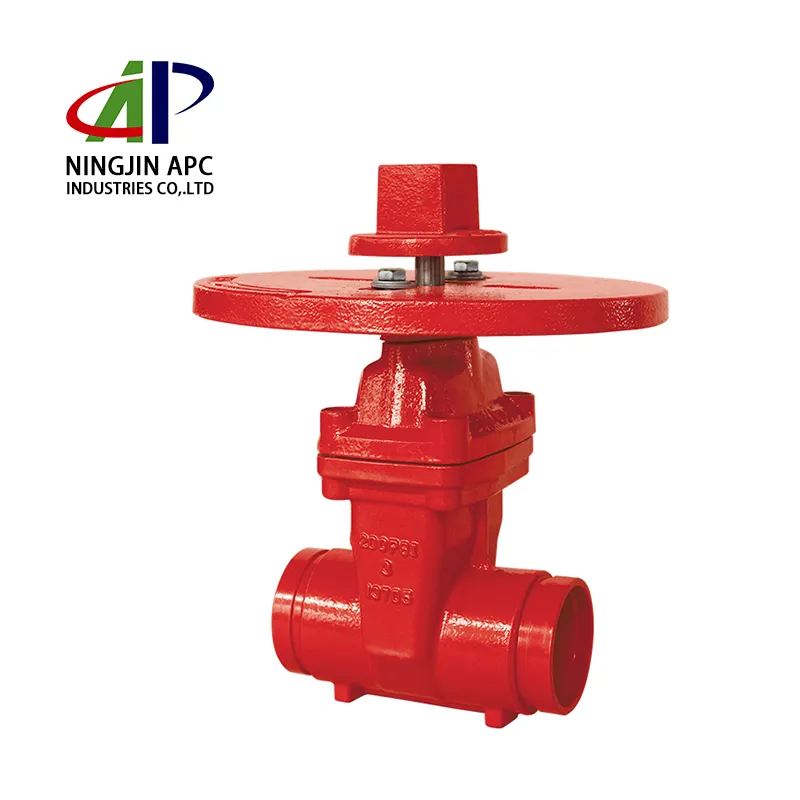

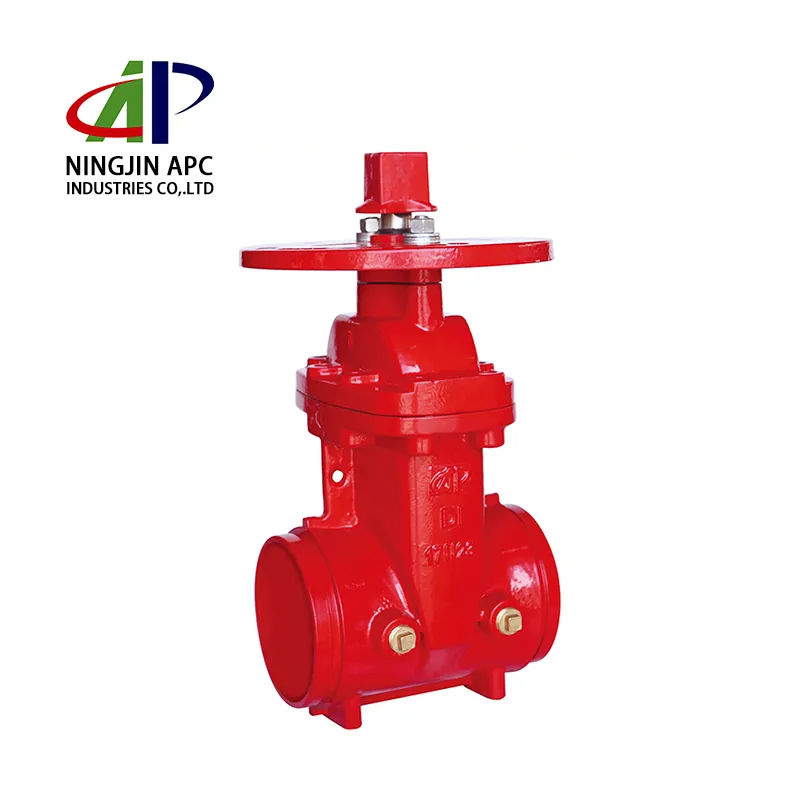

300PSI Grooved end NRS GATE VALVE WITH Post Indicator Flange UL/FM
300PSI Grooved end NRS GATE VALVE WITH Post Indicator Flange UL/FM
Resilient Seated - Grooved Ends
Technical Features
300PSI Grooved end NRS GATE VALVE WITH Post Indicator Flange UL/FMResilient Seated - Grooved Ends
Technical Features
- Connections: Metric or AWWA C606
- Normal Pressure: 175psi, 200psi, 250psi, 300psi
- Sizes: 2½", 3", 4", 5",6", 8", 10", 12"
- Approvals: UL, ULC, FM
- Maximum Working Pressure: 300 PSI (Maximum Testing Pressure: 600 PSI)
- Maximum Working Temperature: 0°C to 80°C
- With & without Post Flange are available .
| Component | Material | Specification |
| Body | Ductile Iron | A536 65-45-12 |
| Wedge | Ductile Iron, EPDM Encapsulated | |
| Wedge Nut | Stainless Steel | AISI 304 |
| Stem | Stainless Steel | AISI 420 |
| Bonnet | Ductile Iron | A536 65-45-12 |
| Gasket | Rubber | EPDM |
| Packing | Graphite | Commercial |
| Gland | Ductile Iron | A536 65-45-12 |
| Yoke Nut | Bronze | B62 C83600 |
| Handwheel | Ductile Iron | A536 65-45-12 |
| Handwheel Nut | Ductile Iron | A536 65-45-12 |
| NPT Plug | Melleable Iron | Commercial |
| Gland Bolt | Stainless Steel | AISI 316 |
| Bonnet Bolt | Carbon Steel | A307 B |
