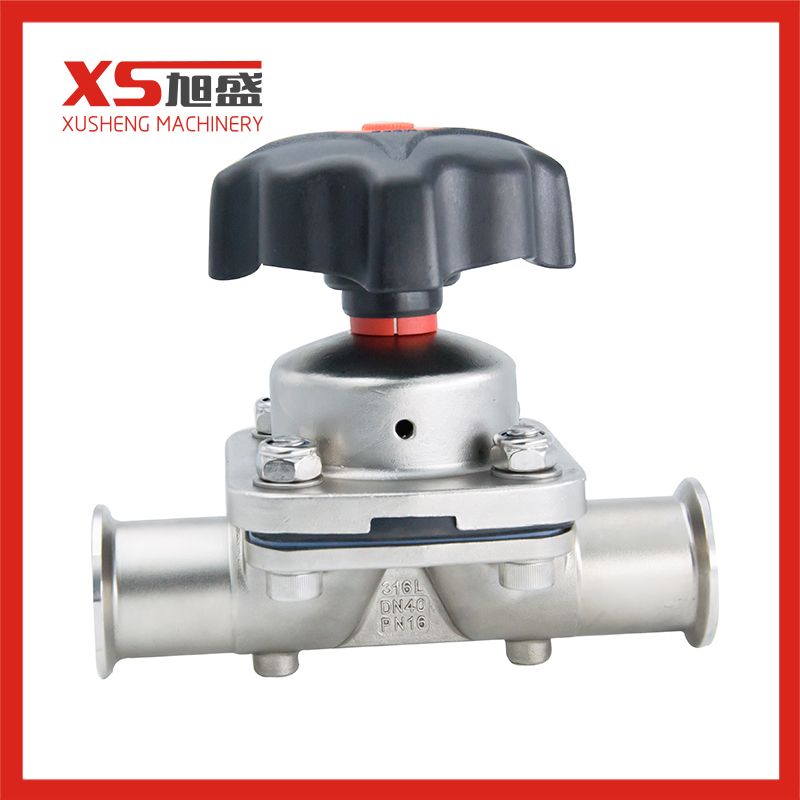

Stainless Steel SS304/SS316L Manual Clamped Diaphragm Valve
Sanitary Stainless Steel Diaphragm ValveSanitary Diaphragm-Valve Stainless Steel Sanitary Diaphragm-Valve Sanitary Stainless Steel Diaphragm-Valve Product DescriptionWork principle:The diaphragm is close under normal state, and that moment the diaphragm clung tho the valve body cavity, and closing o......
Send Inquiry
Product Description
Sanitary Stainless Steel Diaphragm Valve
Sanitary Diaphragm-Valve
Stainless Steel Sanitary Diaphragm-Valve
Sanitary Stainless Steel Diaphragm-Valve
Work principle:
The diaphragm is close under normal state, and that moment the diaphragm clung tho the valve body cavity, and closing off the flow path through the pipeline. When the diaphragm valve have the requirment to clean or open. The valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally nemd upwards, so that the valve is open and reach the requirement of clean and open. The diaphragm make the lower body cavity and the upper chamber separted from the valve cover, so that the stem at the top of the diaphragm, disc media and other parts from corrsion, eliminating the need for packing structure, and no media leaks, the optimize valve body made the cleaning liquid flow out totally, so that don't have any entrapment.
Safety, reliability and durability of diaphragm valves are heavily dependent upon performance of the diaphragm. Diaphragm is the soul of diaphragm valve.
PTFE/E PDM two-piece diaphragm is a high-standard diaphragm typically used for aseptic and hygienic applications. PTFE diaphragms are developed and manufactured by ESG. High quality raw materials sourced globally are manufactured into highly dense, smooth and flexible diaphragm products. Our diaphragms are SIP-capable and autoclavable thanks to its superb high-temperature performance. We have tested our diaphragms through accredited institutions and obtained FDA 21CFR 177.1550 and USP4 0-NF25 certifications, which correspond to the highest standards in food, beverage and pharmaceutical industries.
Application:
RG diaphram valve is a series of sanitary diapgram valve, it is widely used on wine, dairy products, beverage, foodstuff industry, pharmacy etc. Achieving the requirement of control and open/close for the pipeline system.
Techncal Date:
| Valve Body Material | SS316L |
| Availably standard | 3A/BPE/DIN/ISO/IDF/SMS |
| Availably size | 1"-3",DN20-DN65 |
| Seal Material | PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON) |
| Availably connection | Clamp/weld/thread/special connection |
| Operated | Manual,Pneumatic |
| Max. Working Pressure | 10Bar |
| Availably structure | Straight, tee, U-type, tank bottom |
| Max. Working Temperature | 120 degree C |
| Application scope | Dairy,food, beverage, pharmacy, cosmetic, etc |
Features
Available in dead weight or spring loaded design
Fast acting, quick opening
Gas tight design
Choice of materials as per the fluid medium.
Economically priced
when the valve is normally closed and there is vacuum in the tank, the vacuum piston inside the valve opens
automatically and draws air into the tank. In return, this keeps the pressure inside and outside the tank balanced.
From the Pressure side, when the valve is normally closed and the tank pressure exceeds the rated pressure
on the outside of the valve, the valve automatically opens and vents air to atmosphere.
About Us:
Wenzhou Compass Machinery Co.,Ltd is one of the manufactures which are capable of producing high precision stainless steel sanitary equipment and pipeline connection parts.We are a modern enterprise which integrates scientific research and production.
Compass can provide a variety of products,such as sample valve,divert valve, mix proof valve,pressure relief valve, manual and pneumatic butterfly valve, check valve, diaphragm valve , ball valve, pipe fitting, manhole cover, pump, tube/pipe and other related products. All products can be made according to different materials and industrial standard, such as SMS, DIN, ISO, RJT, DF, BS, DS and BPE.
Our products are widely applied to dairy, food, beer, beverage, chemical industrial of equipment, and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.
Provide process design,machinery manufacturing ,installation,technical training.
Compass applies the most advanced CNC machine from Japan for processing,cutting machines, automatic equipment,complete inspection equipment,excellent quality control system, an after-sale service center and strong production capacity. It makes each products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.
We persist in the principle of "Quality First,Customer Satisfaction" and will create more excellent liquid fittings to meet customers' requirement by full passion and first-class service.Moreover,we can also design according to your drawing and samples.
We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits,we welcome worldwide friends to give us more supports and suggestions!!
| HOW DO WE MAKE THE QUALITY CONTROL | |
| For Raw Materials | 1. Material control from raw materials. For raw material checking, we check 100% by chemical liquid. Any property mistakes would be rejected. 2. Sand hole inspection after raw materials are machining before polishing. 3. Carbon component report can be provided if needed 4. Mechanics test report can be provided if needed |
| For New products | 5. 2nos of new samples to be checked against technical drawing. Testing report is provided to customers before bulk production. |
For finished materials | 6. For valves, pressure testing and temperature testing is required for each valve. 7. After we get the finished products, we check for surface roughness, thickness equality, roundness, size measurement and sand holes again. 8. For all finished products, the checking quantity is not less than 10% of total quantity. 9. Before shipment, we check for the quantity of each product in order to find out any missing quantity or wrong product. |
