Product Description

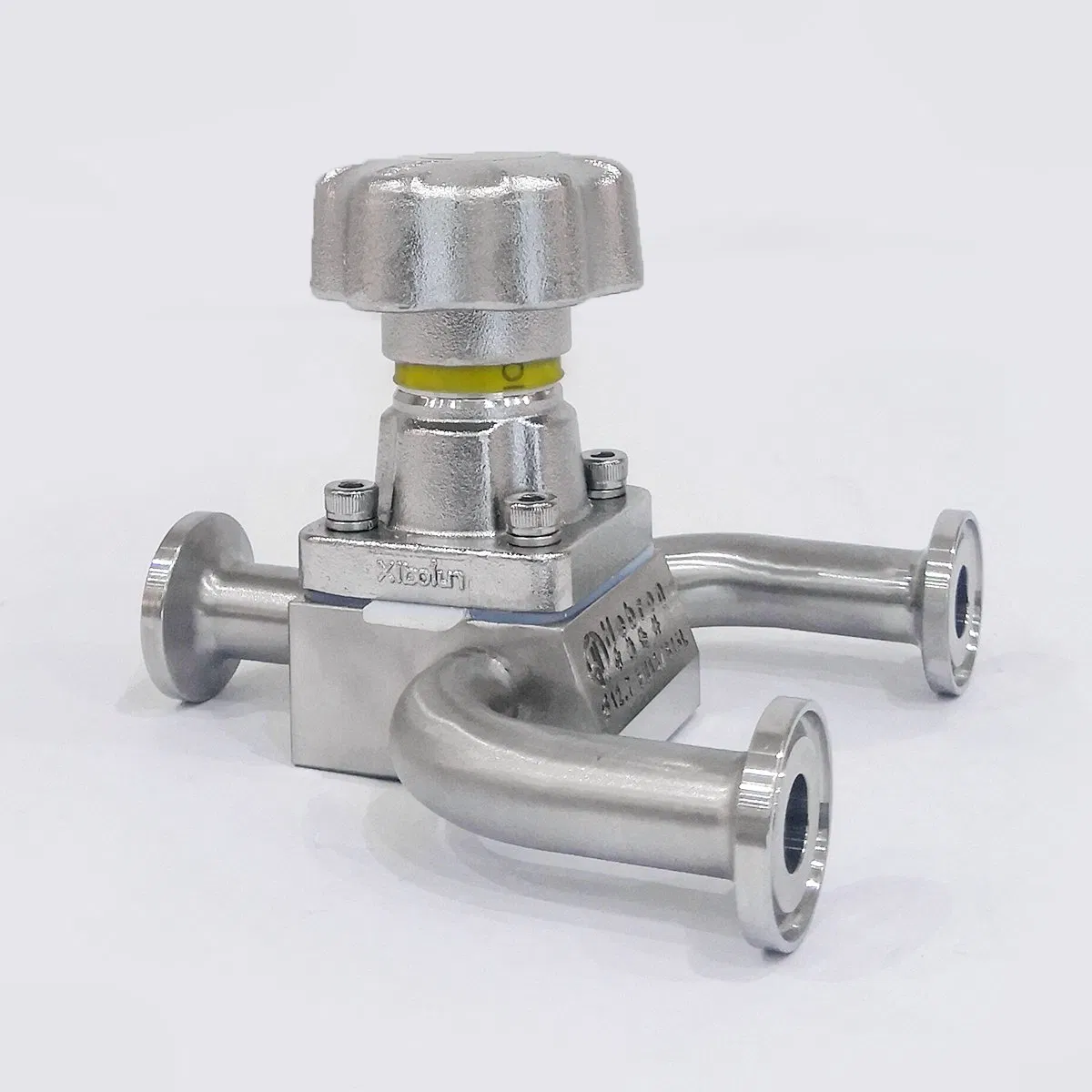

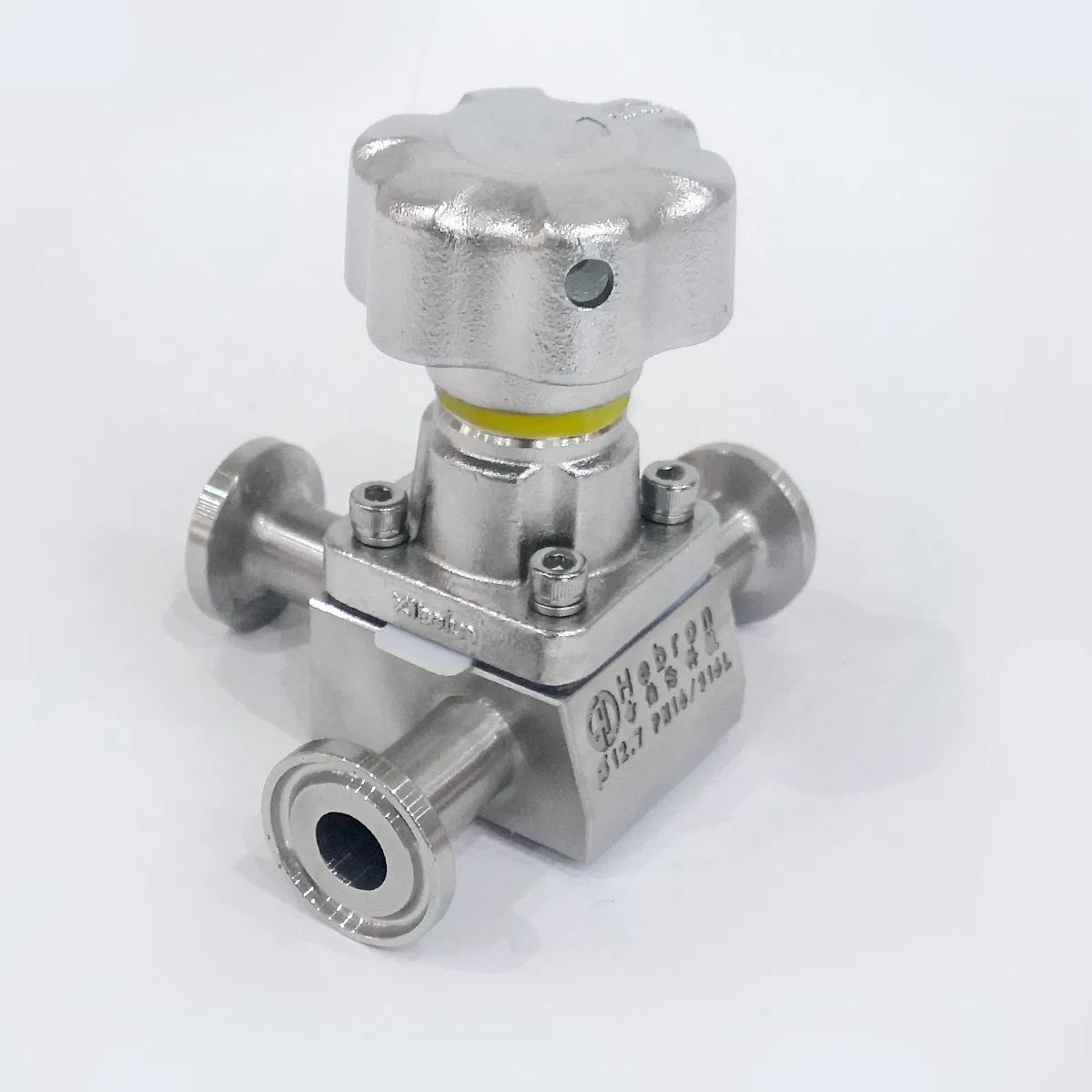

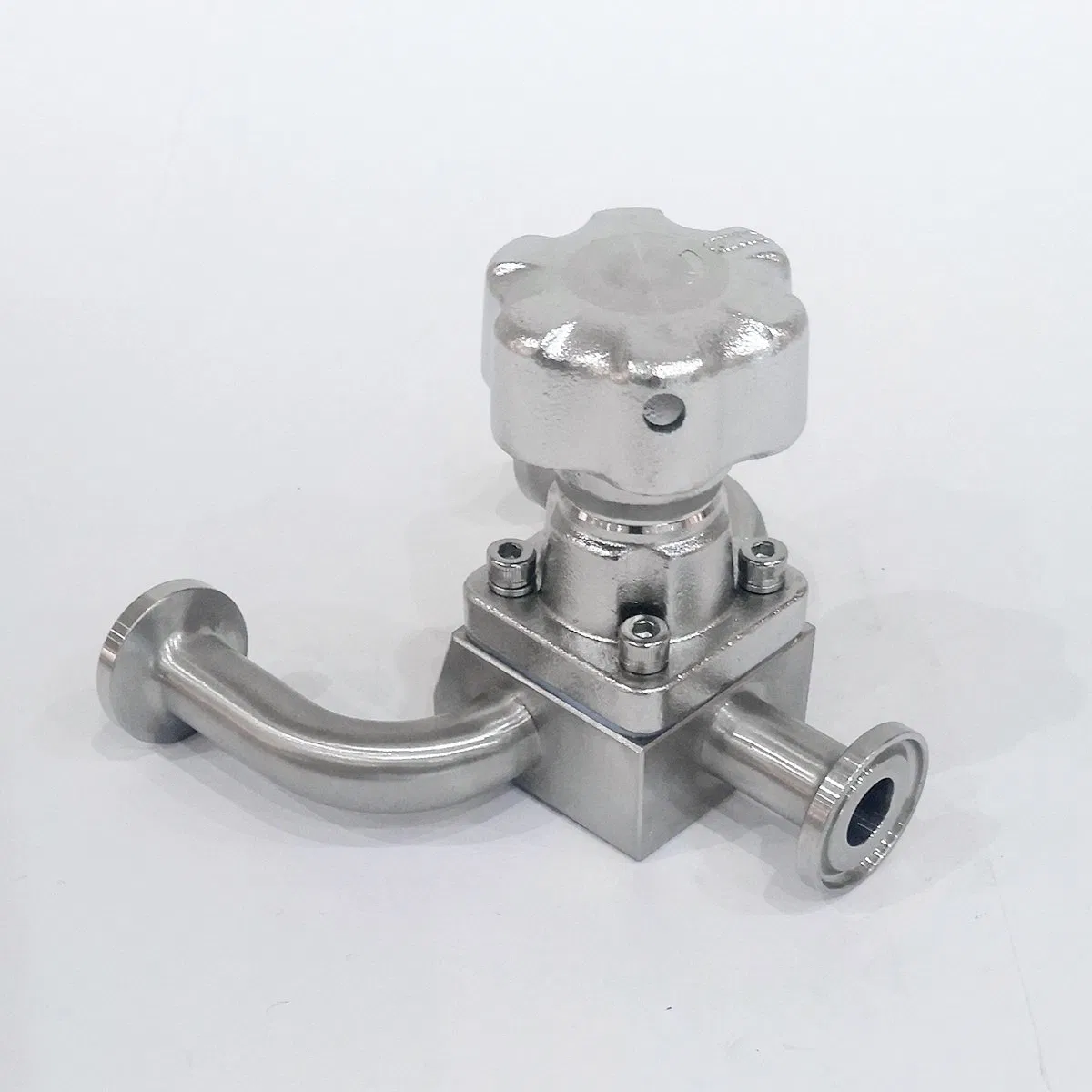

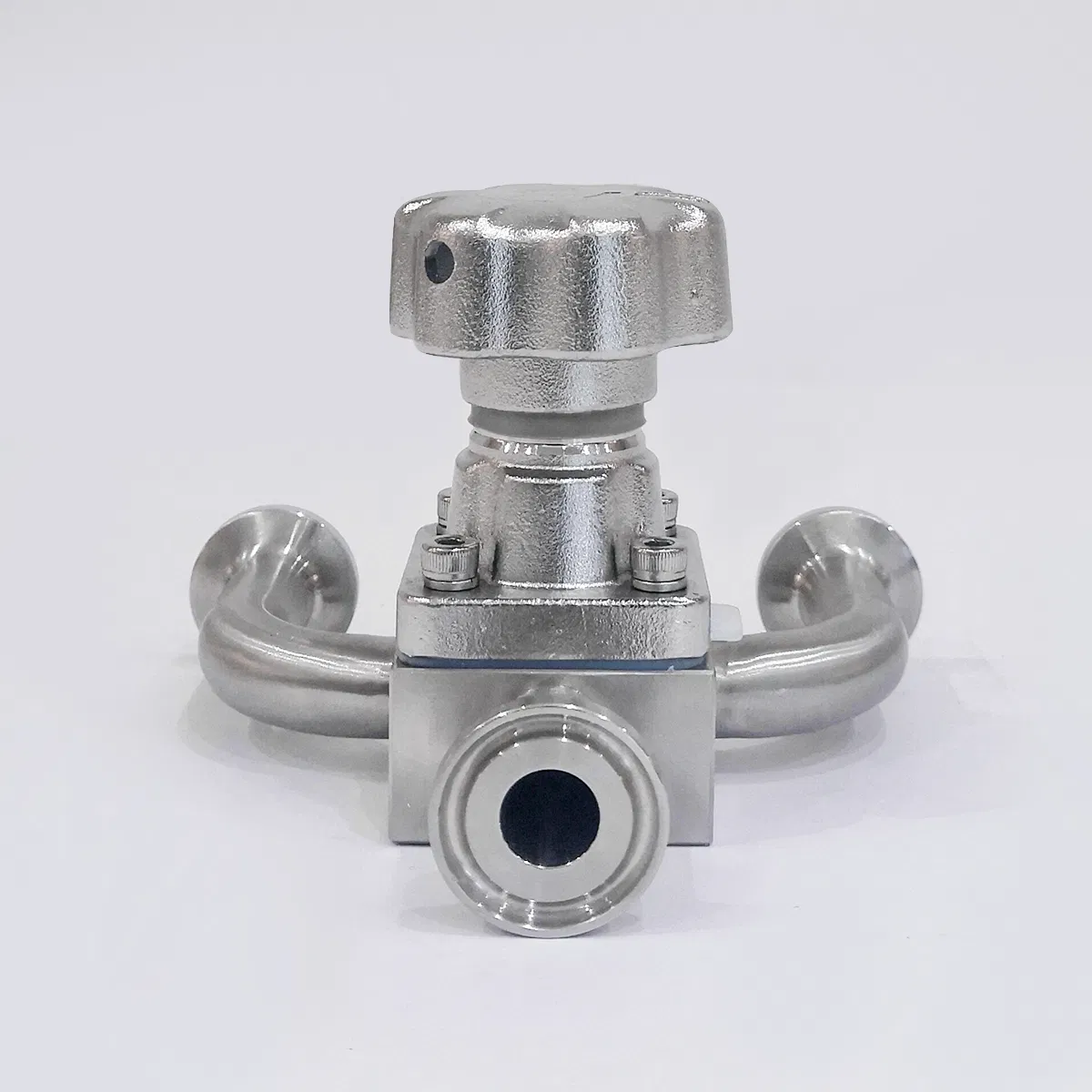

Sanitary Stainless Steel Manual Clamped Control Diaphragm Valve

The products are widely used in the fields of biopharming, biological vaccines, electronic semiconductor, water purification, food and beverage, dairy products, etc.

SPECIFICATION:

Item:	Sanitary Stainless Steel Manual Clamped Control Diaphragm Valve
Material of valve body:	SS316L, SS304
Seal material:	EPDM+PTFE, EPDM
Size:	1/4"-3"
Max. temperature:	-30~150 degree centigrade (up to diaphragm gasket)
Max. pressure:	Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR) Optional→ NC: EPDM (8BAR), PTFE (6BAR) Optional→ NO/AA: EPDM (8BAR), PTFE (6BAR)
Casting valve body:	1.4404/316L
Forging valve body:	1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5%
Connection way:	Welded, clamped, flanged, threaded
Optional operaton:	By pneumatic actuator, electric actuator, control unit, positioner etc.
Optional flow port:	2 way, 3 way, multi-port
Application:	Dairy, food, beverage, pharmacy, cosmetic etc
Certification:	3A, CE, ISO, FDA, USP Class VI
Standard:	3A/BPE/DIN/ISO/IDF
Packing details:	With bubble pack for each valve. Outside packing is by carton or plywood case. Or be custom-made.
