Different Types of Ball Valves

This blog post will provide an insightful overview of different types of ball valves used in industrial settings. The article will focus on educating valve distributors, wholesalers, engineering companies, EPC contractors, and industrial equipment company personnel about the various types of ball valves available in the market.

Table of Contents

• What Are Ball Valves
• Importance Of Choosing The Right Type Of Ball Valve
• Ball Valve Components
• Ball Valve Internal
• Uses Of Ball Valve
• What Is A Ball Valve Used For
• What Does A Ball Valve Look Like
• Force Ball Valves
• Ball Valve Purpose
• How Ball Valves Work
• Function Of Ball Valve
• Different Types Of Ball Valves
• Floating Ball Valves
• Trunnion Mounted Ball Valves
• V-Port Ball Valves
• Cavity Filled Ball Valves
• Conclusion Of Different Types Of Ball Valves
• Get An Instant Quote
• Focused On Control Valves & Self-Operated Pressure Regulators For Over 30 Years
• Get An Instant Quote

Ball valves are essential components of most industrial liquid and gas control systems. There are a wide variety of ball valves available to meet different industrial requirements, each with its unique set of features and benefits. Understanding the different types of ball valves is critical for anyone working with industrial equipment, as choosing the right type of ball valve can ensure proper function, reduce downtime, and increase the system’s overall performance.

What Are Ball Valves

Ball valves are quarter-turn valves that have a pivoting ball inside the valve body with a hole drilled through the center. The ball’s movements control whether the valve is open or closed, and when the valve is closed, the ball completely blocks fluid or gas flow through the valve. Ball valves are common components of most industrial liquid and gas control systems. They are particularly useful for applications where precise control and shutoff are necessary, as they operate quickly and are relatively easy to automate.

Importance Of Choosing The Right Type Of Ball Valve

Choosing the right type of ball valve is crucial for ensuring proper function, reducing downtime, and increasing the overall performance of industrial equipment. Within each type of ball valve, there are different variations that suit different applications. Factors that influence the type of ball valve needed for industrial applications include flow rate, pressure, temperature, corrosion resistance, and fluid or gas type. Selecting the right ball valve ensures that the valve can handle the specific application’s conditions, preventing premature valve failure or malfunction, and maintaining the efficiency of the system. Furthermore, selecting the right ball valve can have an impact on maintenance costs, system safety, and energy consumption.

Ball Valve Components

Ball valves consist of several components that work together to regulate the flow of fluid or gas through the valve. Here are the main components of ball valves:

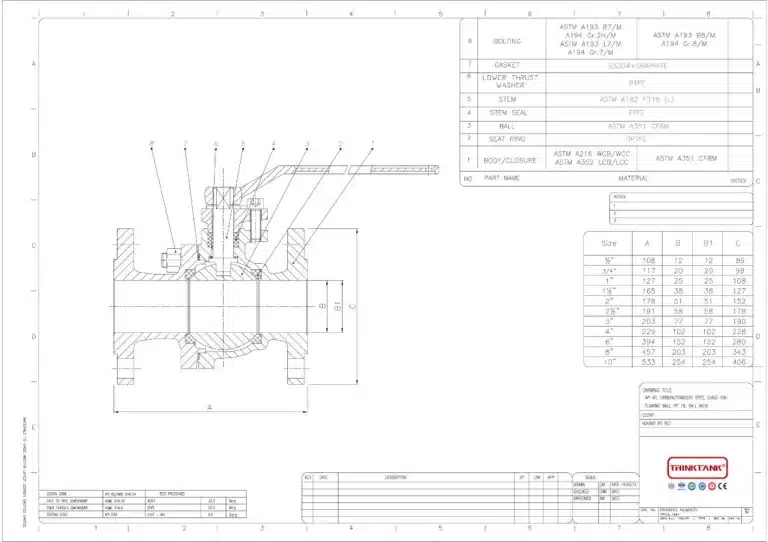

2inches ball valve drawing thinktank

• Body: a valve’s main component that valve housing the ball and stem assembly.
• Ball: a spherical-shaped component that controls the flow of fluid or gas.
• Seat: a component that provides a seal between the ball and the valve body.
• Stem: a component that connects the actuator to the ball, allowing it to rotate and regulate the flow.
• Actuator: a component that applies the force necessary to open and close the valve.
• Packing: a component that prevents the escape of fluid or gas along the stem.
• Bonnet: a component that covers the stem and contact with the actuator, protecting them from damage.
• Gland: a component that compresses the stem seal, ensuring a tight seal and preventing leaks.
• Stem nut: a component that secures the stem to the actuator, ensuring proper operation.

Ball Valve Internal

Ball valve internals refers to the components inside the valve that control, and shut off the flow of fluid or gas. The main internal components of a ball valve include the ball, seat, packing, stem, gasket, and sealings.

Uses Of Ball Valve

Ball valves can be used in a wide range of industrial applications due to their high precision flow control and shut-off, low maintenance, and high durability. Some common uses of ball valves include:

Oil And Gas Industry

Ball valves are commonly used in the oil and gas industry for applications such as wellheads, pipelines, and storage tanks.

Chemical Processing Industry

Ball valves are frequently used to regulate the flow of chemicals, acids, and other corrosive materials in chemical processing facilities.

Water And Wastewater Management

Ball valves are commonly used to manage the flow of water and wastewater in treatment plants, distribution systems, and other water storage facilities.

HVAC Systems

Ball valves are often used in heating, ventilation, and air conditioning (HVAC) systems to regulate the flow of hot water or chilled water.

Agriculture

Ball valves are commonly used in irrigation systems to control the flow of water.

Marine Industry

Ball valves are widely used in the marine industry for applications such as seawater intake and discharge lines, ballast systems, and fire suppression systems.

Pharmaceuticals And Food Processing

Ball valves are used in pharmaceutical and food processing applications where cleanliness is critical, due to their ease of cleaning and their ability to avoid contamination.

Overall, ball valves are versatile and can be used in a wide range of industries and applications where high-precision flow control and shut-off, low maintenance, and high durability are required.

Force Ball Valves

There are several factors that can affect the torque force required to operate a ball valve, including:

Valve Size

The larger bore diameter of the valve, the more torque force required to operate it. This is because the ball and stem assembly in larger valves are heavier and require more force to rotate.

Pressure And Temperature

The higher the pressure or temperature of the fluid or gas flowing through the valve, the more torque force required to operate it. This is because the pressure and temperature increase the resistance against the ball and stem assembly.

Fluid Density

The density of the fluid flowing through the valve can also affect the torque force required to operate it. Fluids with higher densities require more force to move the ball and valve stem in assembly.

It is important to note that these values are only approximate and may vary depending on the specific factors discussed above. It is always important to refer to the manufacturer’s recommendations for the specific ball valve being used and to ensure that the valve is properly installed and maintained to ensure safe and efficient operation.

Ball Valve Purpose

The purpose of a ball valve is to regulate the flow of fluid or gas through a pipe or tubing system. It works by rotating a ball that has a hole or port in the middle, which either allows or blocks the flow of fluid or gas. Ball valves are commonly used in a wide range of industrial applications due to their high precision flow control and shut-off, low maintenance, and high durability. They are preferred in many applications due to their ability to quickly open and close, making them useful in emergency shut-off situations. Additionally, because of their design, they do not become clogged easily and can handle high temperatures and pressures. The specific use of the ball valve will depend on the industry and application, but is often used in industries such as oil and gas, chemical processing, water and wastewater management, and many others. Overall, the purpose of a ball valve is to provide efficient and precise fluid flow, control, shut-off, and regulation in various industrial settings.
